| First floor | 557 |
| Second floor | 557 |
| Total heated | 1114 |
| Width | 25' 0" |
| Depth | 40' 0" |
| Height | 25' 6" |
| Main roof pitch | 4/12 |
| Main level | 8' 0" |
| 2nd level | 9' 0" |
| Stories | 2 |
| Bedroom | 2 |
| Bathrooms | 2.5 |
| Garage spaces | 0 |
The Bellmore Duplex is designed for people who crave comfort, connection, and a place that simply feels like home. Each residence offers two beautifully planned bedrooms and 2.5 baths, wrapped in thoughtful craftsmanship and a layout that invites sunlight to pour through its generous double‑hung windows. The first floor opens into a warm, flowing living space where the kitchen, breakfast nook, and living room come together effortlessly — perfect for quiet mornings or shared evenings. Upstairs, each bedroom becomes a private retreat, complete with spacious closets and well‑appointed baths. With its charming lap‑siding exterior, standing‑seam metal roof, and a welcoming covered porch, the Bellmore blends durability with timeless curb appeal. Energy‑efficient construction, modern finishes, and a smart 1,144 sq. ft. footprint make this duplex an ideal choice for homeowners and investors seeking a place that feels intimate, inviting, and built for real life.
| Architectural Styles | Craftsman, Traditional |
| Structure type | Duplex plans |
| Bedroom Features | Two master suites |
| Kitchen Features | Peninsula eating bar |
| Additional Room Features | Great/Living room |
| Garage Features | |
| Outdoor spaces | Covered front porch |
| Lot characteristics | Suited for narrow lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

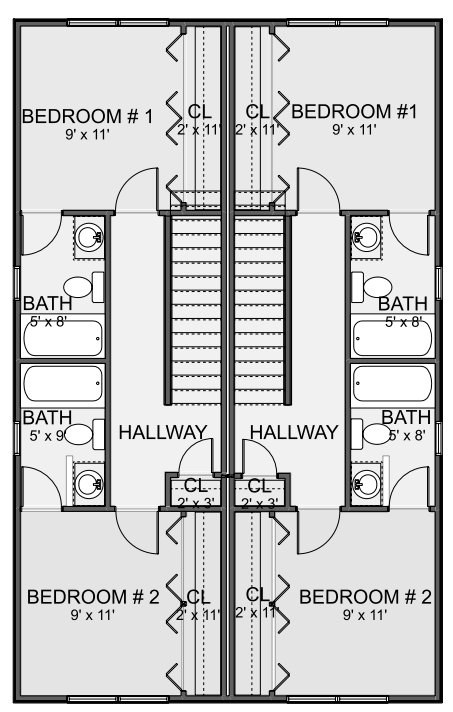

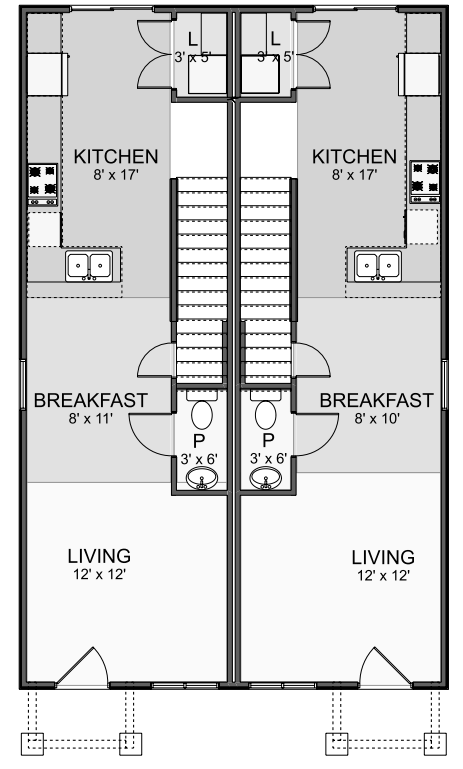

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
Advanced Drafting & Design Co.
As a Building Designer, I am first and foremost a professional familiar with all facets of the building trade, whose plans and designs represent the particular needs, style, and budget of my client. I apply functional and economical solutions to all design projects that will best fulfill your needs, while translating these factors into a concept that is both aesthetic and utilitarian.
Learn more and connect with the designer at Advanced Drafting & Design Co. Storefront
