| First floor | 1012 |
| Second floor | 1012 |
| Total heated | 2024 |
| Width | 25' 0" |
| Depth | 44' 0" |
| Height | 25' 6" |
| Main roof pitch | 4/12 |
| Main level | 9' 0" |
| 2nd level | 9' 0" |
| Stories | 2 |
| Bedroom | 2 |
| Bathrooms | 2.5 |
| Garage spaces | 0 |
Charming Traditional Duplex Plan for Narrow Lots
Designed for efficiency and style, this traditional duplex plan offers two mirror-image units, with a total of 1,144 sq. ft. across two units. At just 25 feet wide, this narrow lot design is perfect for urban infill, rental properties, or multi-generational living.
Each two-bedroom, 2.5-bathroom unit features a great room-style main floor, seamlessly connecting the living, dining, and kitchen areas for an open and inviting feel. Upstairs, both bedrooms include private bathrooms, ensuring privacy and convenience for residents.
With its functional layout, classic curb appeal, and efficient use of space, this two story duplex plan is an ideal investment for those looking to maximize rental potential or provide comfortable multi-family living.
Key Features:
✔ Traditional duplex design with classic curb appeal
✔ Narrow lot friendly at just 25’ wide
✔ 1,144 sq. ft. per unit across two stories
✔ 2 bedrooms, 2.5 bathrooms per unit
✔ Open-concept great room, dining, and kitchen
✔ Both bedrooms upstairs with private bathrooms
✔ Ideal for rental income or multi-family living
Maximize space and functionality with this efficient duplex plan, perfect for investors, developers, or families looking for flexible living options!
| Architectural Styles | Beach, Craftsman, Traditional |
| Structure type | Duplex plans |
| Bedroom Features | Split bedrooms, Two master suites |
| Kitchen Features | Peninsula eating bar |
| Additional Room Features | Great/Living room |
| Garage Features | |
| Outdoor spaces | Covered front porch |
| Lot characteristics | Suited for narrow lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

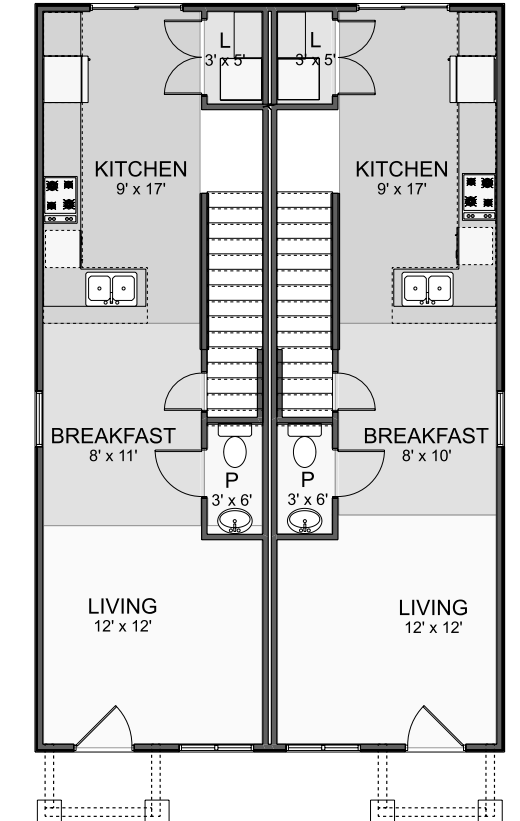

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
