| First floor | 1660 |
| Second floor | 1548 |
| Third floor | 1243 |
| Total heated | 4451 |
| Width | 19' 9" |
| Depth | 95' 3" |
| Height | 43' 1" |
| Main roof pitch | 2/12 |
| Main level | 12' 0" |
| 2nd level | 12' 0" |
| 3rd level | 12' 0" |
| Stories | 3+ |
| Bedroom | 5+ |
| Bathrooms | 4+ |
| Garage spaces | 0 |
The Hyde Park presents an innovative vertical living solution designed for narrow urban lots, maximizing every inch of its compact footprint. This thoughtfully designed three-story contemporary-style residence demonstrates how intelligent planning can create spacious, comfortable living in a remarkably slender profile.

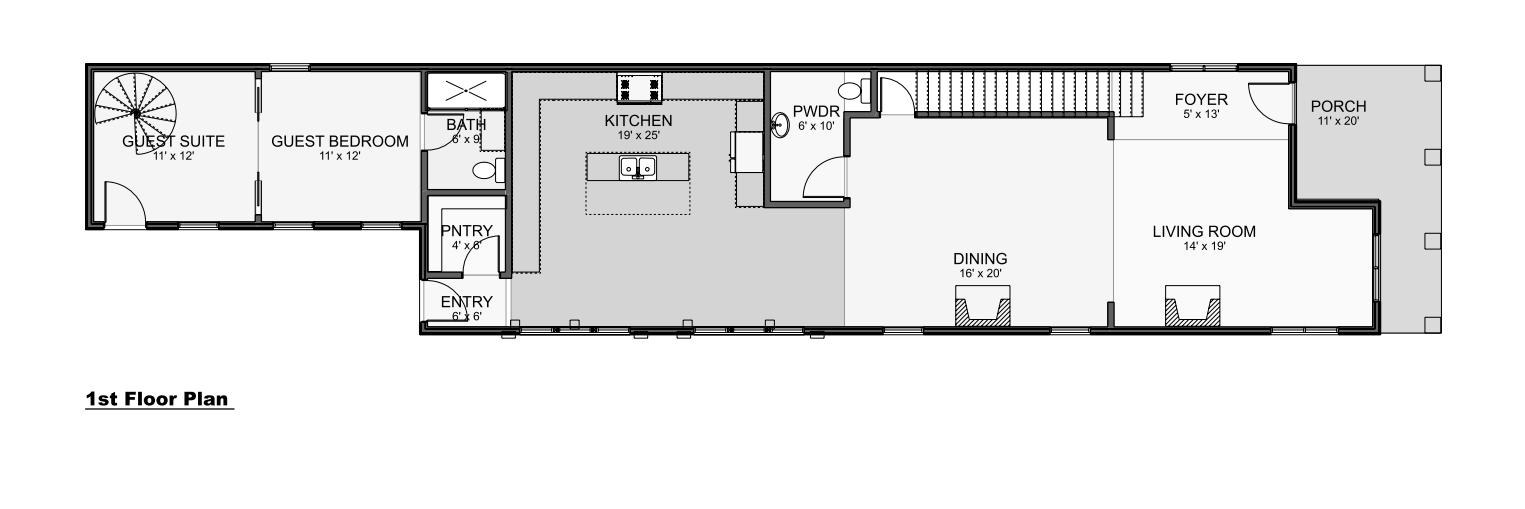

The first floor welcomes visitors through a covered porch into a generous foyer that opens to a substantial living room and adjoining dining area. The expansive kitchen anchors the main level, featuring ample counter space and flow-through access. A dedicated guest suite with spiral staircase access and private bath provides convenient first-floor accommodations, while a pantry and powder room complete the practical layout.

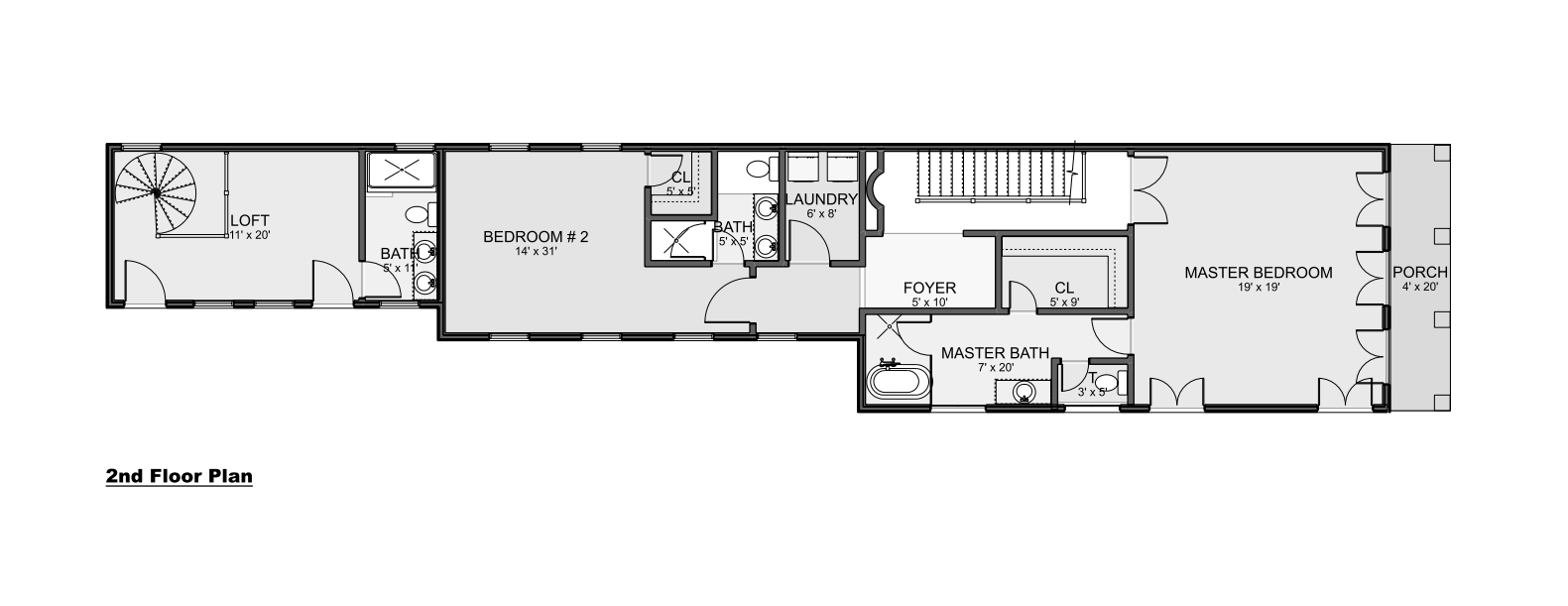

Ascending to the second floor reveals the luxurious master suite, encompassing a private porch, walk-in closet, and spa-inspired master bath. A secondary bedroom with ensuite bath and dedicated laundry facilities make this level both functional and comfortable. A loft space with spiral staircase access adds versatility, while a central foyer maintains elegant circulation between spaces.

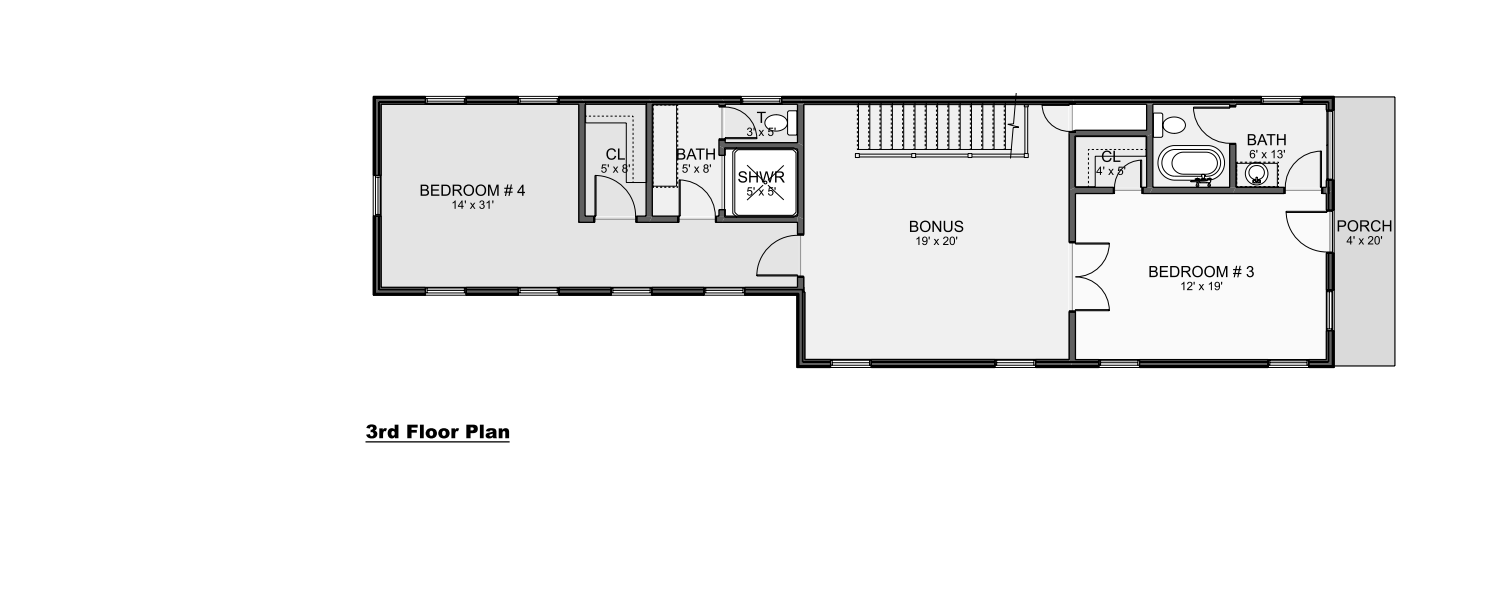

The top floor continues the home's efficient design with two additional bedrooms sharing a well-appointed bath. A versatile bonus room provides flexible space for a home office, playroom, or entertainment area, while a third porch extends the living space outdoors. This level's thoughtful arrangement ensures privacy and comfort for family members or guests.
The Hyde Park exemplifies modern narrow-lot architecture, proving that width limitations need not compromise livability. Its vertical orientation creates distinct zones for entertaining, private retreat, and family life, while multiple outdoor spaces on each level maintain connection to the surroundings. This home offers an ideal solution for maximizing urban property potential without sacrificing comfort or style.
| Architectural Styles | Modern, Southern, Craftsman, European, Traditional, Georgian |
| Structure type | Single family home |
| Bedroom Features | Guest suite, Upstairs bedrooms, Upstairs master, Walk in closet |
| Kitchen Features | Breakfast nook, Kitchen island, Walk in pantry |
| Additional Room Features | Den/Office/Study, Finished third floor, Great/Living room, Upstairs laundry |
| Garage Features | |
| Outdoor spaces | Loft balcony, Covered front porch |
| Lot characteristics | Suited for view lot, Suited for narrow lot |
