| First floor | 110 |
| Total heated | 110 |
| Width | 34' 5" |
| Depth | 45' 11" |
| Height | 10' 6" |
| Main roof pitch | 0/1 |
| Main level | 10' 6" |
| 2nd level | 0' 1" |
| Stories | 1 |
| Bedroom | 3 |
| Bathrooms | 2 |
| Garage spaces | 0 |
Introducing the AfriHomePlans Type A — a thoughtfully designed 3-bedroom family home built for real families and real budgets, wherever you are in the world.
This plan was designed with one goal in mind: a clean, buildable, beautiful home that works with local materials, local builders, and local climates. No complicated rooflines. No imported finishes. Just smart, practical design that any contractor can work with.

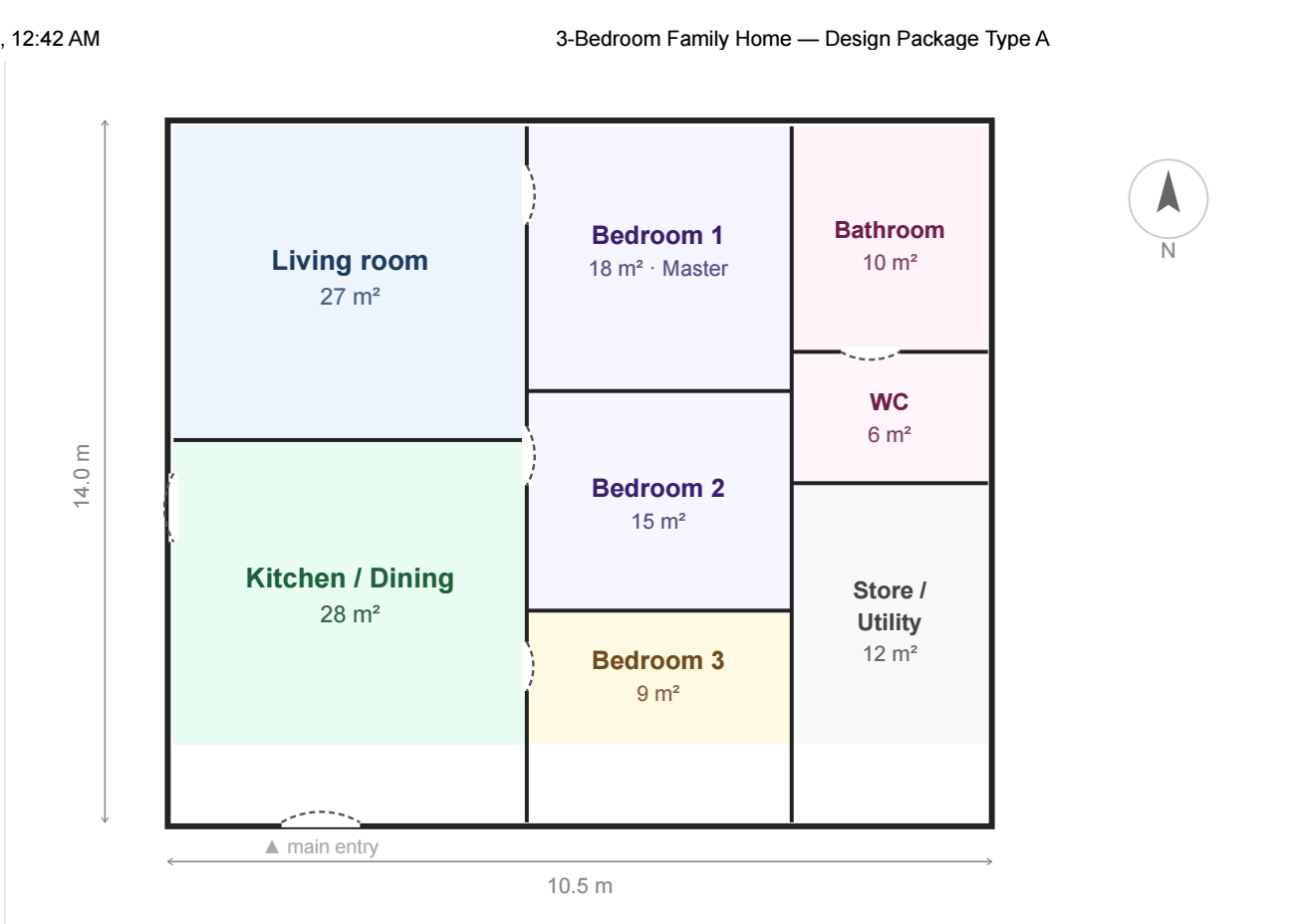

The single-storey layout puts everything on one level — three bedrooms, two bathrooms, a generous living room, open kitchen and dining area, utility room and storage. The rectangular footprint keeps construction simple and cost-effective while maximising every square metre of living space.
What makes this plan special is the two included variants. Variant A gives you a classic layout with separate living and kitchen zones — perfect for families who want defined spaces. Variant B opens everything up into one large social space with a covered verandah at the front — ideal for entertaining and outdoor living.
Large south-facing windows fill the home with natural light while the layout promotes cross-ventilation — keeping the home cool naturally without relying on air conditioning.
Whether you are building your first family home, planning from abroad, or developing a small plot — this plan gives you a professional starting point at a fraction of the cost of hiring an architect from scratch.
What you get:
Two complete floor plan variants
Front elevation drawing
Full room schedule with dimensions
Design notes and specifications
Instant digital download — ready to take to your engineer today
| Architectural Styles | Mediterranean, Contemporary, European |
| Structure type | Single family home |
| Bedroom Features | Main floor master, Walk in closet |
| Kitchen Features | Peninsula eating bar |
| Additional Room Features | Den/Office/Study, Storage area |
| Garage Features | Carport |
| Outdoor spaces | Covered front porch |
| Lot characteristics | Suited for corner lot, Suited for view lot, Suited for narrow lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
