| First floor | 801 |
| Second floor | 190 |
| Total heated | 991 |
| Width | 38' 8" |
| Depth | 45' 6" |
| Height | 23' 0" |
| Main roof pitch | 6/12 |
| Main level | 8' 0" |
| 2nd level | 8' 0" |
| Stories | 1.5 |
| Bedroom | 2 |
| Bathrooms | 1 |
| Garage spaces | 1 |
Lovely casita, ADU, small to tiny home with main shed roof. High sloping living and kitchen ceiling w/ bedroom loft and carport. Can be modified per homeowner needs.
| Architectural Styles | Contemporary, Split level, Traditional, Farmhouse |
| Structure type | Accessory structures, Tiny house |
| Bedroom Features | Upstairs bedrooms, Main floor master, Walk in closet |
| Kitchen Features | Breakfast nook |
| Additional Room Features | Main floor laundry |
| Garage Features | Carport |
| Outdoor spaces | Covered rear porch |
| Lot characteristics | Suited for narrow lot |

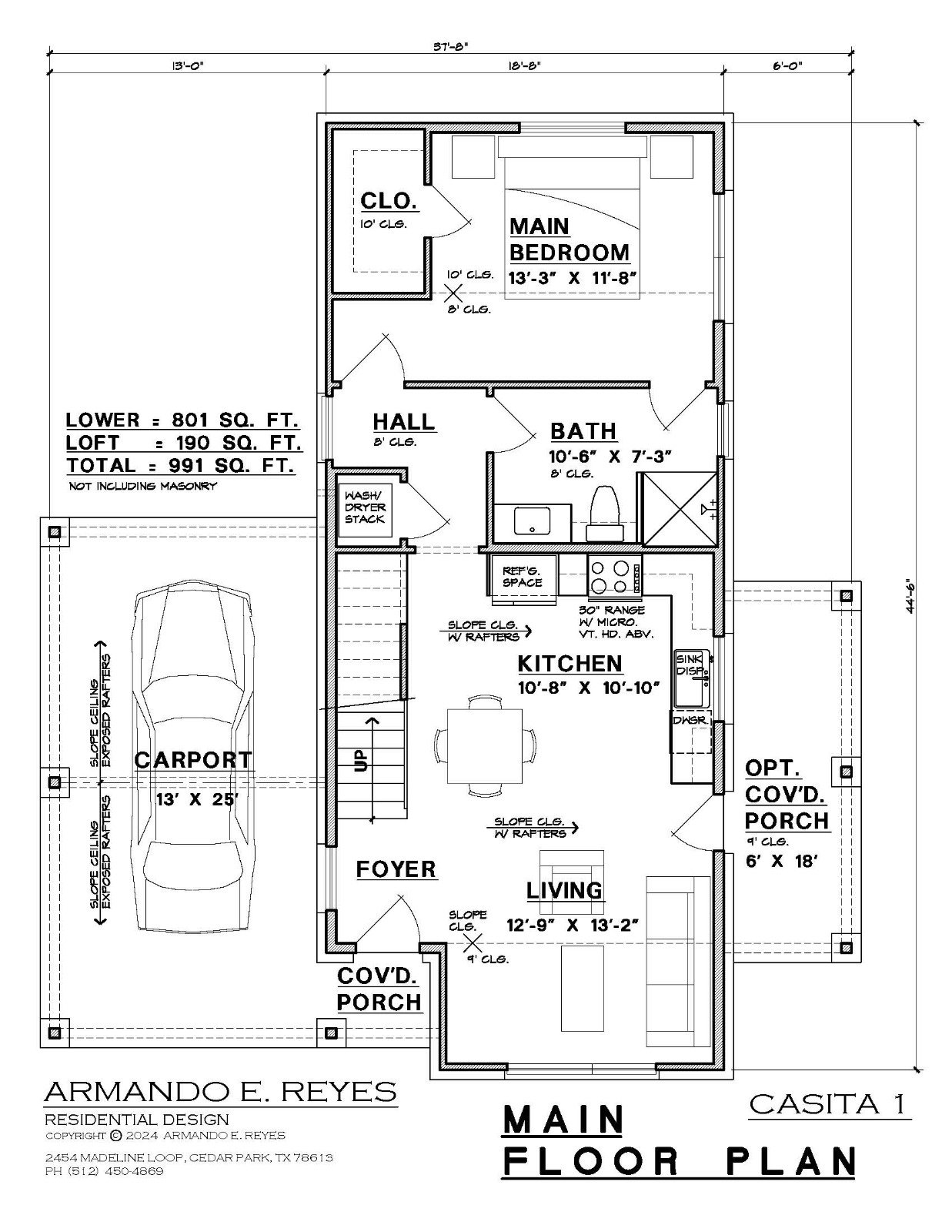

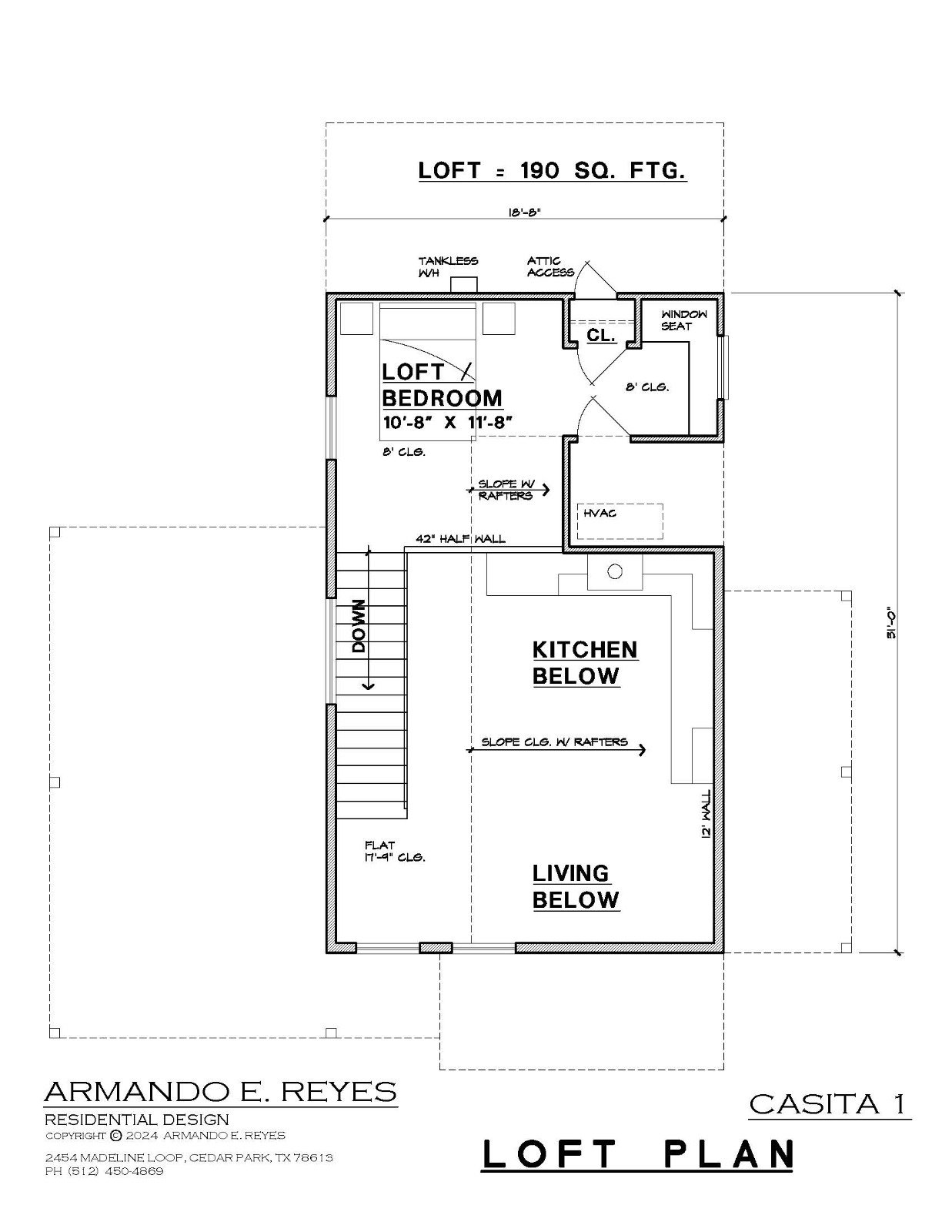

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Electrical plans
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Armando Reyes Home Design
35 years of home design experience.
Learn more and connect with the designer at Armando Reyes Home Design Storefront
