| First floor | 3150 |
| Total heated | 3150 |
| Garage | 918 |
| Width | 118' 6" |
| Depth | 73' 0" |
| Main roof pitch | 7/12 |
| ADU Living | 12' 1" |
| ADU Bedroom | 11' 4" |
| Living/Kitchen | 16' 8" |
| Guest Bedrooms | 11' 0" |
| Primary Bedroom | 14' 3" |
| Stories | 1 |
| Bedroom | 4 |
| Bathrooms | 3.5 |
| Garage spaces | 3 |
Ranch House with ADU
This beautiful home is designed with an attached ADU, or as an extension of the primary home to be used as an extra bedroom with media room. The primary part of the home is designed with 3 bedrooms, an office space and expansive kitchen and living area. The large windows will elevate any view and bring in lots of natural light. There is also a third bay of the garage for indoor RV parking. Welcome home!
| Architectural Styles | Log mountain, Cabin, Modern, Ranch |
| Structure type | Single family home |
| Bedroom Features | In law suite, Main floor master, Walk in closet, Main floor guestroom, Two master suites |
| Kitchen Features | Kitchen island, Kitchenette wet bar |
| Additional Room Features | Den/Office/Study, Storage area, Great/Living room, Wet bar, Main floor laundry |
| Garage Features | Rv garage |
| Outdoor spaces | Covered front porch, Covered rear porch |
| Lot characteristics | Suited for view lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

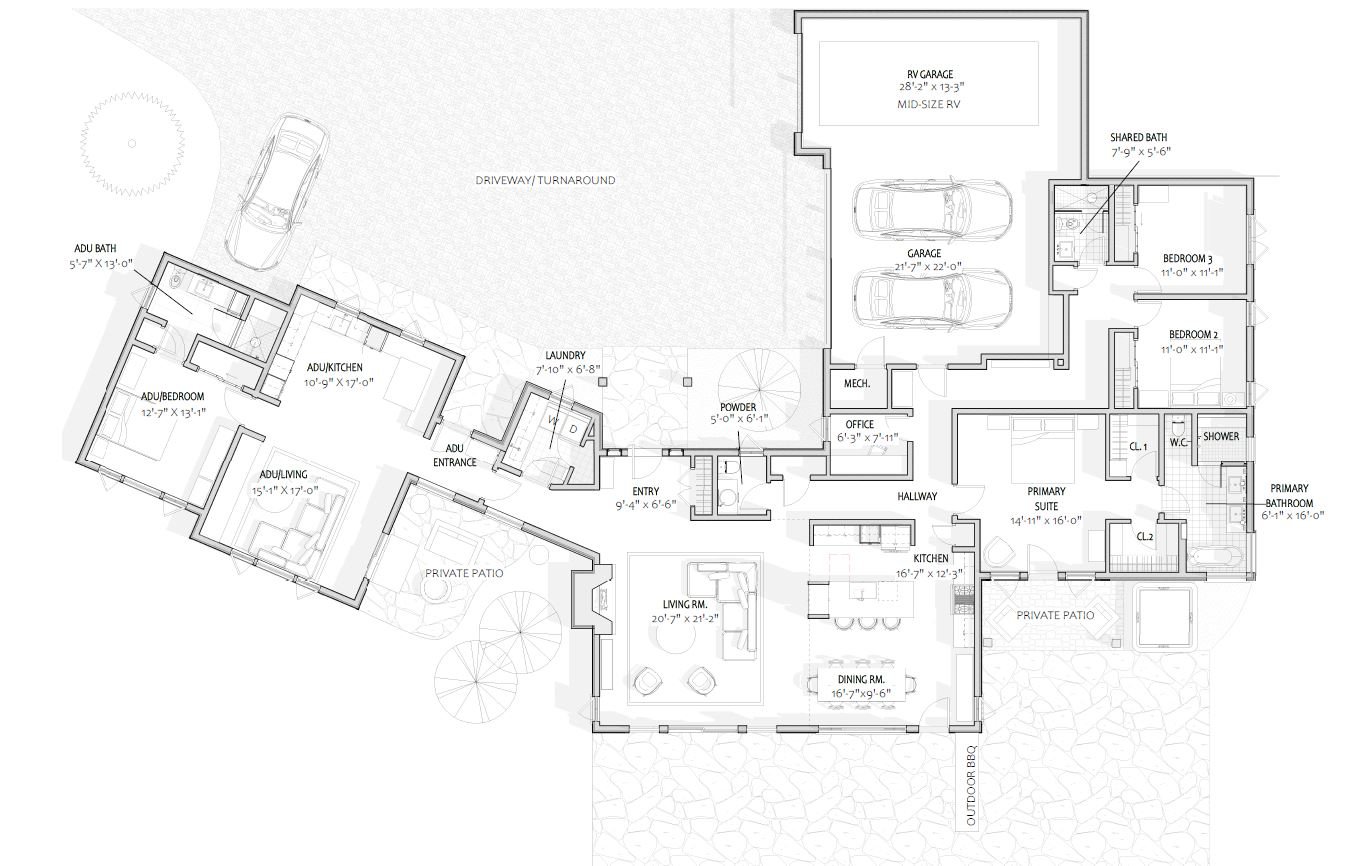

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
Olaf Jean Architecture
I'm Cassondra Westerlind, Founder and Principal Architect of OLAF JEAN Architecture. With over a decade of experience in high-end, custom residential design, I'm passionate about making luxury design more accessible. Our designs embody timelessness through their materials and connection to nature, whether you're envisioning a mountain home, a beach house, or a modern farmhouse. We hope you find your perfect place to call home.
Learn more and connect with the designer at Olaf Jean Architecture Storefront
