| First floor | 4533 |
| Total heated | 4533 |
| Garage | 965 |
| Width | 78' 5" |
| Depth | 75' 11" |
| Height | 29' 0" |
| Main roof pitch | 8/12 |
| Main level | 10' 0" |
| Stories | 1 |
| Bedroom | 4 |
| Bathrooms | 4+ |
| Garage spaces | 3 |
Featuring not only one but two master bedrooms, patio kitchen, game room and expansive cabinetry design, this spacious floorplan brings together a craftsmanesque style approach with rusticism that blends together a warm, open atmosphere with natural materials to emphasize warmth.
| Architectural Styles | Ranch, Country, Craftsman |
| Structure type | Garage and workshop, Single family home, Multi family |
| Bedroom Features | Split bedrooms, Guest suite, Main floor master, Walk in closet, Main floor guestroom, Two master suites |
| Kitchen Features | Kitchen island, Butlers pantry, Peninsula eating bar, Kitchenette wet bar, Walk in pantry |
| Additional Room Features | Den/Office/Study, Media room, Mud room, Storage area, Great/Living room, Hobby/Rec room, Main floor laundry |
| Garage Features | Side entry, Oversized |
| Outdoor spaces | Outdoor kitchen, Covered front porch, Covered rear porch |
| Lot characteristics | Suited for corner lot, Suited for view lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

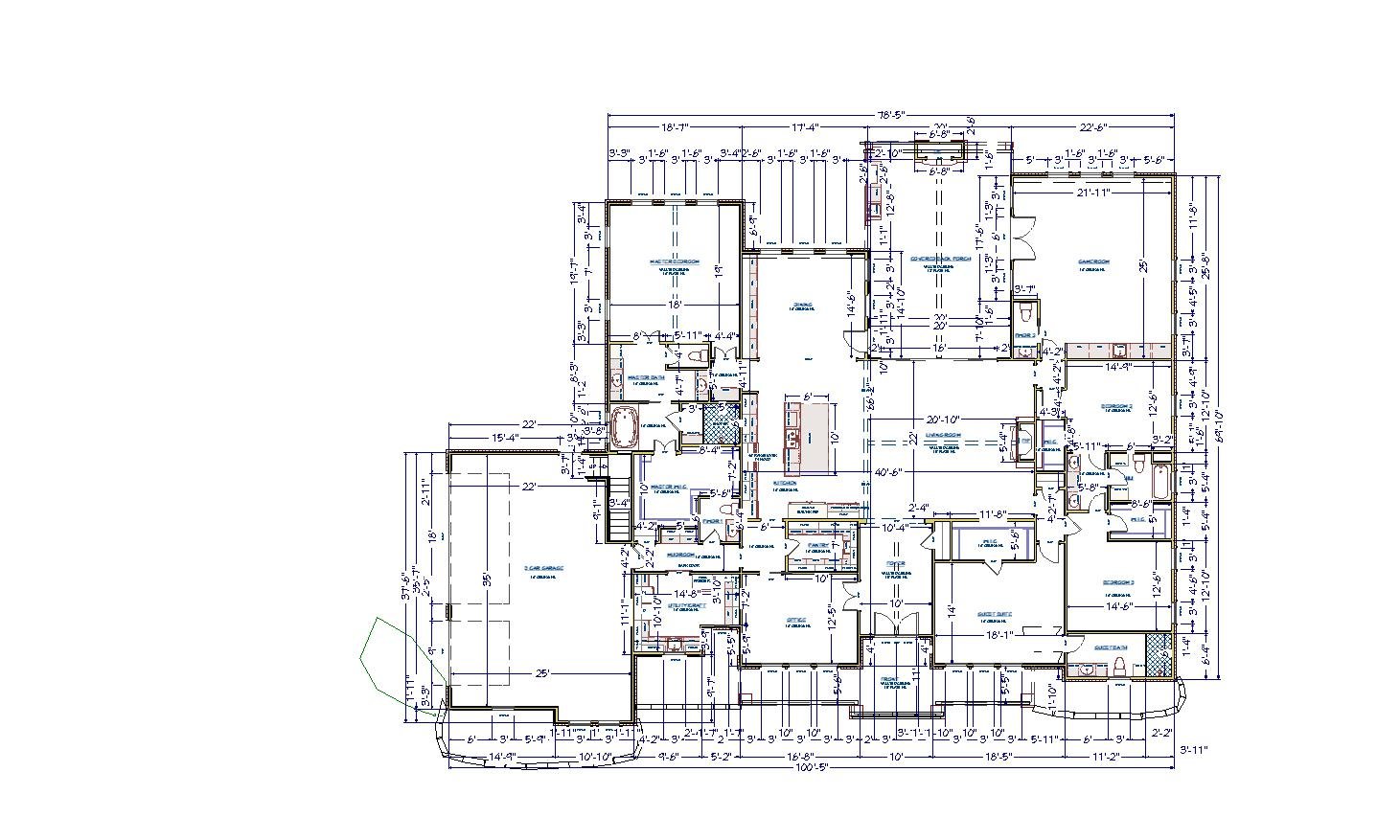

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
Collins Custom Home Design
Our home design blueprints are the foundation of turning vision into reality. Each plan is crafted with precision, balancing beauty, functionality, and structural integrity. Designed to maximize light, space, and efficiency, they provide a clear roadmap for builders while anticipating future needs. More than drawings, they are the first step toward creating a lasting home that reflects your values and stands the test of time.
Learn more and connect with the designer at Collins Custom Home Design Storefront
Like this plan? Check out another
1 plans by Collins Custom Home Design
On Collins Custom Home Design Storefront you can view all their latest house plans, chat and get to know the designer.
