| First floor | 3080 |
| Second floor | 560 |
| Total heated | 3640 |
| Garage | 776 |
| Width | 74' 7" |
| Depth | 65' 1" |
| Height | 29' 10" |
| Main roof pitch | 12/12 |
| Main level | 10' 0" |
| 2nd level | 8' 0" |
| Great Room | 12' 0" |
| Kitchen | 12' 0" |
| Stories | 1.5 |
| Bedroom | 4 |
| Bathrooms | 4+ |
| Garage spaces | 2 |
| Architectural Styles | Ranch, Country, Southern, Craftsman, Farmhouse |
| Structure type | Single family home, Multi family |
| Bedroom Features | Guest suite, Upstairs bedrooms, Main floor master, Walk in closet |
| Kitchen Features | Kitchen island, Peninsula eating bar, Walk in pantry, Country kitchen |
| Additional Room Features | Den/Office/Study, Media room, Mud room, Storage area, Great/Living room, Unfinished space, Hobby/Rec room, Main floor laundry, Master sitting area |
| Garage Features | Rear entry, Side entry, Oversized, Tandem |
| Outdoor spaces | Covered front porch, Covered rear porch |
| Lot characteristics | Suited for view lot, Suited for sloping lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)

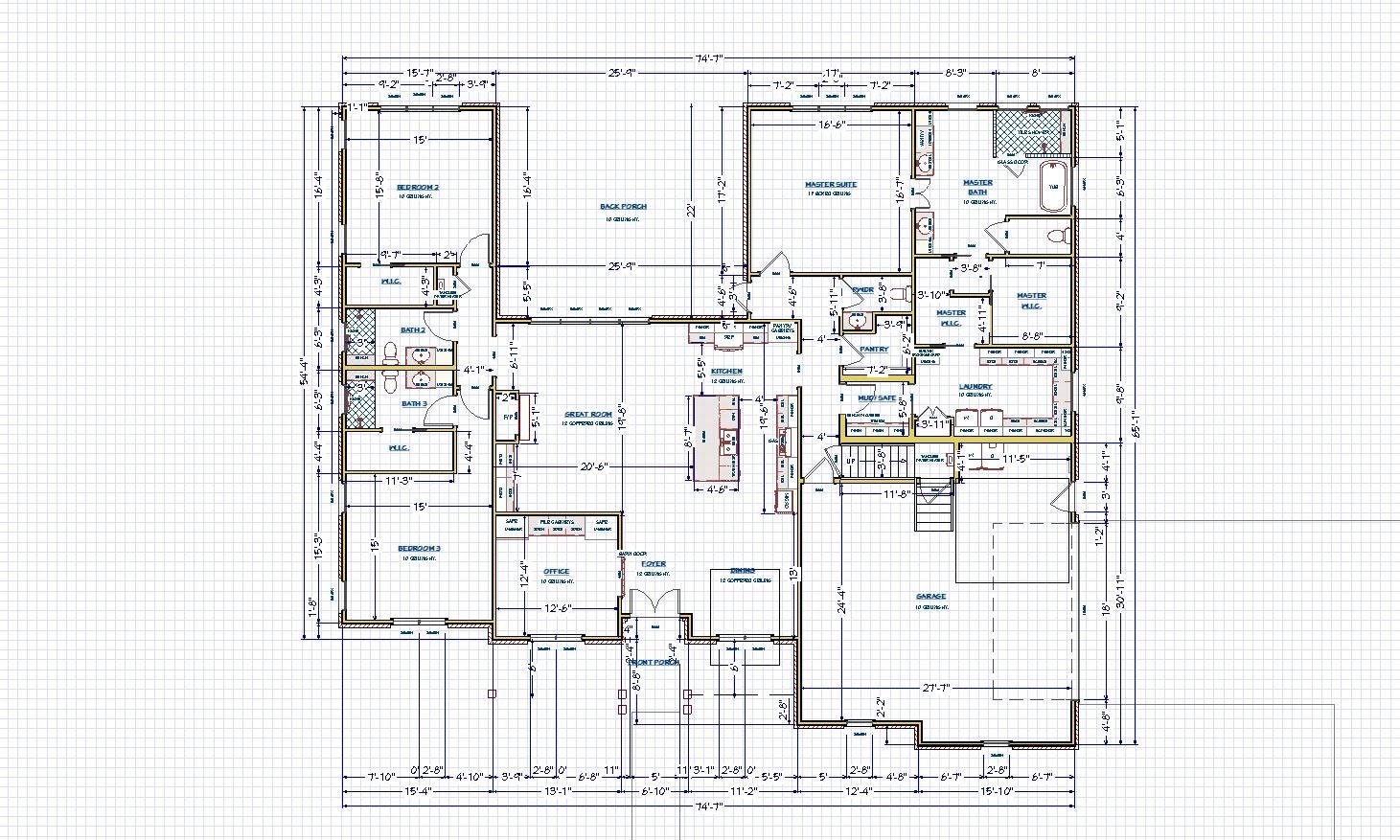

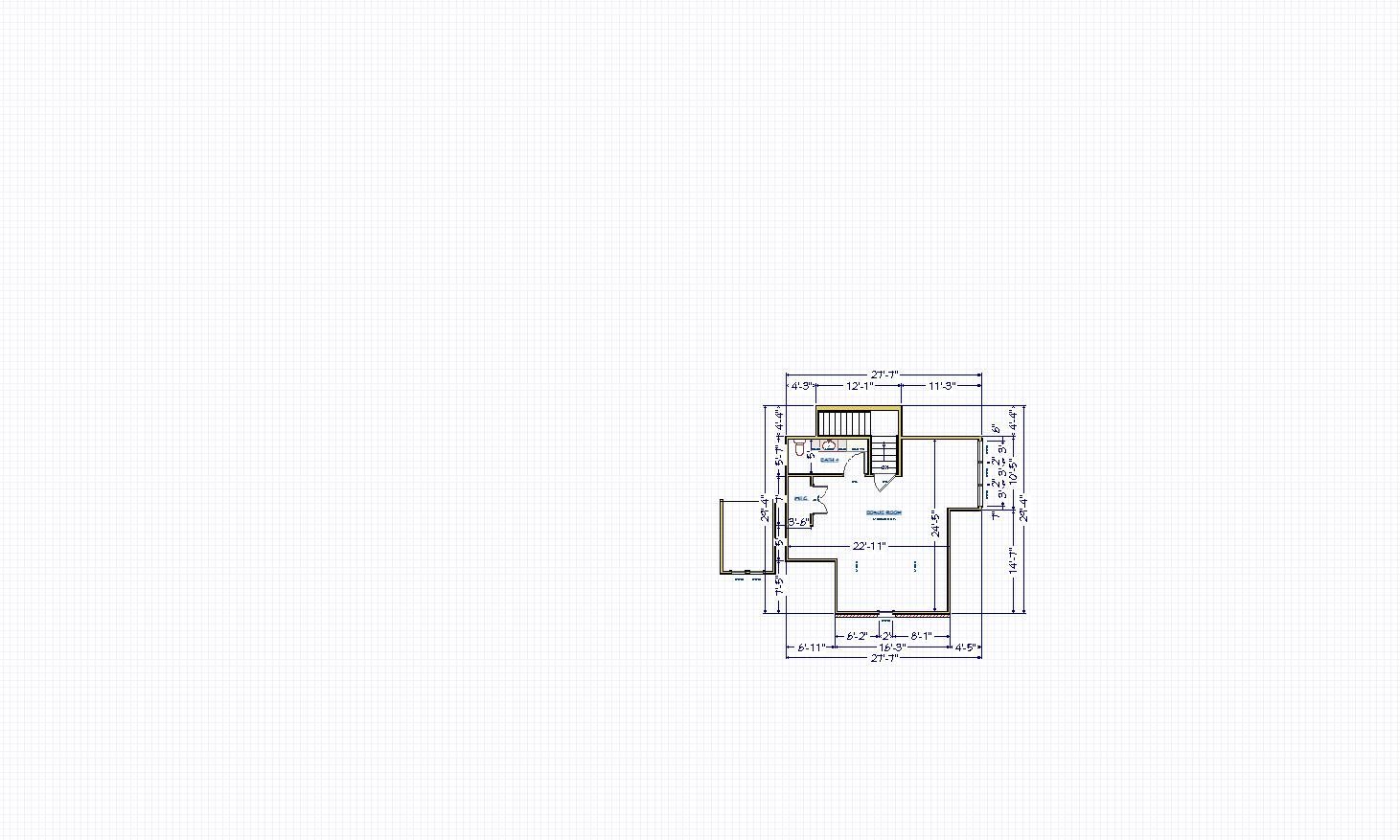

Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
