| First floor | 3051 |
| Total heated | 3051 |
| Garage | 891 |
| Width | 133' 9" |
| Depth | 92' 7" |
| Height | 16' 7" |
| Main level | 11' 6" |
| Stories | 1 |
| Bedroom | 4 |
| Bathrooms | 4+ |
| Garage spaces | 1 |
Project Type:
Single Family One (1) Story U Shaped House (4 Bedroom 5 Bathroom).
Lot Size:
Area - 19,734 ft2 (1,833 m2). House Size: Area - 5,405 ft2 (502 m2)
Building Type:
International Multi-Functional Modern Reinforced Concrete & Timber Structure House
.
House Features:
brick paved driveway, double garage, brick paved porch around house, veranda, laundry room, kitchen with dining counter, dining room, tv/family & living room with chimney (fire area), office, store room with shelves, powder room, linear room with shelves, master bedroom with closet & bathroom, three (3) bedrooms with closet & bathrooms, brick paved patio (food court) with swimming pool surrounded & covered with aluminum stainless steel bar framing support for fiber glass curtain wall & roof.
Building Materials:
reinforced concrete columns & beam framing; reinforced concrete walls & floor slabs; reinforced concrete slab roof; light metal studs with cement board interior walls, timber framing roof support, tongue & groove timber boards & light metal/aluminum roof covering.
| Architectural Styles | Modern, Contemporary, Prairie, Ranch, Traditional |
| Structure type | Single family home |
| Bedroom Features | Main floor master, Walk in closet, Main floor guestroom |
| Kitchen Features | Breakfast nook, Kitchen island |
| Additional Room Features | Den/Office/Study, Media room, Storage area, Great/Living room, Library room, Main floor laundry, Master sitting area |
| Garage Features | Carport, Rear entry, Front entry, Side entry |
| Outdoor spaces | Loft balcony, Courtyard, Screened porch, Covered rear porch, Wrap around porch |
| Lot characteristics | Suited for corner lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.

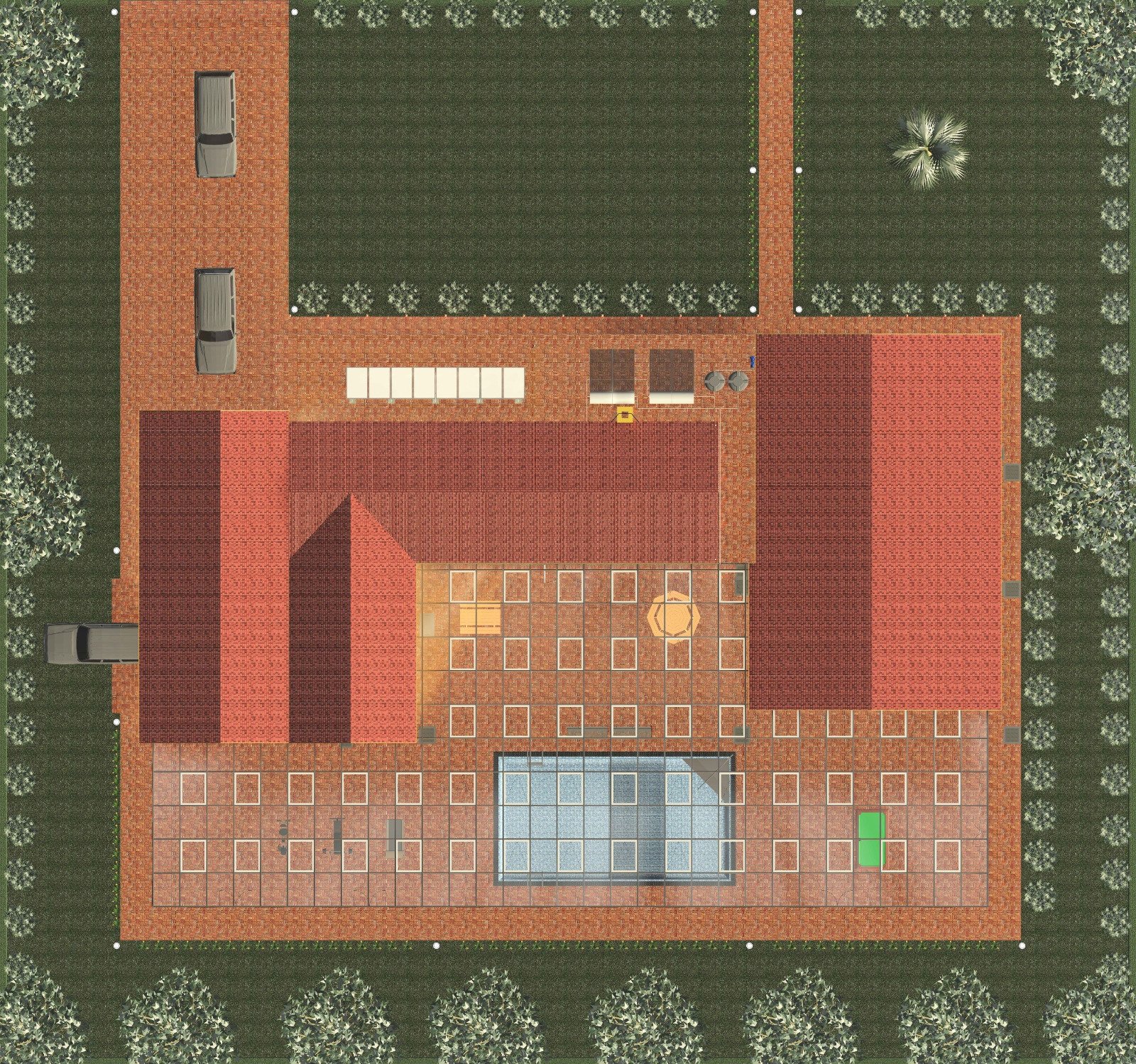

Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
Russtarz Design
Building Designer for Russtarz Design with over 10 years of architectural, engineering and project management experience in a wide range of construction projects, which includes civil works, residential/commercial buildings, institutional buildings etc. I'm also a Real Estate Agent who provides drone services (aerial photos/videos & 3D mapping) and project management services on all Real Estate services for Residential & Commercial Properties.
Learn more and connect with the designer at Russtarz Design Storefront
