| First floor | 2254 |
| Total heated | 2254 |
| Width | 40' 0" |
| Depth | 60' 0" |
| Height | 13' 0" |
| Main level | 11' 0" |
| Stories | 1 |
| Bedroom | 4 |
| Bathrooms | 3 |
| Garage spaces | 2 |
This single-story home offers a bright, open layout designed for comfortable family living.
The central living, dining, and kitchen area connects directly to a spacious rear deck, creating an easy indoor–outdoor flow.
Four well-sized bedrooms—including a private king-size primary room—provide flexibility for family, guests, or a home office.
Multiple conveniently located bathrooms support daily routines with ease.
A two-car garage and a practical laundry room add everyday convenience.
| Architectural Styles | Bungalow, Modern, Contemporary, Shingle |
| Structure type | Single family home |
| Bedroom Features | Guest suite, In law suite, Main floor master, Walk in closet, Main floor guestroom |
| Kitchen Features | Kitchen island |
| Additional Room Features | Main floor laundry |
| Garage Features | Front entry |
| Outdoor spaces | |
| Lot characteristics | Suited for corner lot, Suited for view lot, Suited for narrow lot, Suited for sloping lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

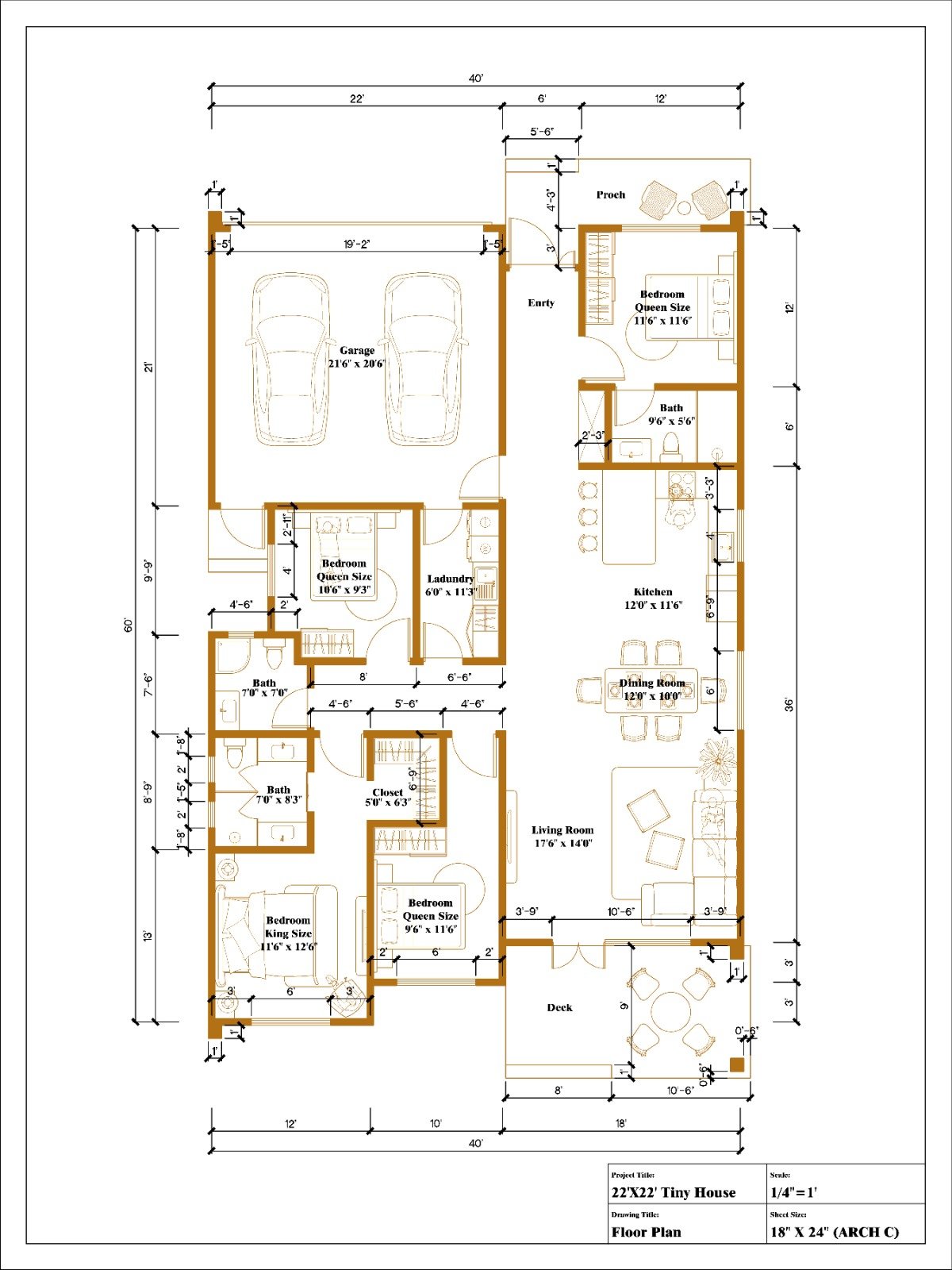

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.

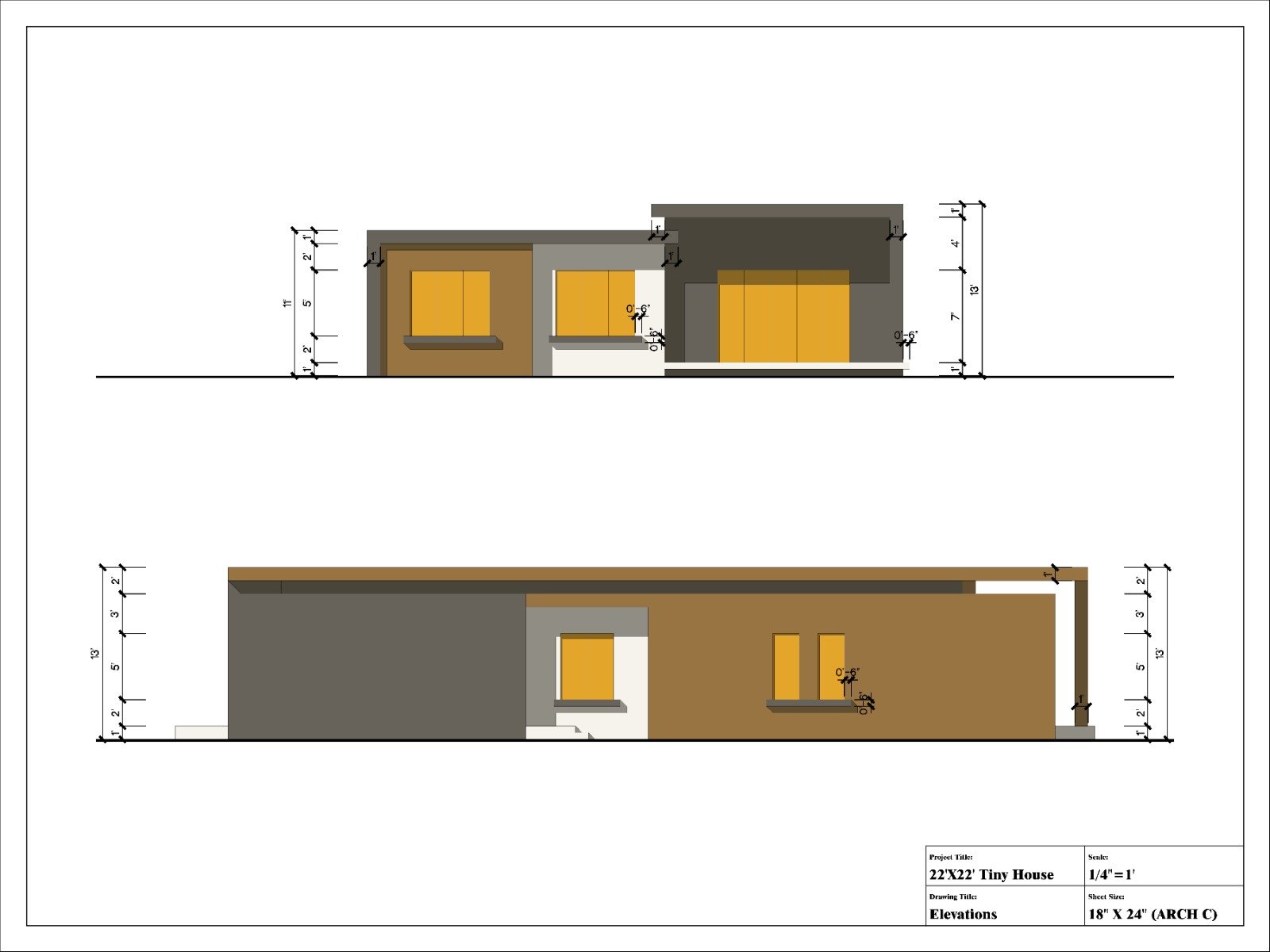

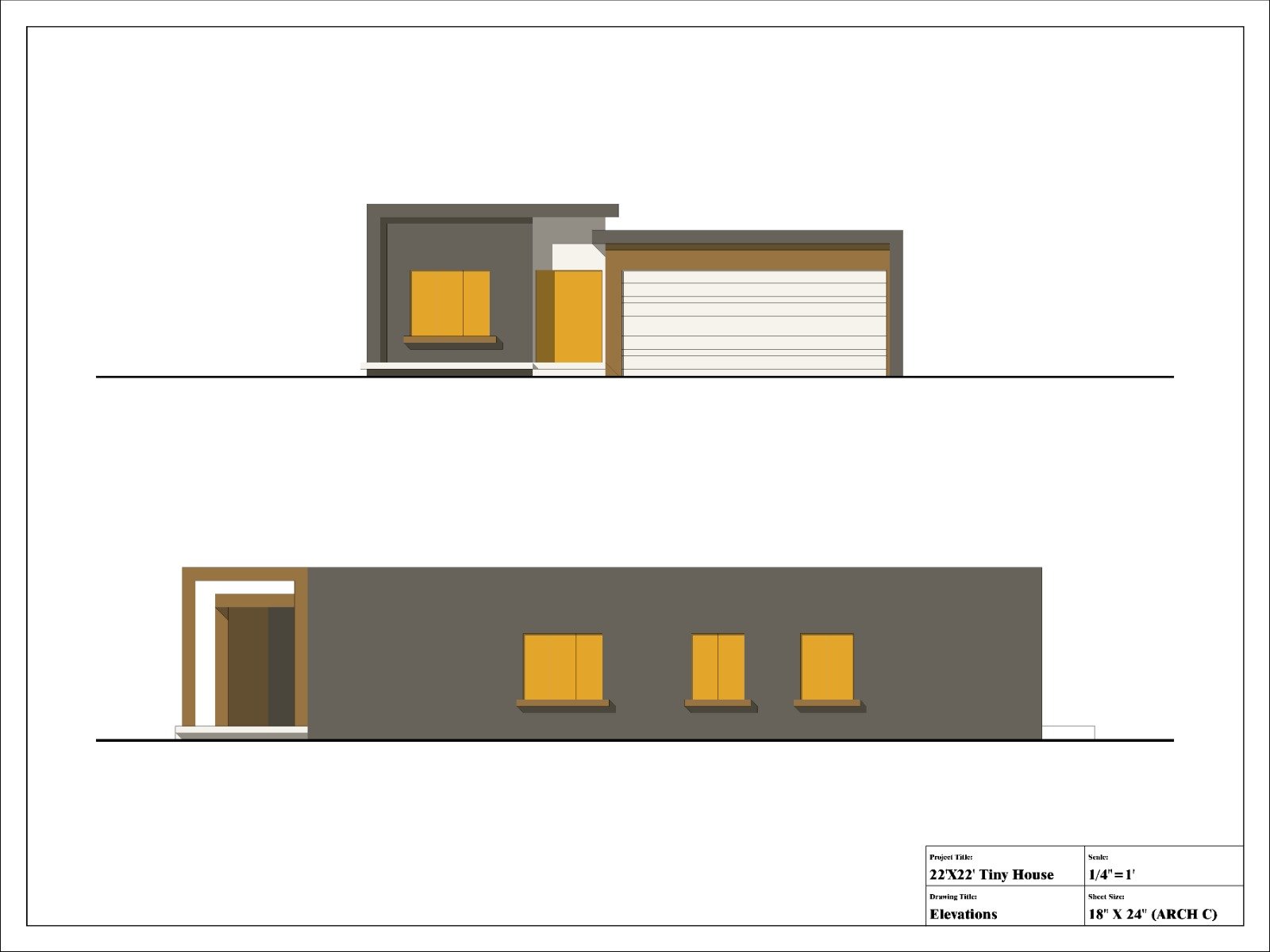

Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
Design CXZ
I’m an Asian architectural designer living in Canada, drawn to the quiet beauty of modern residential spaces. My work explores simple geometries, gentle lines, and practical ideas that make everyday living feel clear and effortless. I design concept-stage homes with a focus on comfort, intention, and the kind of simplicity that leaves room for life to unfold.
Learn more and connect with the designer at Design CXZ Storefront
