| First floor | 1173 |
| Second floor | 1347 |
| Third floor | 1644 |
| Total heated | 4164 |
| Garage | 322 |
| Width | 49' 180" |
| Depth | 65' 240" |
| Height | 31' 114" |
| Main level | 12' 44" |
| 2nd level | 10' 38" |
| Terrasse | 8' 30" |
| Terrasse | 8' 30" |
| Stories | 2 |
| Bedroom | 3 |
| Bathrooms | 3.5 |
| Garage spaces | 2 |
Designed for a modern, fluid lifestyle, this villa blends open architectural spaces with high-end comfort. Its centerpiece is a spectacular double-height living area that floods the interior with natural light and creates a direct connection between the living spaces and the outdoor pool.
Highlights:
Architectural design: Impressive double-height ceiling in the main living area, creating a modern, airy atmosphere.
Dual-kitchen concept: Features both an open-plan kitchen—ideal for entertaining—and a secondary kitchen (scullery).
Optimal comfort: Ground-floor guest suite (24.5 m²) and a private master suite upstairs.
Outdoor oasis: Built-in rear pool (21.2 m²), interior courtyard, and a two-car garage.
| Architectural Styles | Modern, Classical, Contemporary |
| Structure type | Duplex plans, Single family home, Garage w/ living space, Multi family |
| Bedroom Features | Buddy bath, Guest suite, Upstairs bedrooms, Upstairs master, Main floor master, Walk in closet |
| Kitchen Features | Breakfast nook, Kitchenette wet bar |
| Additional Room Features | Hobby/Rec room, Wet bar, Master sitting area |
| Garage Features | Detached garage, Front entry |
| Outdoor spaces | Courtyard, Covered front porch |
| Lot characteristics | Suited for narrow lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

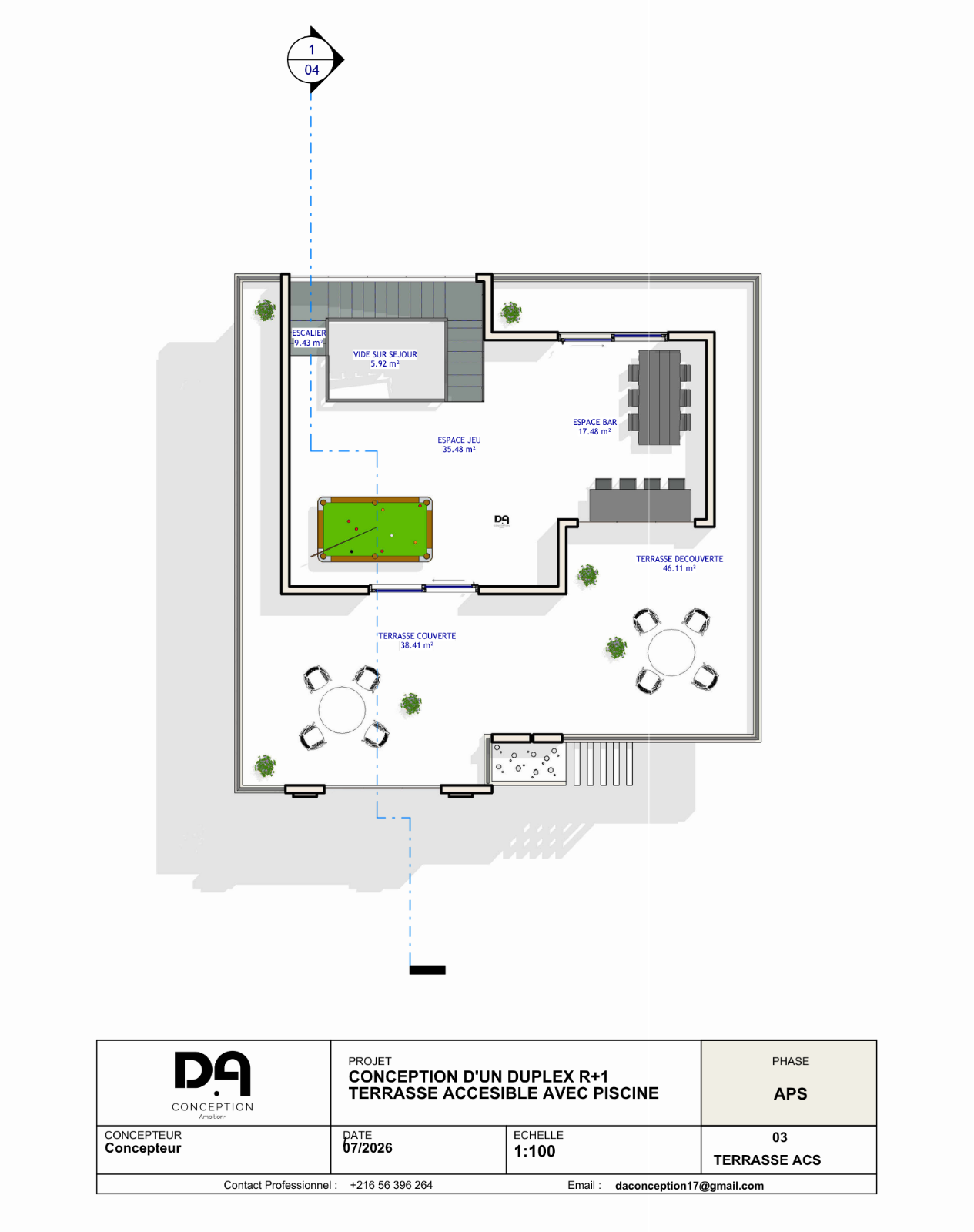

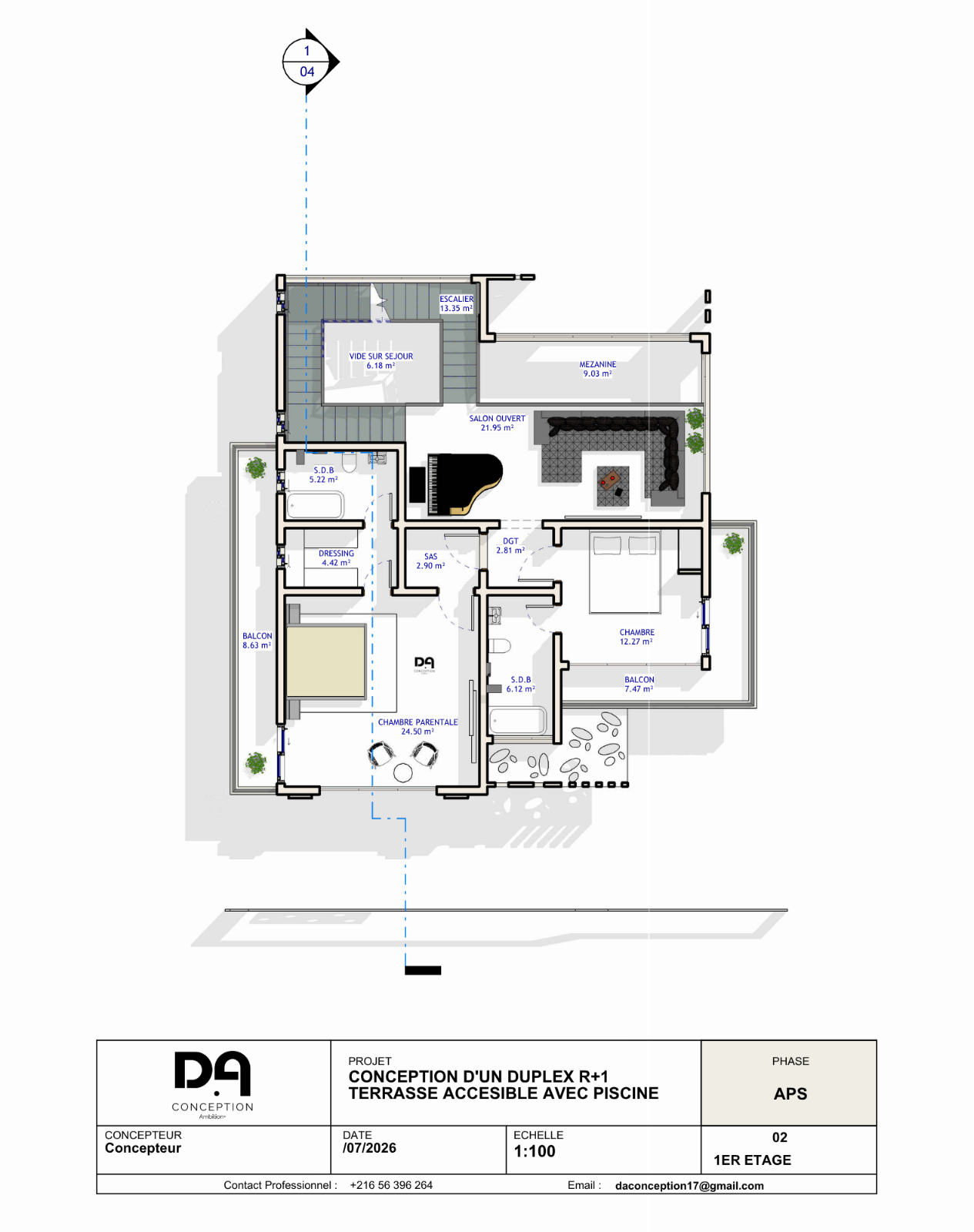

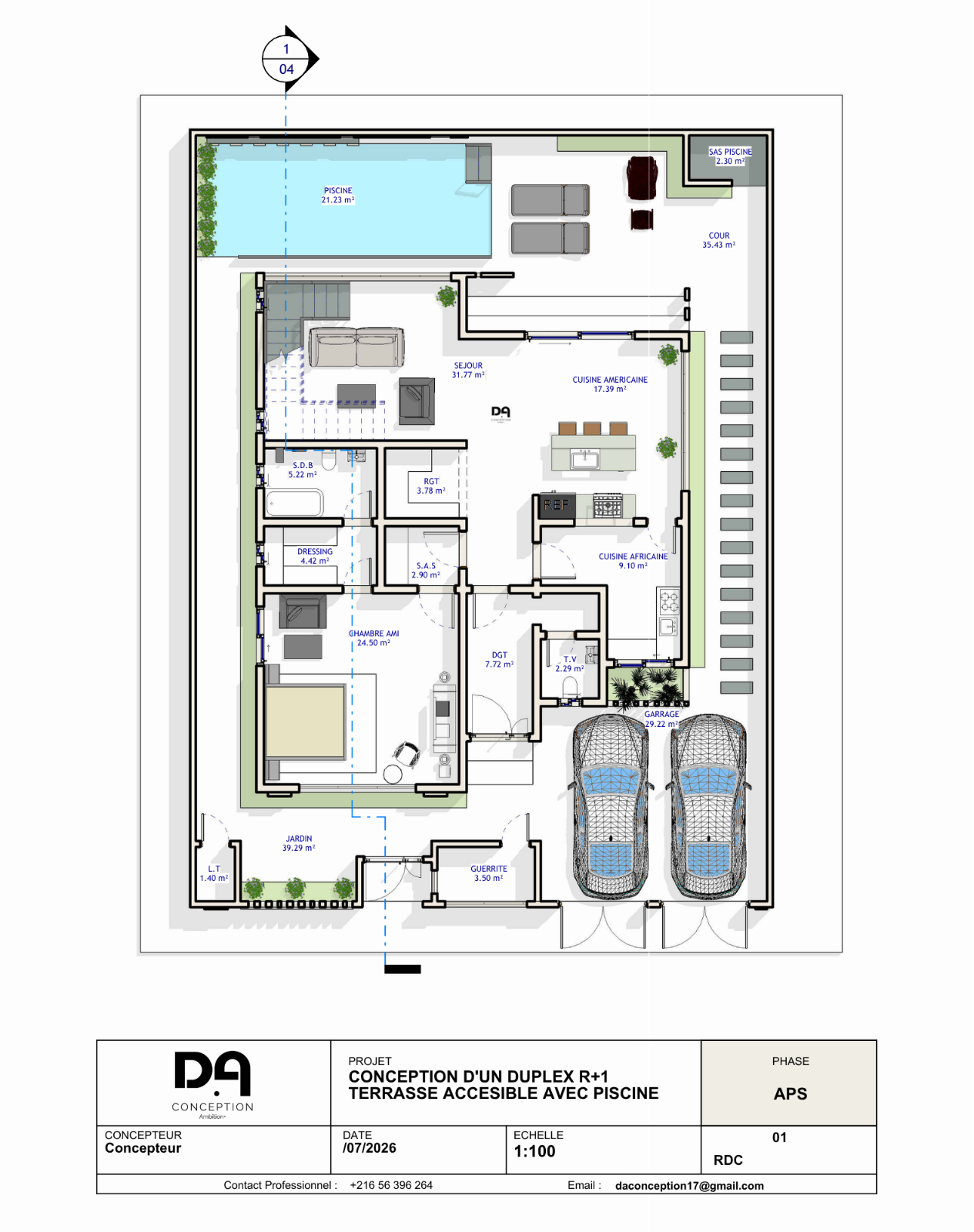

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
