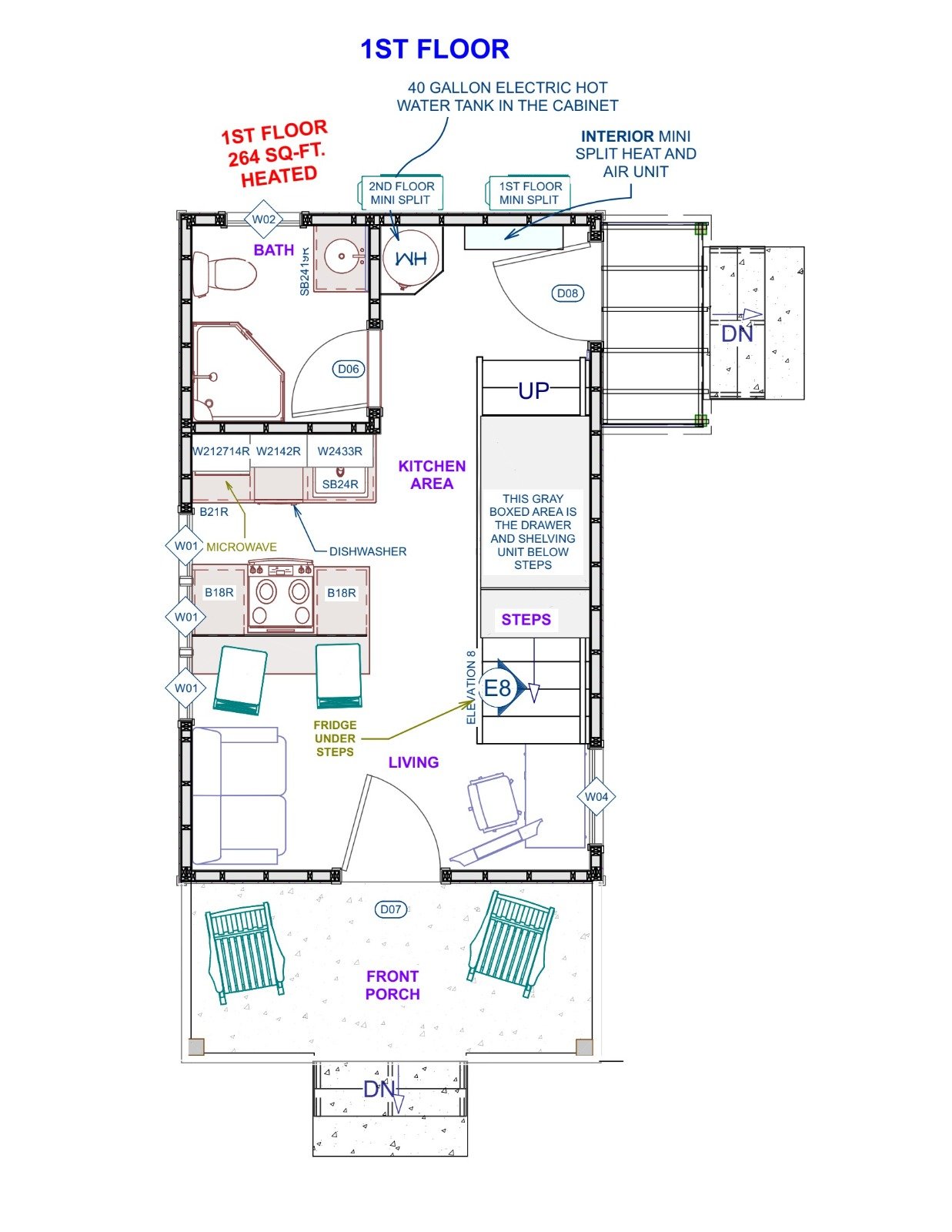

| First floor | 264 |

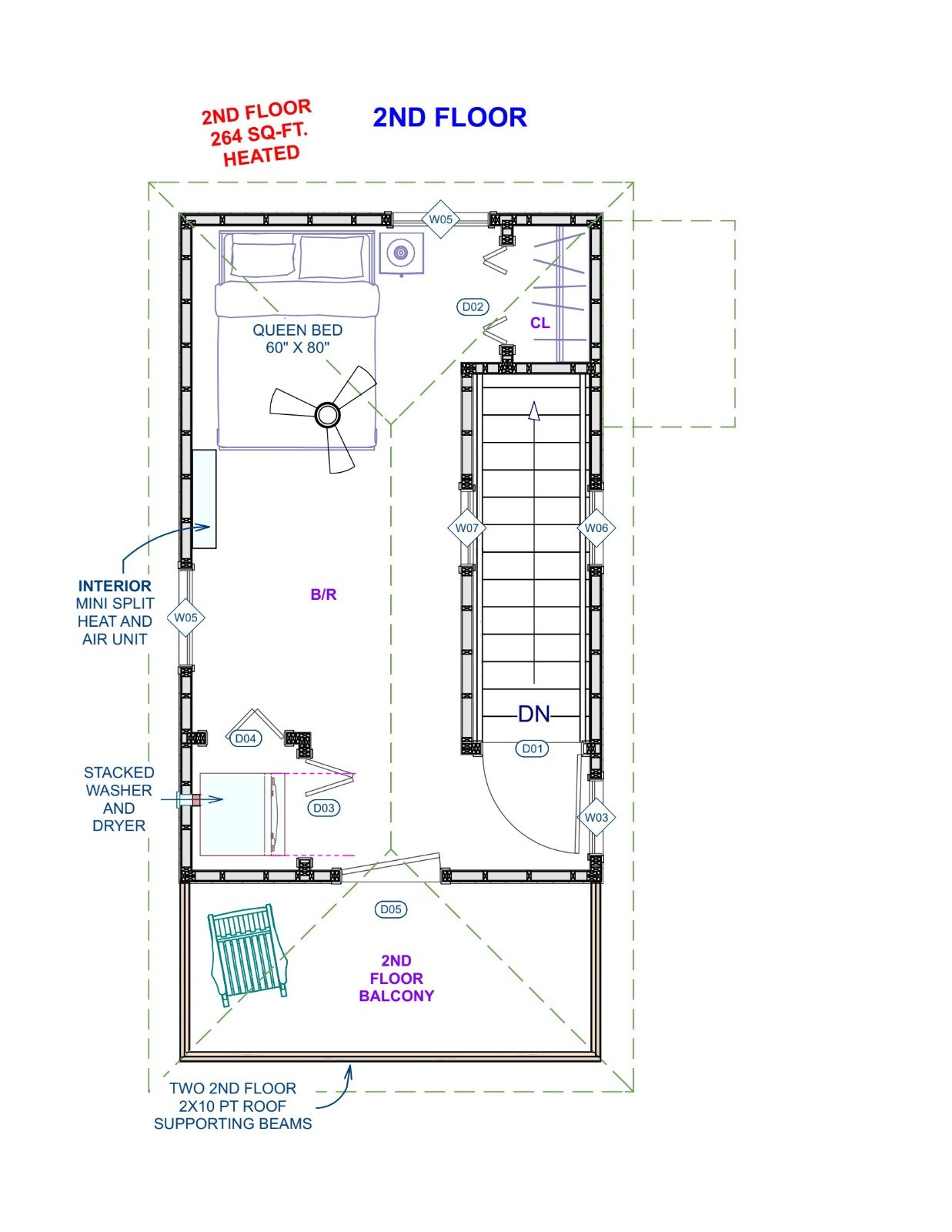

| Second floor | 264 |
| Third floor | 0 |
| Basement (finished) | 0 |
| Other heated area | 0 |
| Total heated | 528 |
| Garage | 0 |
| Unfinished space | 0 |
| Width | 12' 9" |
| Depth | 20' 4" |
| Height | 22' 10" |
| Main roof pitch | 6/12 |
| Main level | 8' 0" |
| 2nd level | 8' 0" |
| Stories | 2 |
| Bedroom | 1 |
| Bathrooms | 1 |
| Garage spaces | 0 |
This is: Residential Draftsman Service in Louisville, KY. I have been a residential builder, remodeler, and draftsman for 36 years. I have been a FULL-TIME residential draftsman for the past 7 years. I have had many clients. I just realized last week: why don't I sell some of my new house plans online. This is just the 1st house that I am going to list.
If I can sell some of my house plans on this website, I will continue to list more house plans for sale. I am thinking of listing at least one or two house plans per month.
If anyone buys any of my house plans, I can make changes to the plans however they want them, which could be larger, wider houses, basements, garages, anything to please my clients.
| Architectural Styles | Bungalow, Modern, Cottage, Traditional |
| Structure type | Tiny house |
| Bedroom Features | Upstairs master |
| Kitchen Features | Kitchen island |
| Additional Room Features | Upstairs laundry |
| Garage Features | |
| Outdoor spaces | |
| Lot characteristics | Suited for corner lot, Suited for narrow lot, Suited for sloping lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
Residential Draftsman Service
I am a full-time Architectural Draftsman in Louisville, KY
Learn more and connect with the designer at Residential Draftsman Service Storefront
