| First floor | 903 |
| Second floor | 937 |
| Total heated | 1840 |
| Garage | 480 |
| Width | 36' 0" |
| Depth | 46' 0" |
| Height | 30' 4" |
| Main roof pitch | 8/12 |
| Main level | 9' 0" |
| 2nd level | 8' 0" |
| Stories | 2 |
| Bedroom | 3 |
| Bathrooms | 3 |
| Garage spaces | 2 |
The Herndon
has a very nice 4th bedroom option which also allows for a sizable walk-in closet off the master bedroom. When built with these options, the total sq. ft. is 2055'. The total upper level sq. ft. is 1152'.
| Architectural Styles | Traditional |
| Structure type | Single family home |
| Bedroom Features | Upstairs bedrooms, Upstairs master, Walk in closet |
| Kitchen Features | Kitchen island, Walk in pantry |
| Additional Room Features | Den/Office/Study, Mud room, Great/Living room, Upstairs laundry |
| Garage Features | Front entry |
| Outdoor spaces | Covered front porch |
| Lot characteristics |
A Single Build Construction License that gives you certain rights (contact us for details).
CONSTRUCTION DRAWINGS (most plans)
Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
Foundations. Foundations are fully engineered for each design, whether slab or basement.

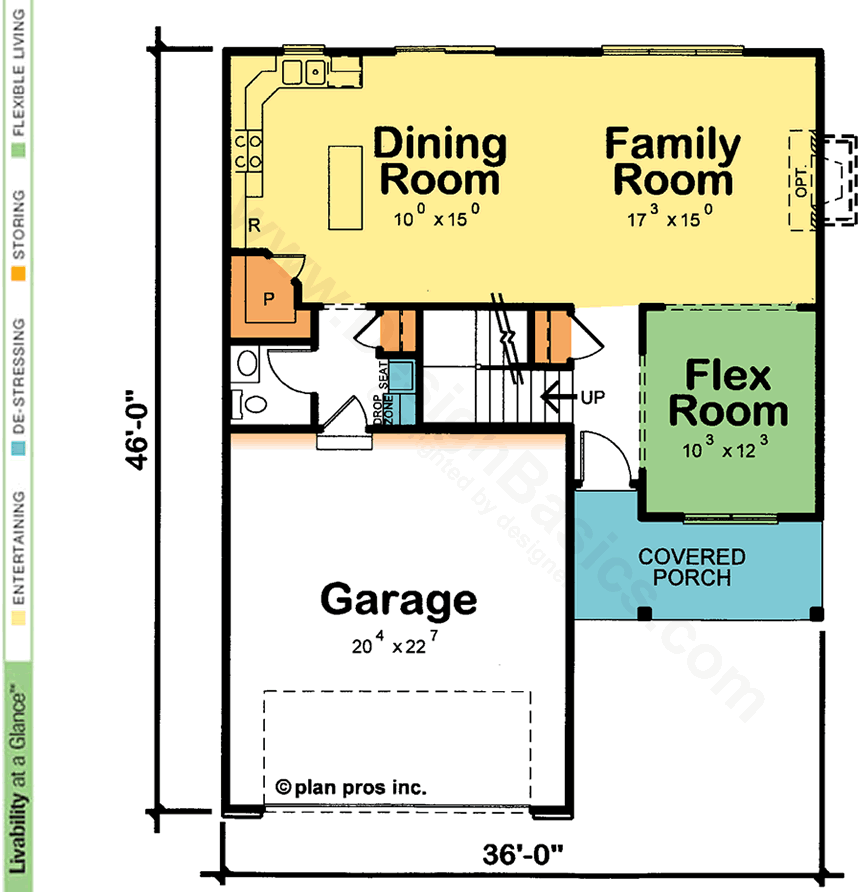

Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.
Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*.
Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Full technical support is provided to purchasers of each plan to answer your plan-related questions.
*Plans are drafted to meet average conditions and building codes in Nebraska (Texas for Carmichael & Dame Designs) at the time they are designed. Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).
An Unlimited-Build Construction License:
Allows home builders to build their specific plan an unlimited number of times with no re-use fees. The Unlimited-Build option sells at a $500 premium over the Single-Build price, no matter the choice of construction print – PDF, Sets, or a CAD file.
