| First floor | 2090 |
| Total heated | 2090 |
| Garage | 673 |
| Unfinished space | 275 |
| Width | 56' 0" |
| Depth | 60' 0" |
| Height | 22' 3" |
| Main roof pitch | 6/12 |
| Main level | 10' 0" |
| Stories | 1 |
| Bedroom | 3 |
| Bathrooms | 3.5 |
| Garage spaces | 3 |
Very Traditional and Open Living Home Plan
This very traditional home plan has been created with a modern lifestyle to be enjoyed. As you enter into the courtyard with the guest casita on your side, notice the flexibility of this structure. A guest suite, office, small living quarters for mom or dad, so many applications with separation and quiet living in mind. Upon entry to the main home the very lavishly open feeling of kitchen, dining and living beckon many years of comfortable living. The master bedroom suite shares the openness of this plan with a private access to the covered outdoor living space completing this home plan for years of natural living for all.
| Architectural Styles | Ranch, Traditional |
| Structure type | Single family home |
| Bedroom Features | Split bedrooms, Guest suite, Main floor master, Walk in closet |
| Kitchen Features | Breakfast nook, Kitchen island, Walk in pantry, Country kitchen |
| Additional Room Features | Mud room, Storage area, Great/Living room, Main floor laundry, Master sitting area |
| Garage Features | Front entry, Oversized |
| Outdoor spaces | Courtyard, Outdoor kitchen, Covered rear porch |
| Lot characteristics | Suited for corner lot, Suited for view lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

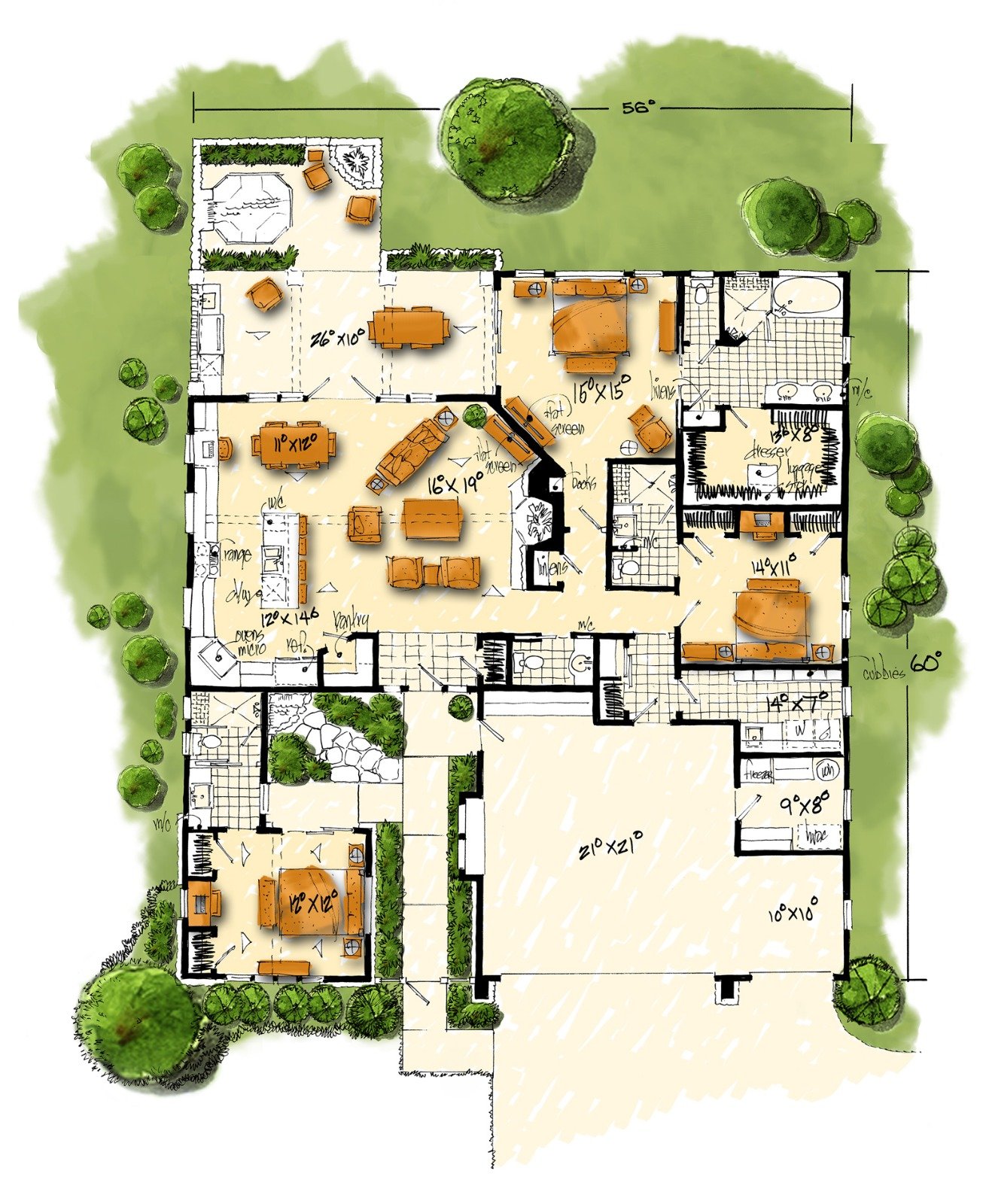

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
