Published
FOUNTAIN
FOUNTAIN
| EDESSIGNS
EDESSIGNS
298 Sq Ft | 3 Bed | 4+ Bath | 3+ Story | 0 Garage | dim
Width 35 | Depth 39
|
$ 80

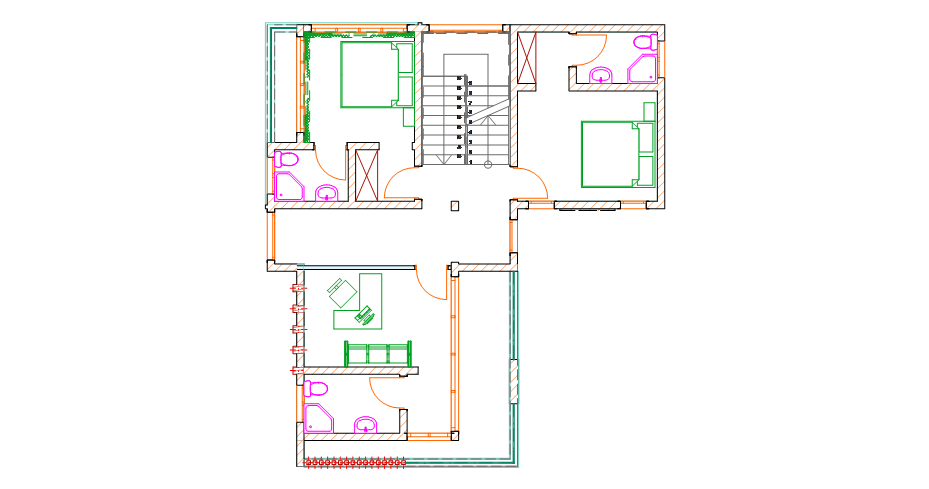

First floor plan

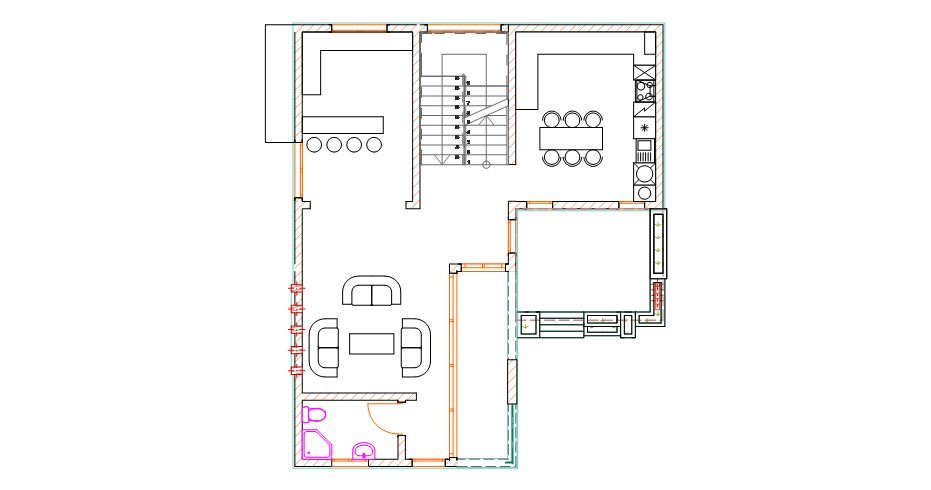

Ground floor plan

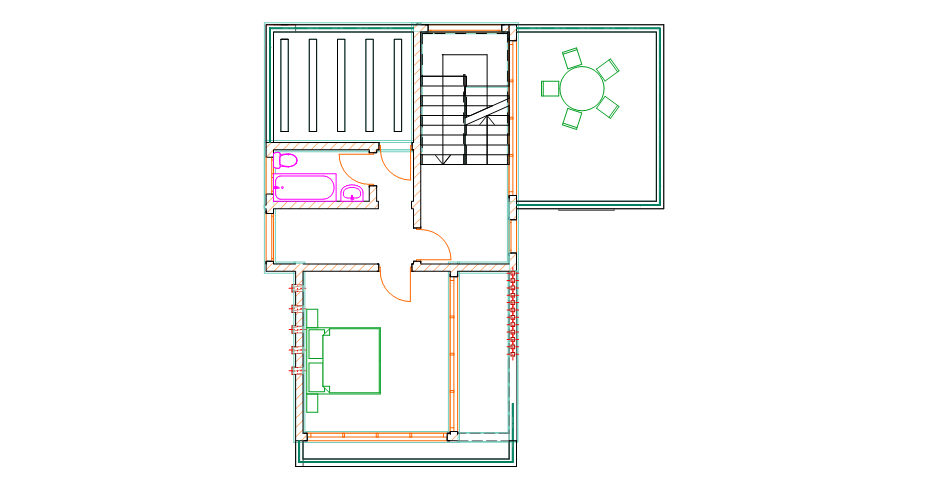

Second floor plan
First floor plan
second floor plan
Second floor plan
Square footage
First floor 104
Second floor 97
Third floor 97
Total heated 298
Dimensions
Width 35' 5"
Depth 39' 4"
Height 33' 6"
Main roof pitch 1/200
Ceiling heights
Main level 10' 6"
2nd level 21' 0"
3rd level 33' 6"
Main features
Stories 3+
Bedroom 3
Bathrooms 4+
Garage spaces 0

the building provides the high suitable refreshing  places for the office and the home based workers

Full specifications and features
Architectural Styles Bungalow, Modern, Southern, European
Structure type Single family home, Tiny house, Multi family
Bedroom Features Buddy bath, Split bedrooms, Upstairs bedrooms, Upstairs master, Main floor master, Walk in closet
Kitchen Features Breakfast nook, Kitchen island, Peninsula eating bar
Additional Room Features Storage area, Great/Living room, Wet bar
Garage Features
Outdoor spaces Covered front porch, Covered rear porch
Lot characteristics
What's included?

Cover sheet

An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.


Floor plan(s)

Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.


Exterior elevations

Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.


Interior elevations

These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.


Roof plan

Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.


Foundation plan

This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.


Cross-section details

These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.

Dsc 0050

EDESSIGNS

Architectural designer offering the building designs, architectural concepts, landscaping schemes and proffessional trainings about Arch.designing softwares online on low cost.

Learn more and connect with the designer at EDESSIGNS Storefront
