| Great House Design
Great House Design
1890 Sq Ft | 2 Bed | 2.5 Bath | 1.5 Story | 2 Garage | dim
Width 94 | Depth 38
|
$ 1100
First floor plan

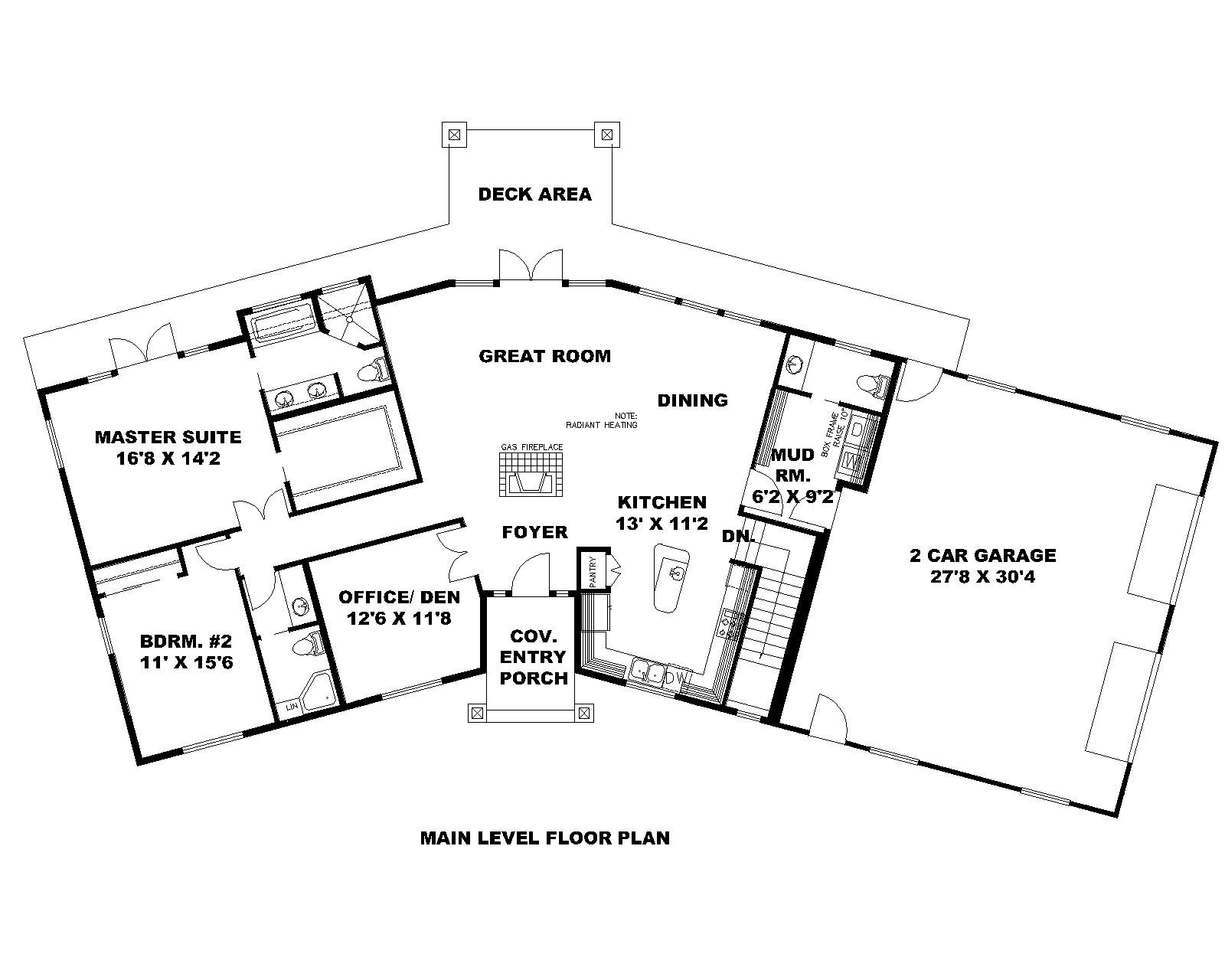

Main level
Basement
Unfinished basement
001-3626
Click to open in new tab
| HPWQLIRV | Great House Design
Square footage
First floor 1890
Total heated 1890
Garage 846
Unfinished space 601
Dimensions
Width 94' 2"
Depth 38' 9"
Height 19' 5"
Main roof pitch 7/12
Ceiling heights
Main level 9' 1"
Basement level 9' 0"
Main features
Stories 1.5
Bedroom 2
Bathrooms 2.5
Garage spaces 2

Mountain style rancher with a beautiful spacious entry, leading to a large great room with vaulted ceilings.  Rear deck spans the width of the house with separate access to the master suite.  This plan also includes an attached 2-car garage and partial unfinished basement, perfect for storage space.

Full specifications and features
Architectural Styles Ranch, Country, Craftsman
Structure type Single family home
Bedroom Features Main floor master, Walk in closet, Main floor guestroom
Kitchen Features Kitchenette wet bar
Additional Room Features Den/Office/Study, Mud room, Great/Living room, Unfinished space
Garage Features Rear entry, Front entry
Outdoor spaces Covered front porch, Grill deck sundeck
Lot characteristics Suited for corner lot, Suited for view lot
What's included?

Cover sheet

An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.


Floor plan(s)

Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.


Exterior elevations

Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.


Interior elevations

These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.


Roof plan

Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.


Foundation plan

This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.


Cross-section details

These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.

Glenny designer bio pic

Great House Design

Great House Design was established in 1990. Glen Hyman is the owner/designer certified by the AIBD and has over 30 years of residential design experience. Great House Design prides itself in our large range of architectural designs spanning over 800 stock plans, or creating a brand new, custom designed home/garage. If you can dream it, we can design it!
