3511 Sq Ft | 4 Bed | 3 Bath | 1.5 Story | 2 Garage | dim
Width 110 | Depth 45
|
$ 1500
First floor plan
Stonehouse i

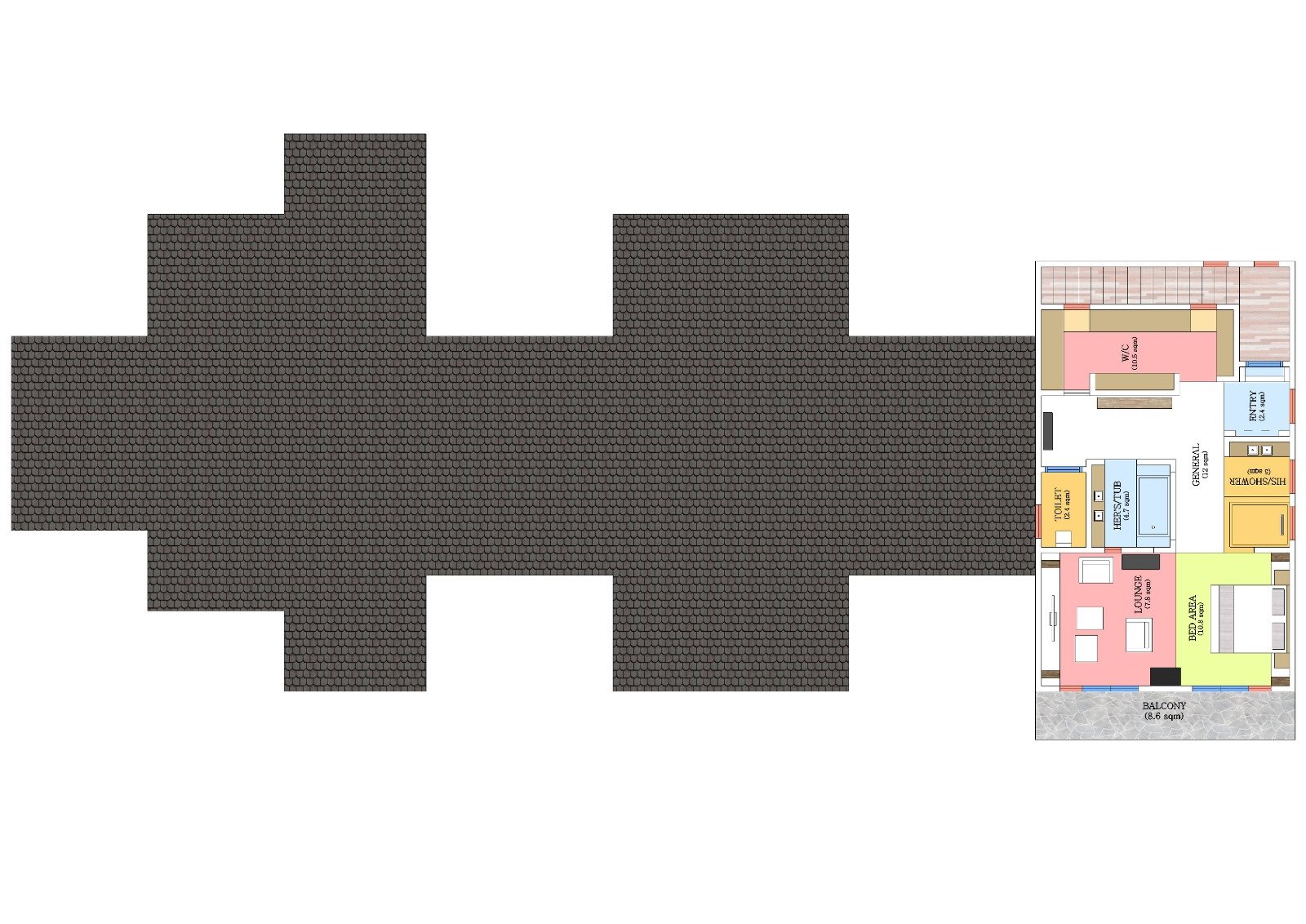

Second floor plan
Stonehouse ii
Stonehouse
Click to open in new tab
| ZFNEKAYM | The Hirundo Rustica Co.
Square footage
First floor 2820
Second floor 691
Total heated 3511
Garage 474
Dimensions
Width 110' 5"
Depth 45' 9"
Height 18' 0"
Main roof pitch 7/9
Ceiling heights
Main level 8' 5"
2nd level 8' 5"
Main features
Stories 1.5
Bedroom 4
Bathrooms 3
Garage spaces 2

From ordinary folks, to designers, and architects, if we were given a chance to envision our dream homes without ever considering the site characteristics certainly all of our home design choices will be based on a favorable site conditions, and that is of approaching and accessing the site at the front side with your home facing towards the gate, or on the worst case scenario accessing it from aside.

Well that wasn’t neither of the cases in this home design project, the site was positioned almost at the bottom of the hill, with the road on the right hand side propelling you from uphill directly down into the site. The site had a split level of about a meter in the middle, facing a forest hill with a sun tracking from dawn to night right in front of it, with absolutely no possibility of other gate positioning, this was a site that wasn’t about to be told how to be and couldn’t wait for someone stupid enough to attempt it on a budget it had.

Envisioning the house with the client it became clear that the house will have to face downhill towards the forest hill, which means the first thing you will see as you travel down towards it will be the back of the house. Which was a real challenge to us since the backyards of most traditional homes are like hidden spaces where we put away stuff with things like; garbage cans, washing lines, carports, vegetable gardens, and many other broken useless junk we no longer use.

But the real challenge was that the designs of most traditional home’s backside is like looking at the backside of any object you can think of...it’s just so not the selling point. So having that now as front of the house, “first impression” was something it wouldn’t even dare to dream of.

So we came up with a structural design that had a ‘Mirror Effect’, for the backside to look exactly like the front in terms of structure. This enabled us to make the backside into almost a replica of how the front looks without ever compromising on its functional design and logic.

It resulted into a beautiful family home with a semi-open plan interior design, providing a great environment to entertain guests without disturbing your everyday family life, a rural home they won’t need to take a vacation from.

And to any individual who haven’t seen the front of the house looking, looking at it from the backside, it’s a pretty good looking traditional home that carries presence.

It’s one of the few exemplars of home designs that reveals:

“The Far Side of the Moon”

Full specifications and features
Architectural Styles Bungalow, Contemporary, Ranch, Country, Craftsman, Traditional, Farmhouse
Structure type Single family home
Bedroom Features Upstairs master, Walk in closet, Main floor guestroom
Kitchen Features Breakfast nook, Kitchen island
Additional Room Features Den/Office/Study, Exercise room, Storage area, Great/Living room, Main floor laundry, Master sitting area
Garage Features Rear entry, Front entry
Outdoor spaces Covered front porch, Covered rear porch
Lot characteristics Suited for view lot, Suited for narrow lot, Zero lot lines
What's included?

Cover sheet

An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.


Floor plan(s)

Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.


Exterior elevations

Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.


Interior elevations

These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.


Roof plan

Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.


Foundation plan

This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.


Cross-section details

These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
