First floor | 4553 |
Second floor | 4553 |
Basement (finished) | 9 |
Other heated area | 0 |
Total heated | 9115 |
Garage | 1 |
Unfinished space | 0 |
Width | 54' 9" |
Depth | 83' 2" |
Height | 35' 5" |
Main roof pitch | 4/0 |
Main level | 10' 0" |
2nd level | 9' 3" |
Stories | 2 |
Bedroom | 5+ |
Bathrooms | 4+ |
Garage spaces | 1 |
House Design & Engineers Ltd is a custom home design company, focused on designing homes that are economical to build, functional to live in and attractive to look at. We design using a construction background so that your plans cost you less to build. Walker Home Design creates designs unique to your wants and your budget. We also have several stock plans on hand should you choose to build a plan already in our inventory.
Architectural Styles | Modern, Contemporary, European |
Structure type | Duplex plans, Single family home |
Bedroom Features | |
Kitchen Features | |
Additional Room Features | Den/Office/Study, Great/Living room, Master sitting area |
Garage Features | Front entry |
Outdoor spaces | Loft balcony |
Lot characteristics | Suited for view lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

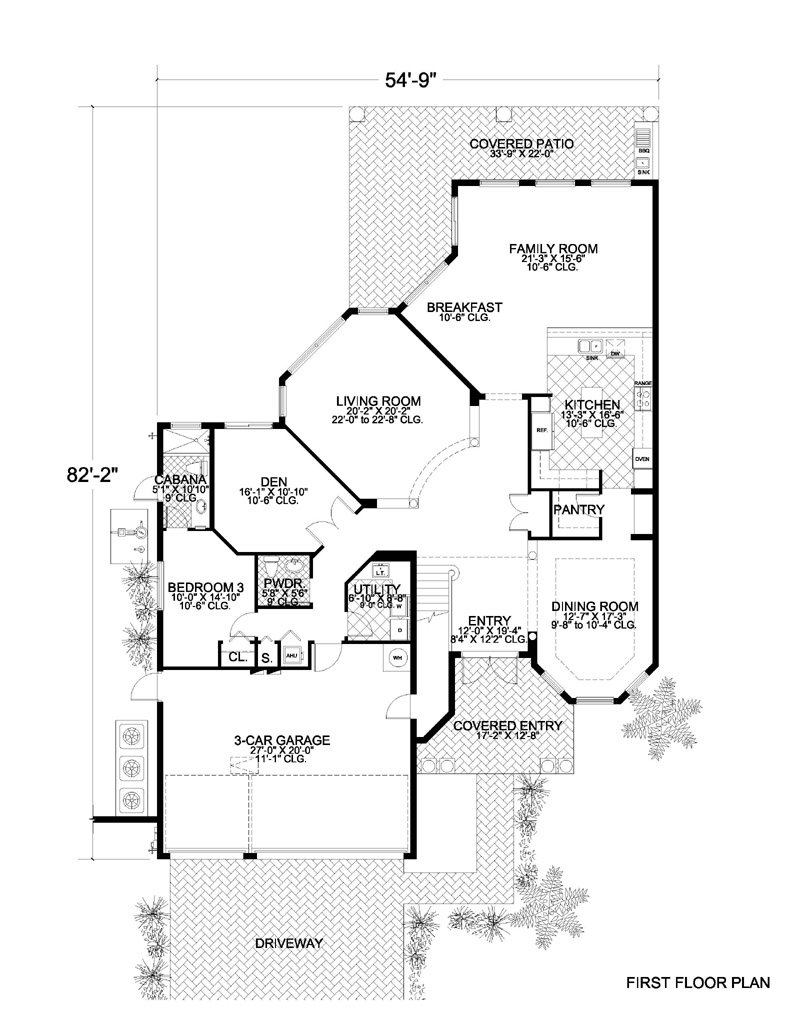

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
House Design & Engineers Ltd
Building Design,Consultant & Construction Company HOUSE DESIGN & ENGINEERS LTD. We are Working 1.Architectural Design, 2.Structural Design, 3.Electrical Design, 4.Sanitary & Plumbing Design, 5.Interior Design, 6.Soil Test, 7.Digital Survey, 8. Construction, 9.Plan Approval Sheet.
Learn more and connect with the designer at House Design & Engineers Ltd Storefront
