| First floor | 1290 |
| Total heated | 1290 |
| Width | 53' 1" |
| Depth | 51' 9" |
| Height | 16' 7" |
| Main roof pitch | 2/12 |
| Main level | 10' 0" |
| Stories | 1 |
| Bedroom | 2 |
| Bathrooms | 2 |
| Garage spaces | 0 |
The Cedar Casita was originally designed for a client who wanted to create a cozy retreat for his mother on their estate. This space was envisioned as a place where she could create lasting memories with her grandchildren, featuring an open floor plan with minimal maintenance, a fun loft for the grandkids, and lengthened patio steps for her love of gardening and potted plants. We find joy in creating unique, personalized spaces that cater to our clients' specific needs and aspirations. This casita would be a great addition to your site for guests, loved ones or adding income-earning rental value.
| Architectural Styles | Cabin, Modern |
| Structure type | Accessory structures, Single family home |
| Bedroom Features | Split bedrooms, Guest suite, Walk in closet |
| Kitchen Features | Peninsula eating bar |
| Additional Room Features | Storage area, Main floor laundry |
| Garage Features | Carport, Side entry |
| Outdoor spaces | Covered front porch, Grill deck sundeck |
| Lot characteristics |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

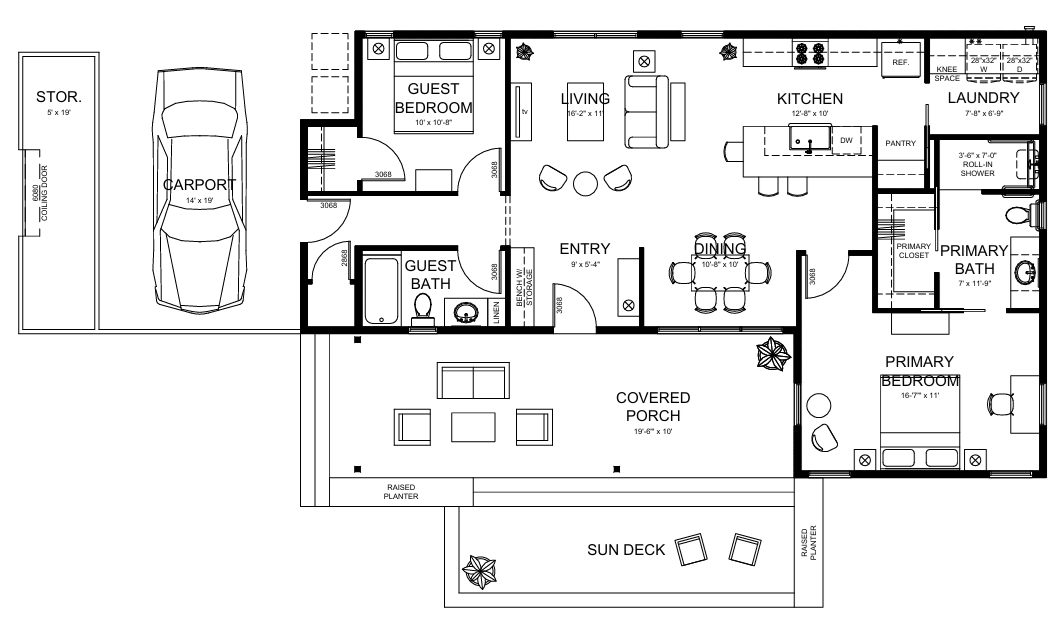

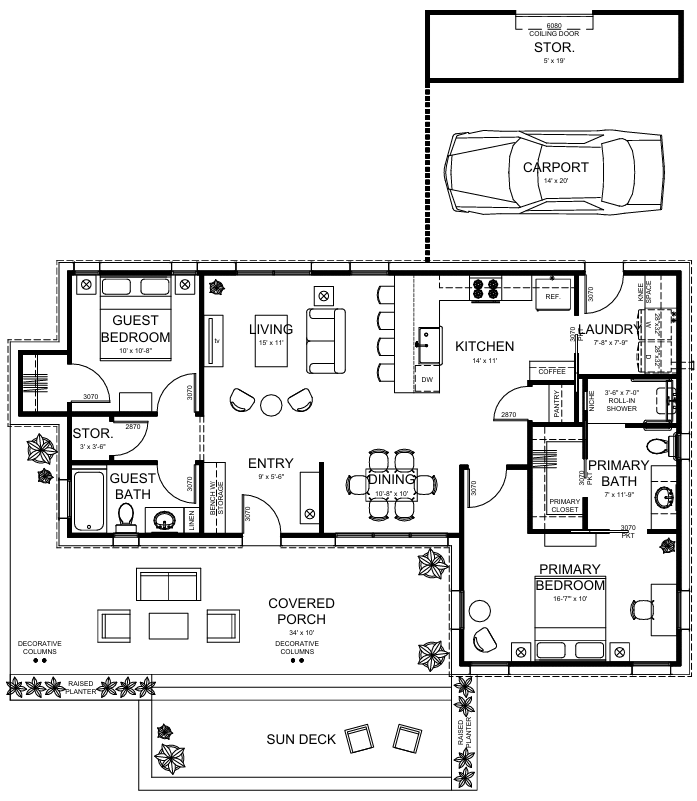

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
