| First floor | 692 |
| Second floor | 692 |
| Third floor | 692 |
| Total heated | 2076 |
| Width | 18' 1" |
| Depth | 49' 10" |
| Height | 10' 6" |
| Main level | 10' 6" |
| 2nd level | 10' 6" |
| Stories | 3+ |
| Bedroom | 2 |
| Bathrooms | 2 |
| Garage spaces | 0 |

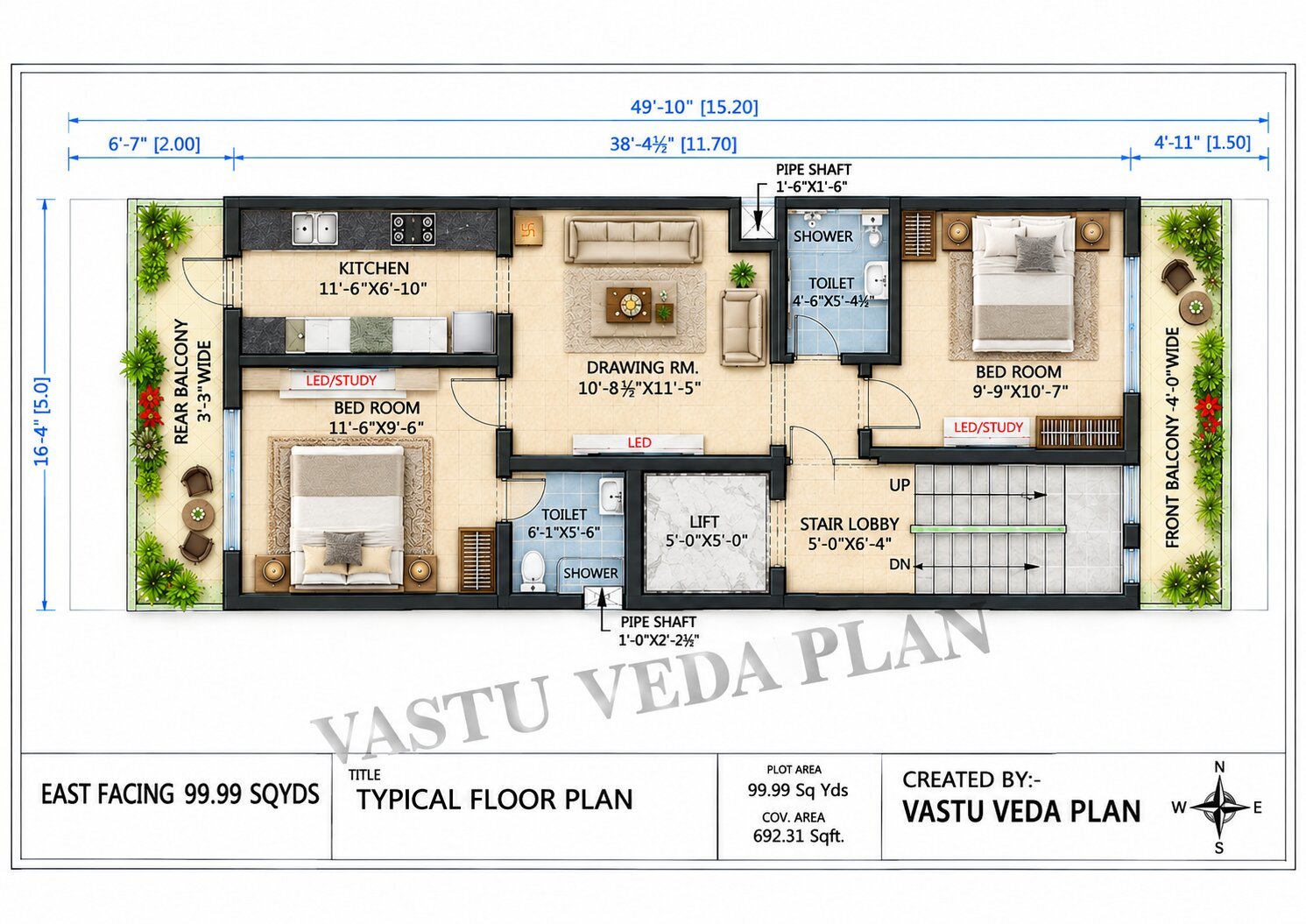

A thoughtfully planned east-facing 2BHK residential home designed to make efficient use of a compact plot. The layout offers a comfortable drawing room, two well-proportioned bedrooms, a functional kitchen, two toilets, balconies, and a dedicated lift and stair lobby. The plan balances everyday functionality with practical circulation, making it suitable for modern family living. Its compact footprint and well-organized spaces make it a practical choice for urban residential development.
| Architectural Styles | Modern |
| Structure type | Multi family |
| Bedroom Features | Main floor master |
| Kitchen Features | Breakfast nook, Kitchen island, Butlers pantry, Peninsula eating bar, Kitchenette wet bar, Walk in pantry, Country kitchen |
| Additional Room Features | Finished third floor, Storage area |
| Garage Features | |
| Outdoor spaces | |
| Lot characteristics |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
