chaapa holdings
2060 Sq Ft | 4 Bed | 2 Bath | 1 Story | 1 Garage | dim
Width 41 | Depth 27
$ 0

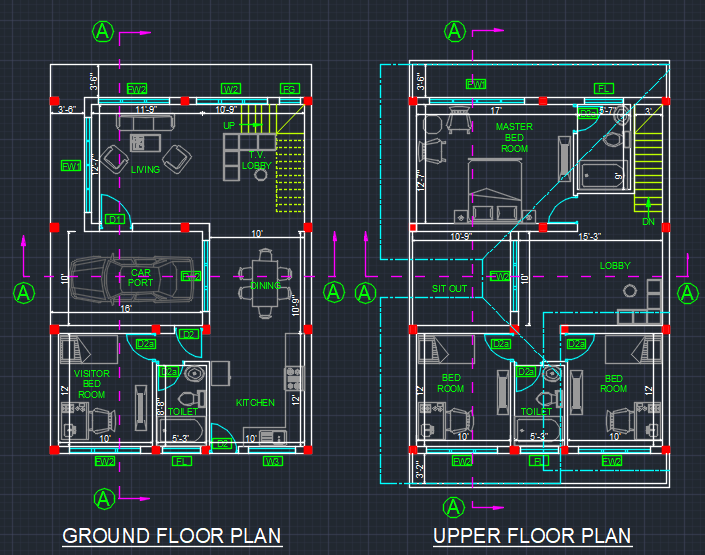

First floor plan
Screenshot  30
Second floor plan
Screenshot  30
Click to open in new tab
| ITJNDSEV | chaapa holdings
Square footage
First floor 824
Second floor 1236
Total heated 2060
Garage 160
Width 41' 1"
Depth 27' 6"
Height 20' 0"
Main roof pitch 31/11
Ceiling heights
Main level 11' 1"
2nd level 13' 8"
Main features
Stories 1
Bedroom 4
Bathrooms 2
Garage spaces 1

you can Oder full drawing and get awesome benefits!

Full specifications and features
Architectural Styles Southern, Craftsman, European, Traditional
Structure type Play house, Single family home, Tiny house
Bedroom Features Guest suite, Main floor guestroom
Kitchen Features Breakfast nook, Kitchen island, Walk in pantry, Country kitchen
Additional Room Features Den/Office/Study, Master sitting area
Garage Features Carport
Outdoor spaces Wrap around porch
Lot characteristics Suited for corner lot
What's included?

Cover sheet

An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

Floor plan(s)

Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.

Exterior elevations

Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.

Interior elevations

These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.

Roof plan

Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.

Foundation plan

This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.

Cross-section details

These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
