| First floor | 1759 |
| Second floor | 0 |
| Total heated | 1759 |
| Unfinished space | 0 |
| Width | 45' 0" |
| Depth | 53' 6" |
| Height | 24' 10" |
| Main roof pitch | 8/12 |
| Main level | 9' 1" |
| 2nd level | 1' 1" |
| Stories | 1 |
| Bedroom | 3 |
| Bathrooms | 2 |
| Garage spaces | 2 |

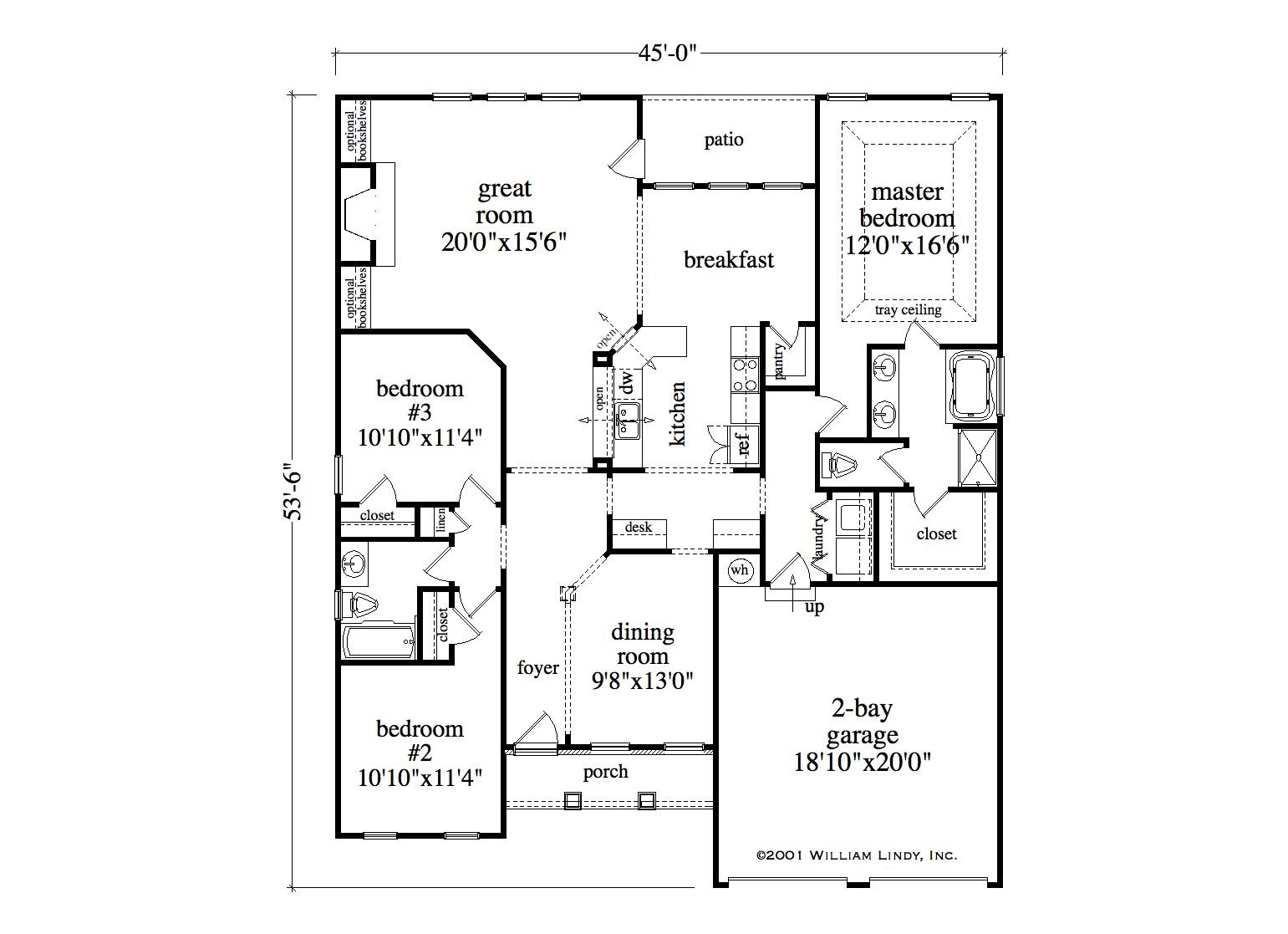

BARTRAM - RANCH
This charming ranch with Craftsman detailing offers a very livable floor plan with open concept design and split bedrooms. The formal dining room is just off the foyer as well as the kitchen area and is accented with an elegant column. The kitchen, which features generous cabinets and counter space plus a walk-in pantry and breakfast area, is open to the great room with fireplace and built-ins.
The master bedroom with trey ceiling has a discreet entry away from the living space. A walk-in closet and en suite bath with garden tub, separate shower, double vanities and water closet complete the master suite. The 2 secondary bedrooms, full bath and linen closet are found on the opposite side of the house. Additional features of the home include the coat closet and main level laundry; the kitchen area additionally boasts a desk area and additional cabinetry near the dining room which could serve as a butler's pantry.
The attached double garage has an entry into the house at the laundry room and near the kitchen.
| Architectural Styles | Classical, Ranch, Craftsman, Traditional |
| Structure type | Single family home |
| Bedroom Features | Split bedrooms, Main floor master, Walk in closet |
| Kitchen Features | Breakfast nook, Walk in pantry, Country kitchen |
| Additional Room Features | Great/Living room, Main floor laundry |
| Garage Features | Front entry |
| Outdoor spaces | Covered front porch |
| Lot characteristics | Suited for corner lot, Suited for narrow lot, Zero lot lines |
