| First floor | 1587 |
| Second floor | 1909 |
| Total heated | 3496 |
| Unfinished space | 0 |
| Width | 59' 1" |
| Depth | 58' 7" |
| Height | 38' 6" |
| Main roof pitch | 12/12 |
| Main level | 10' 1" |
| 2nd level | 9' 1" |
| Basement Level | 9' 1" |
| Stories | 2 |
| Bedroom | 5+ |
| Bathrooms | 4+ |
| Garage spaces | 3 |
STATELY EXECUTIVE HOME

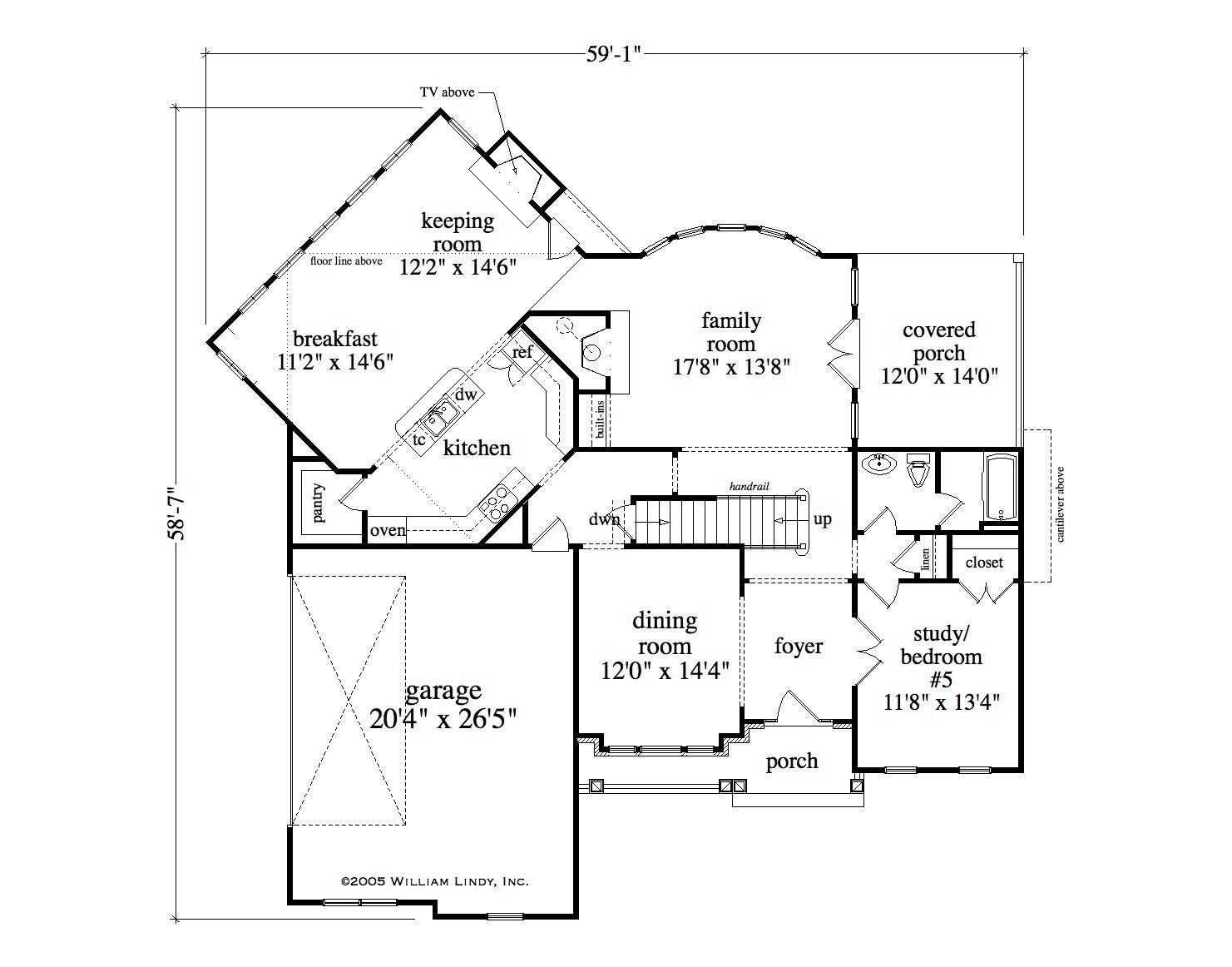

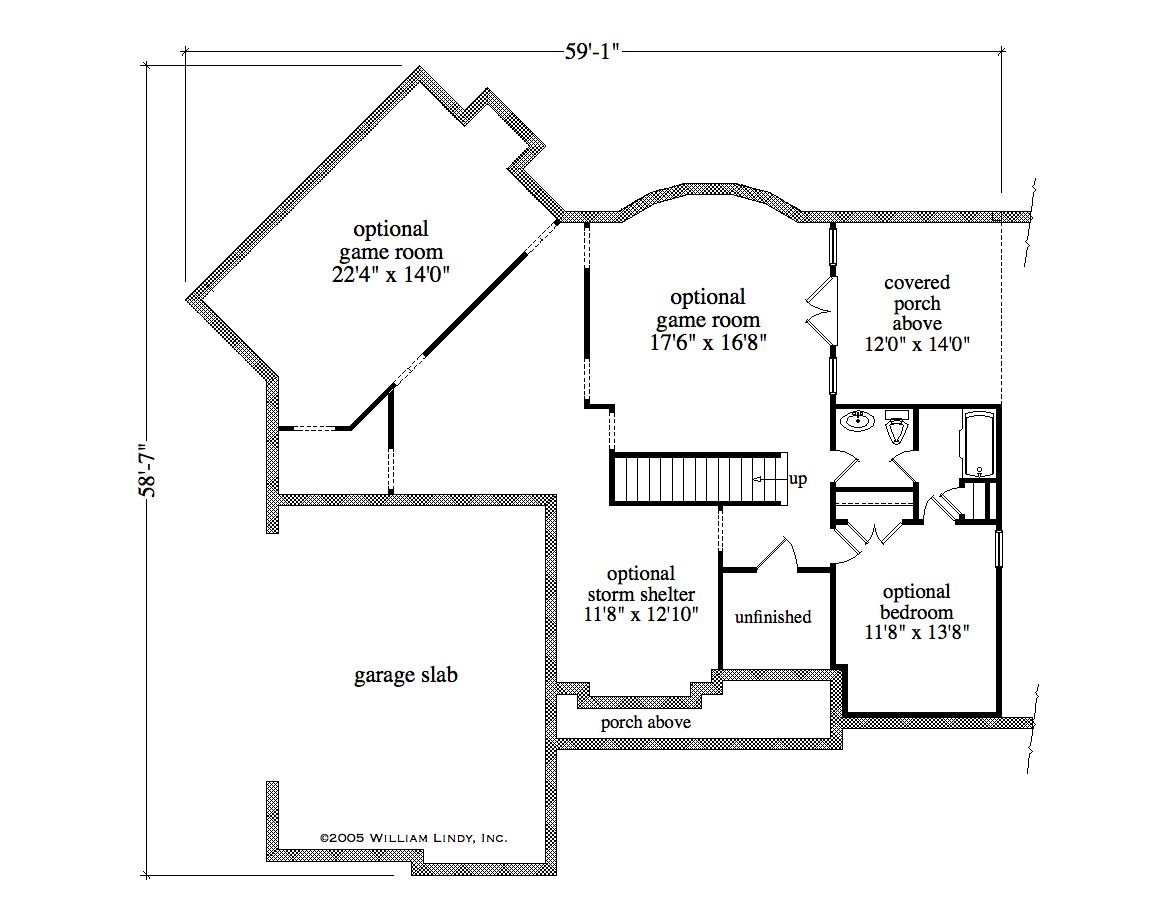

This stately executive home has a very practical floor plan. The front porch invites you into an open, but separate interior. The kitchen, breakfast and keeping room are uniquely angled to create their own gathering space independent of the great room. House guests can have their own space on the first floor with the main level bedroom. Upstairs, the impressive master suite has a large sitting room, oversized closet, separate vanities, and a garden tub with a separate shower. Additionally you will find three secondary bedrooms with a jack and jill bath and a guest room bath. The optionally finished basement leaves plenty of room for storage or additional bedrooms and baths.
| Architectural Styles | Classical, Colonial, Craftsman, Traditional |
| Structure type | Single family home |
| Bedroom Features | Buddy bath, Guest suite, Upstairs bedrooms, Upstairs master, Walk in closet, Main floor guestroom |
| Kitchen Features | Breakfast nook, Kitchen island, Peninsula eating bar, Walk in pantry |
| Additional Room Features | Den/Office/Study, Storage area, Great/Living room, Unfinished space, Hobby/Rec room, Upstairs laundry, Master sitting area |
| Garage Features | Side entry |
| Outdoor spaces | Covered front porch, Covered rear porch |
| Lot characteristics | Suited for corner lot, Suited for view lot, Suited for sloping lot |
About William Lindy House Plans
Codes
Our designs are drawn to meet the 2012 C.A.B.O. / International Residential Code (I.R.C.). These codes may or may not meet the building codes in your area. It is the responsibility of the builder or contractor to ensure that the design meets or exceeds the appropriate code, including local amendments in the area in which the house is to be built.
Cover Sheet
Includes a drawing index, square footage chart, and usually the front and rear elevations.
Exterior Elevations
All elevations are detailed and shown at ¼” scale, usually over two sheets.
Floor Plans and Square Footage
Our floor plans almost always come in ¼” scale with centerline dimensions and are most commonly shown with 4” walls. 6” exterior walls are available as an optional upgrade. Our square feet measurements only include heated floor space. Therefore, a garage would not be included. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided
Foundations
Basement: Our plans generally come with a daylight basement foundation as standard. They are almost always shown as walk-out basements with 10” walls (not counting framed walls).
Slab: Usually an optional upgrade, we show a typical turned down slab.
Crawl Space: Usually an optional upgrade, we show crawl space foundations with 8” walls and ventilation calculations.
Roof
Each plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
Electrical Layout
Each plan includes a “path of light” electrical layout for each floor.
Cabinet and Interior Elevations
We do not include cabinet elevation drawings as they are typically provided by the carpenter or cabinet vendor at no charge. Interior elevations are not provided unless it is essential to understanding the construction of the structure.
Typical Details
Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.
License type and plan sets
Blackline sets
A blackline set of plans is not reproducible (cannot be copied) and comes with a license to construct one home or garage. We offer sets of 5, 8 or even additional copies as an add-on. Garage plan are only offered in 5 set copies, but more can be purchased as an add-on. If you want or need to build more than one structure, a reproducible set is what you will need.
Reproducible sets
A reproducible set of plans comes with an unlimited license to build. There are no restrictions on the number of homes or garages that can be built from the set of plans. The purchaser of the license is the one who can build an unlimited amount of structures. Additionally, reproducible sets can be modified by us, or a qualified builder/designer/architect. Keep in mind, that modifications to any plans are considered a derivative work of the original plan. Additionally, the reproducible license is not transferable to another party.
William Lindy, Inc.
Based just north of Atlanta, in Woodstock, Georgia, William Lindy Residential Designs is a family run business with character and integrity as its foundation. As former home builders, we have in-the-field experience which provides an important perspective in home design. Keeping good design fundamentals in mind, we build each plan on the computer in a three dimensional model (3D), assuring that even complicated roof systems and design changes work with the floor plan. Additionally, we consider building material costs and options while balancing functionality and style. It is important to us to design a home that achieves your goals. Please feel free to call us anytime with questions. We look forward to hearing from you!
