| First floor | 1960 |
| Second floor | 0 |
| Total heated | 1960 |
| Unfinished space | 0 |
| Width | 75' 2" |
| Depth | 75' 10" |
| Height | 23' 10" |
| Main roof pitch | 9/12 |
| Main level | 9' 1" |
| 2nd level | 1' 0" |
| Basement Level | 9' 1" |
| Stories | 1 |
| Bedroom | 2 |
| Bathrooms | 2.5 |
| Garage spaces | 2 |
SONORA MOUNTAIN - MOUNTAIN RANCH
This Craftsman ranch with a front porch and angled garage is perfect for a sloping lot with a view and the open concept floor plan works well with today's casual lifestyle. Making a statement as soon as you enter the house is the spacious vaulted great room with its wall of windows to draw you in for the view. Open to the dining room and island kitchen, the great room also features a fireplace and built-ins. A popular feature is the split bedroom plan with the master suite located on the right side of the house and the guest suite on the front left corner. Note the angled bath and two walk-in closets in the master suite along with a trey ceiling in the bedroom area. You'll also find a half bath, walk-in pantry, linen and coat closets and a terrific laundry room located near the entry into the garage.

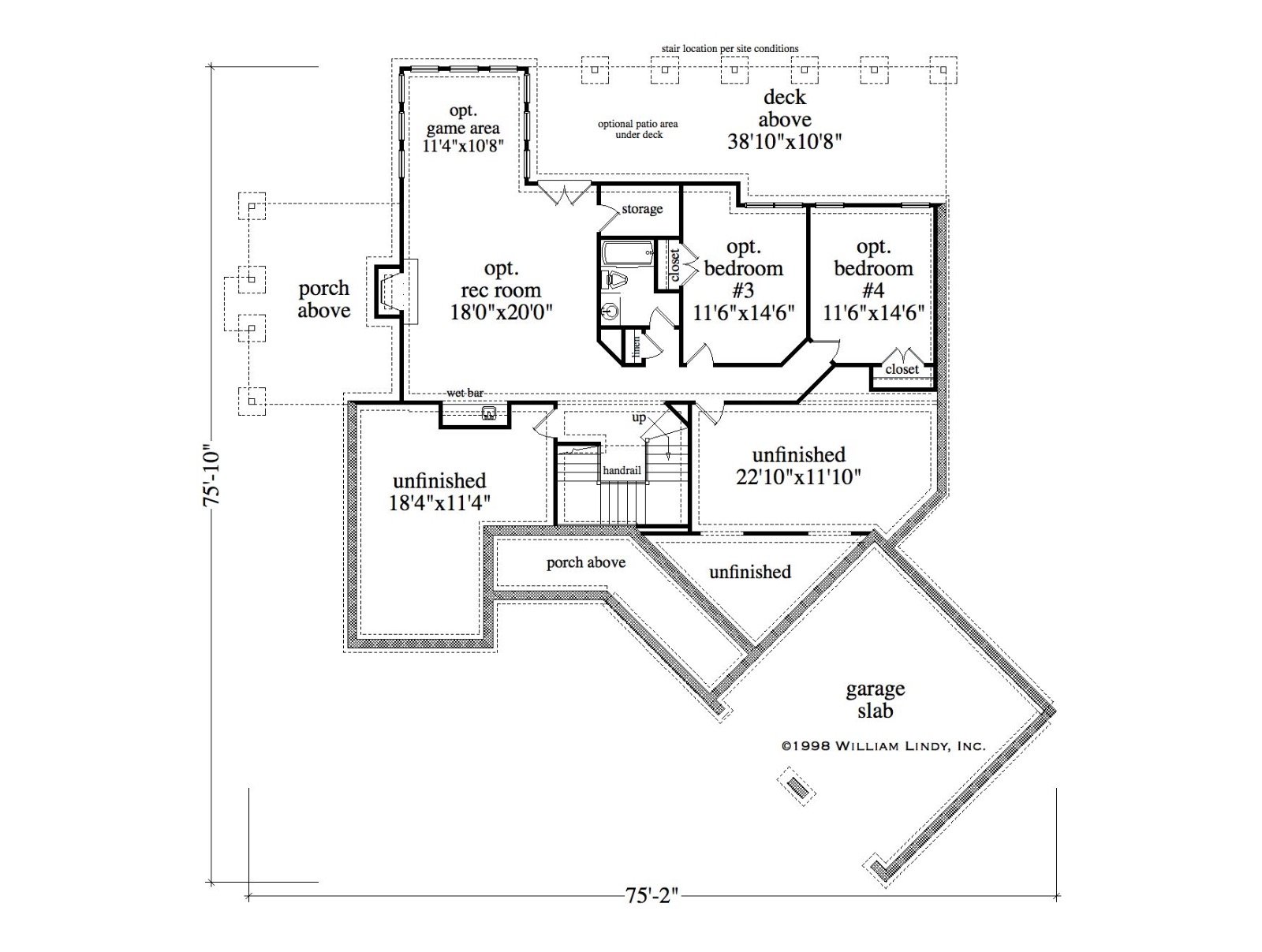

The terrace level allows you to increase the house from two bedrooms, two and a half baths to three or four bedrooms and three and a half baths plus rec or media room, game room, office or whatever suits your needs.
| Architectural Styles | Cabin, Cottage, Ranch, Country, Craftsman, Traditional |
| Structure type | Single family home |
| Bedroom Features | Split bedrooms, Guest suite, Main floor master, Walk in closet, Main floor guestroom |
| Kitchen Features | Kitchen island, Walk in pantry, Country kitchen |
| Additional Room Features | Storage area, Great/Living room, Unfinished space, Hobby/Rec room, Main floor laundry |
| Garage Features | Front entry |
| Outdoor spaces | Covered front porch, Screened porch, Grill deck sundeck |
| Lot characteristics | Suited for view lot, Suited for sloping lot |
