| First floor | 820 |
| Second floor | 820 |
| Third floor | 820 |
| Basement (finished) | 820 |
| Total heated | 3280 |
| Width | 50' 600" |
| Depth | 53' 636" |
| Main level | 9' 108" |
| 2nd level | 9' 108" |
| Stories | 3+ |
| Bedroom | 4 |
| Bathrooms | 4+ |
| Garage spaces | 4 |
EXCLUSIVE CURRENCY THEMED 4 BEDROOM VILLA
STRUCTURAL & MEP DESIGNS WILL BE COMMISSIONED AFTER SALE WITH CLIENT SPECIFICATIONS ARE ALIGNED WITH THE DESIGN.
TOTAL BUILT UP AREA 1910 sq m / 21097.26 sq-ft
TOTAL LENGTH X WIDTH 16.3 m X 15.3 m / 53.5 ft X 50.2 ft.
LEVELS :Basement + Ground Floor + First floor + Second floor .
| Architectural Styles | Beach, Modern, Contemporary, Craftsman, Split level |
| Structure type | Multi family |
| Bedroom Features | Guest suite, Upstairs bedrooms, Upstairs master, Walk in closet |
| Kitchen Features | Breakfast nook, Kitchen island, Kitchenette wet bar, Walk in pantry |
| Additional Room Features | Den/Office/Study, Media room, Exercise room, Finished third floor, Finished basement, Storage area, Great/Living room, Hobby/Rec room, Library room, Wet bar, Main floor laundry, Wine cellar, Master sitting area |
| Garage Features | Carport |
| Outdoor spaces | Breezeway, Loft balcony, Courtyard, Outdoor kitchen, Covered front porch, Screened porch, Covered rear porch, Grill deck sundeck |
| Lot characteristics | Suited for view lot, Suited for narrow lot, Zero lot lines |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

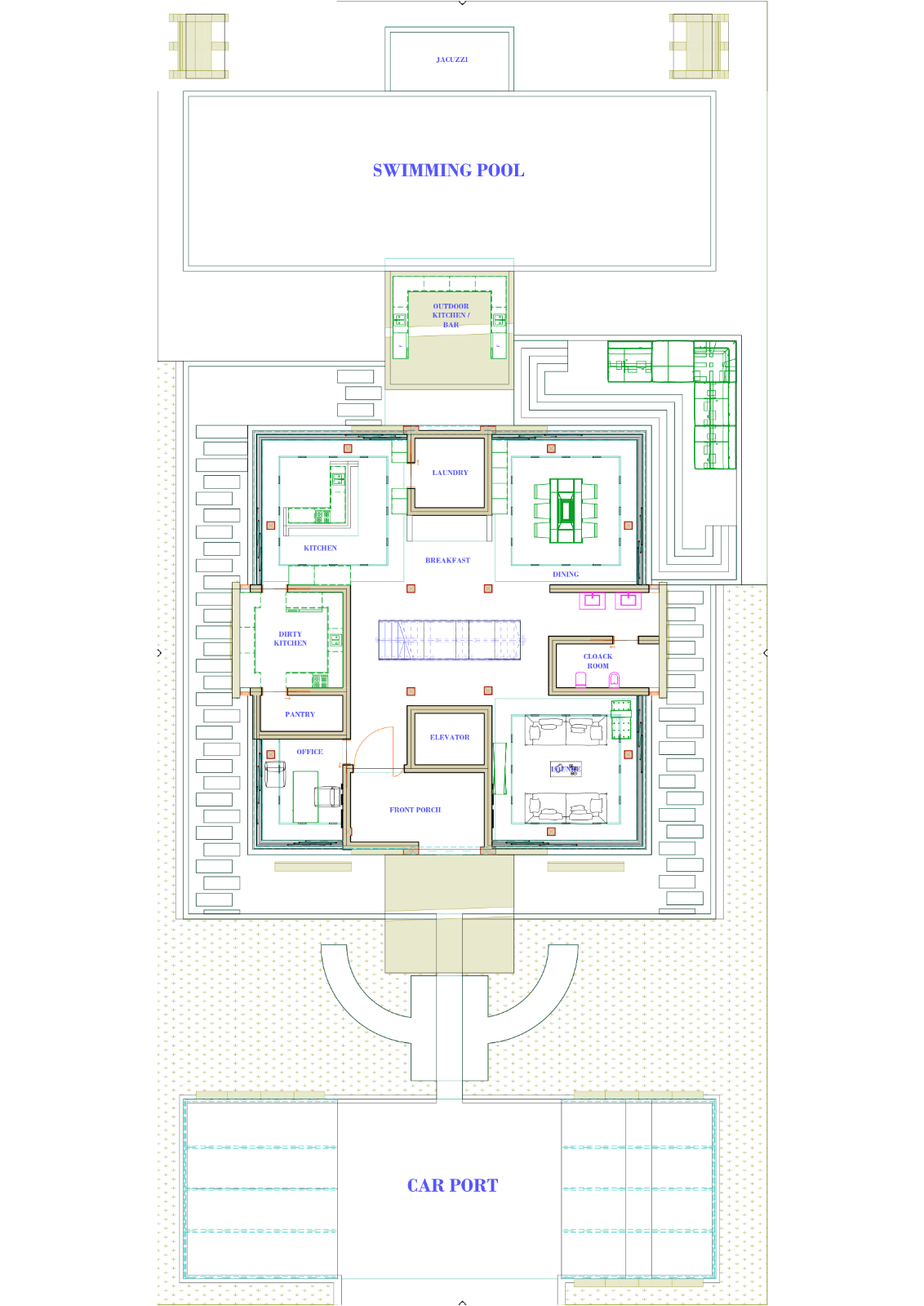

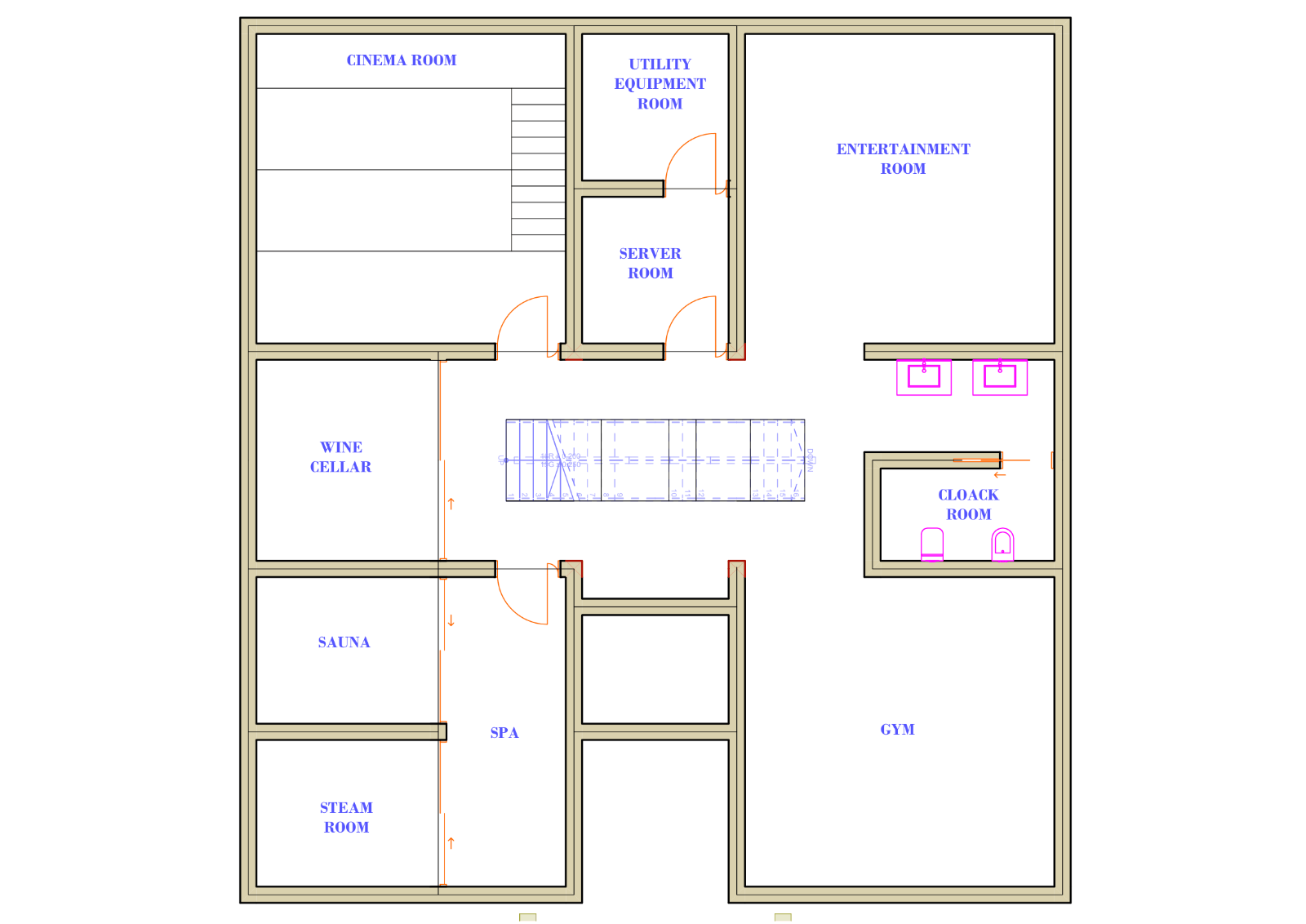

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
