VILLA GOLD
VILLA GOLD
| AMG Plan Studio
AMG Plan Studio
7532 Sq Ft | 5+ Bed | 4+ Bath | 1 Story | 2 Garage | dim
Width 59 | Depth 36
|
$ 1500

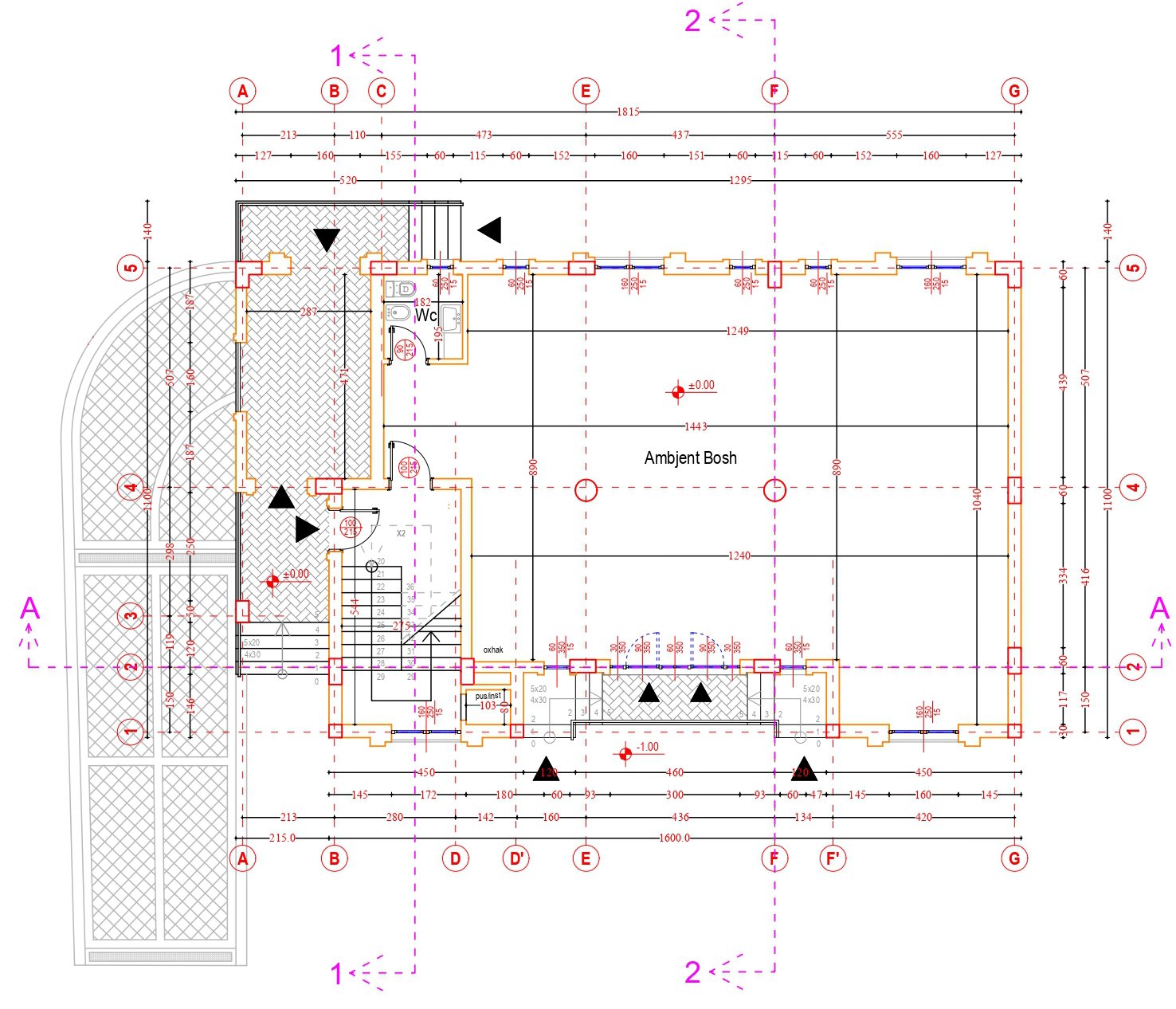

First floor plan
Kati perdhe
Second floor plan
Kati i pare
Basement
Bodrum
Square footage
First floor 1883
Second floor 1883
Third floor 1883
Basement (finished) 1883
Total heated 7532
Dimensions
Width 59' 18"
Depth 36' 11"
Height 56' 17"
Main roof pitch 7/12
Ceiling heights
Main level 17' 5"
2nd level 11' 3"
3d level 11' 3"
Basement level 11' 3"
Main features
Stories 1
Bedroom 5+
Bathrooms 4+
Garage spaces 2

This house model is a neo-classic modern architectural style, designed for a client. In this project you will find 75 papers project, 19 A3 paper for the Architectural Project and 56 A3 paper for the structural project. Also you will find this files in dwg and 3d sktecthup if needed.  In this house model are avilable also the HVAC project, electric project and the heating-cooling project, not included in this package but available with extra payment. The main materials used in these project are concrete, brick, decorative brick, glass, wood and steel for the roof construction. This house is actually building up in Elbasan city, Albania. You can contact us  for further information.

Full specifications and features
Architectural Styles Modern, Classical, Neoclassical, Contemporary, European
Structure type
Bedroom Features Upstairs bedrooms, Main floor guestroom, Two master suites
Kitchen Features Kitchen island, Peninsula eating bar
Additional Room Features Finished third floor, Great/Living room, Upstairs laundry
Garage Features Garage under
Outdoor spaces Loft balcony, Covered front porch, Covered rear porch
Lot characteristics Zero lot lines
What's included?

Cover sheet

An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.


Floor plan(s)

Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.


Exterior elevations

Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.


Interior elevations

These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.


Roof plan

Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.


Foundation plan

This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.


Cross-section details

These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.

Logo a4  me sfond  per dokumenta

AMG Plan Studio

I am a 6+ year architect living and working in Elbasan, Albania. I work in AMG Plan Studio (family business) as an architect, where our job is to create various architectural and construction projects, according to the client requests. Here i am publishing some of our projects. Some of them are already build up. We are full time available in our inbox: amgplanstudio@gmail.com; Whatsapp +355699494475. You can see our project samples and you can modify them if needed, by your preferences in surface, volumetry and materials used. For each procject, we will provide all the detailed project package for the construction, in Autocad drawings, Sketchup or PDF as requested.
