| First floor | 1899 |
| Second floor | 647 |
| Third floor | 0 |
| Basement (finished) | 942 |
| Total heated | 3488 |
| Garage | 700 |
| Width | 66' 6" |
| Depth | 53' 0" |
| Height | 26' 0" |
| Main roof pitch | 4/12 |
| Main level | 10' 0" |
| 2nd level | 9' 0" |
| Lower Floor | 9' 0" |
| Main fl. vaults | 17' 0" |
| Rec Room | 20' 0" |
| Stories | 3+ |
| Bedroom | 3 |
| Bathrooms | 3.5 |
| Garage spaces | 3 |
Maxon
MM-3488-M

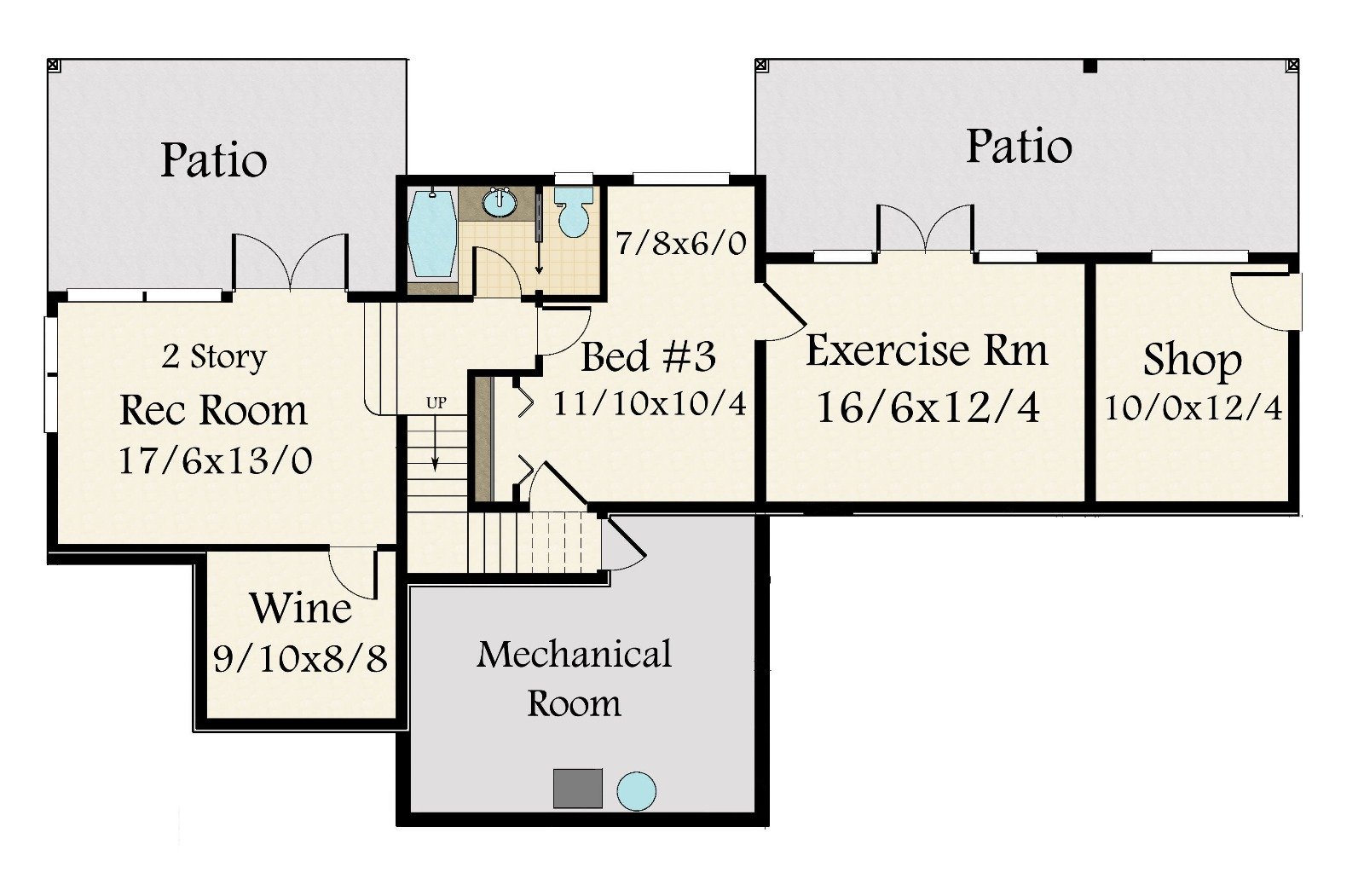

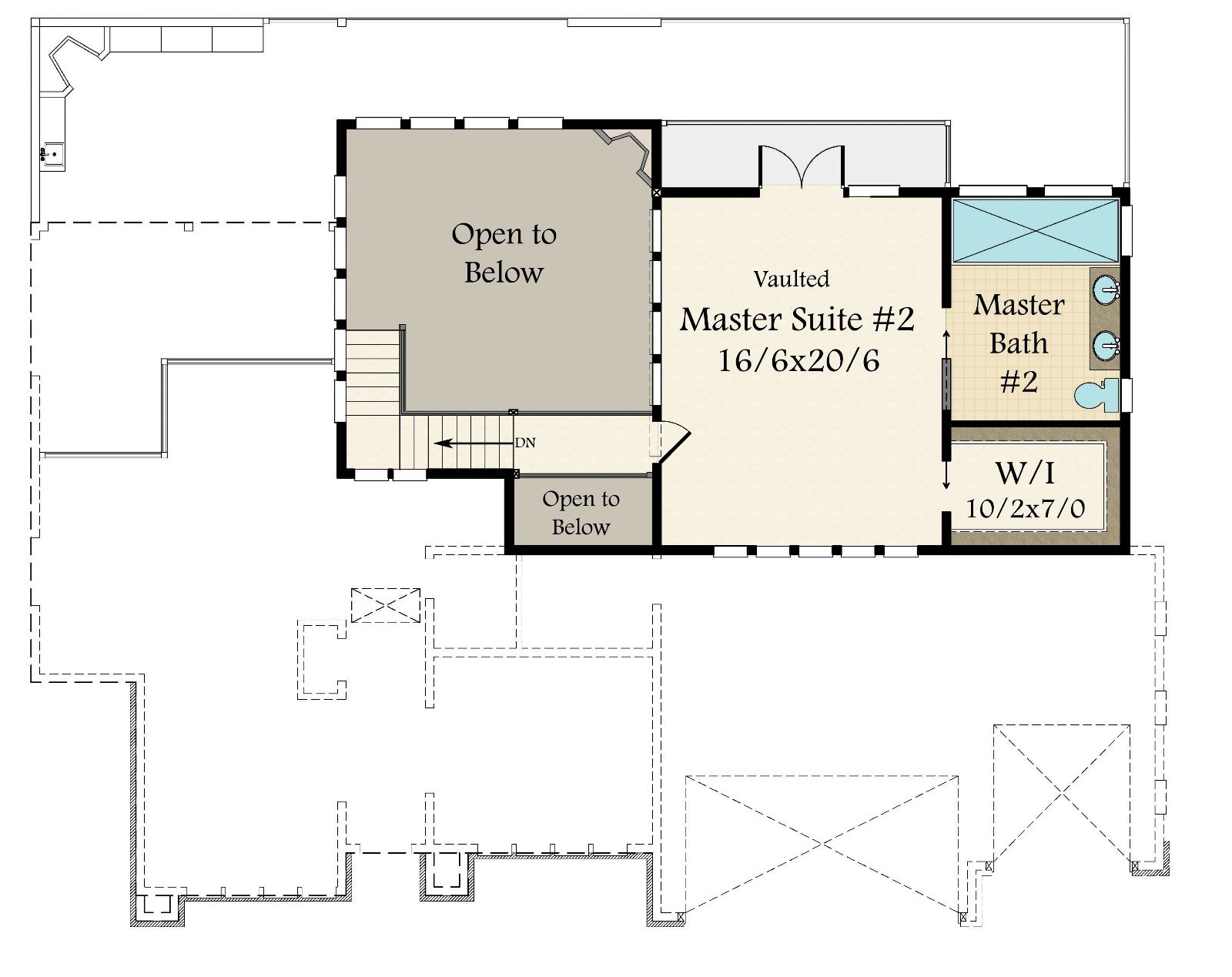

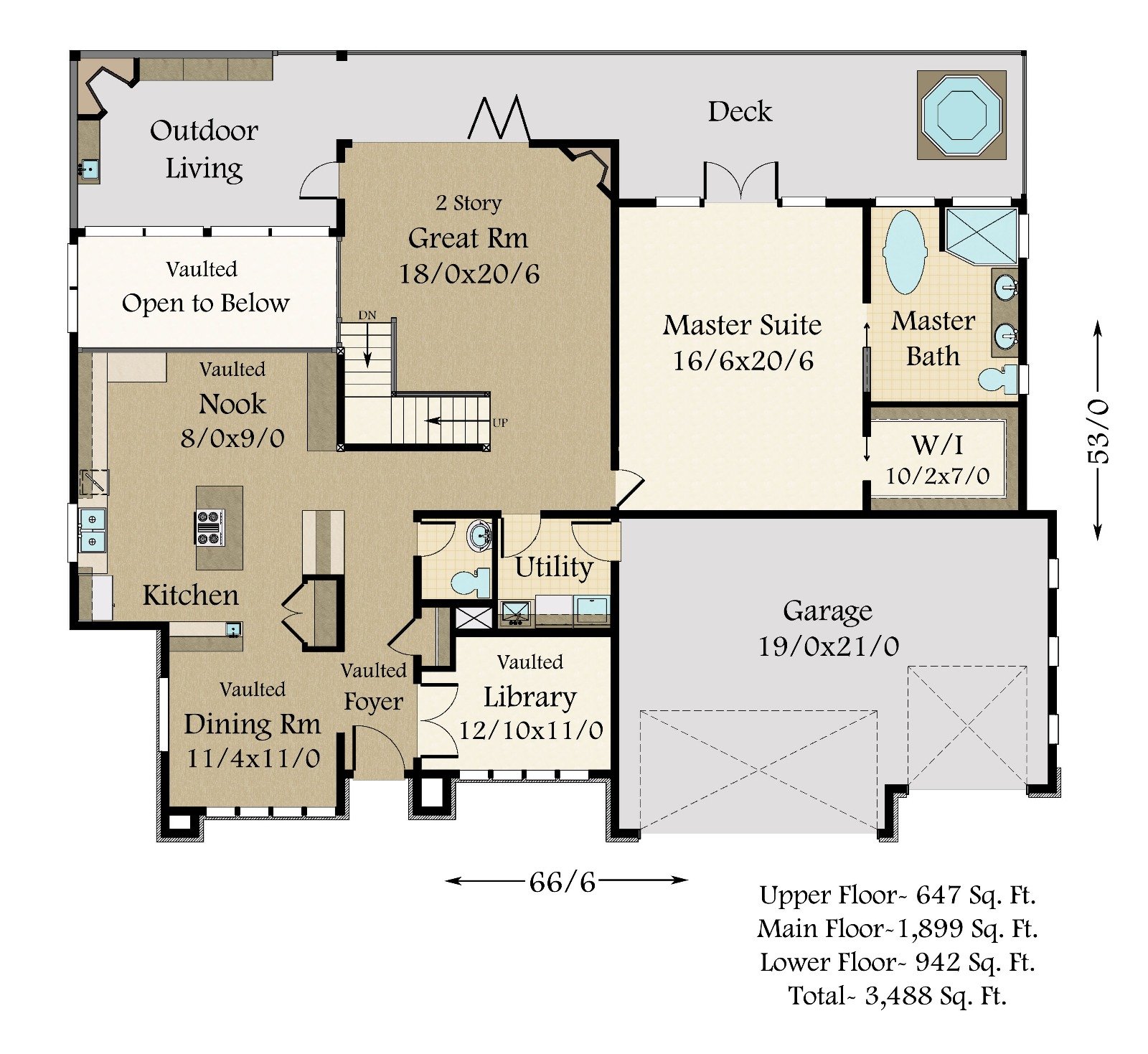

A gorgeous example of our northwest modern style. This home, with its sprawling floor plan, has an incredible amount of functionality to offer. From the moment you enter the home you are greeted by a vaulted library and a vaulted dining room on either side. Just of the kitchen, you’ll find a vaulted nook and a corridor leading to the 2 story great room. Off the great room you’ll find the first master suite, which connects to the large deck at the rear of the home. Upstairs is the second master suite that looks out over the great room. The lower floor houses a 2 story rec room, a wine cellar, a shop, an exercise room, and a third bedroom complete with full bath. This home is feature-rich and sure to be a smash hit wherever it is built.
| Architectural Styles | Beach, Modern, Contemporary |
| Structure type | Single family home |
| Bedroom Features | Buddy bath, Split bedrooms, Guest suite, Upstairs bedrooms, In law suite, Upstairs master, Main floor master, Walk in closet, Two master suites |
| Kitchen Features | Breakfast nook, Kitchen island, Butlers pantry, Peninsula eating bar, Kitchenette wet bar, Country kitchen |
| Additional Room Features | Den/Office/Study, Media room, Exercise room, Finished third floor, Finished basement, Storage area, Great/Living room, Hobby/Rec room, Library room, Wet bar, Main floor laundry, Wine cellar, Master sitting area |
| Garage Features | Oversized |
| Outdoor spaces | Loft balcony, Outdoor kitchen, Covered front porch, Covered rear porch, Grill deck sundeck |
| Lot characteristics | Suited for view lot, Suited for sloping lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
