| Second floor | 575 |
| Total heated | 575 |
| Garage | 575 |
| Unfinished space | 75 |
| Width | 23' 0" |
| Depth | 25' 0" |
| Height | 28' 10" |
| Main roof pitch | 9/12 |
| Main level | 14' 11" |
| Garage | 9' 6" |
| Stories | 2 |
| Bedroom | 1 |
| Bathrooms | 1 |
| Garage spaces | 2 |

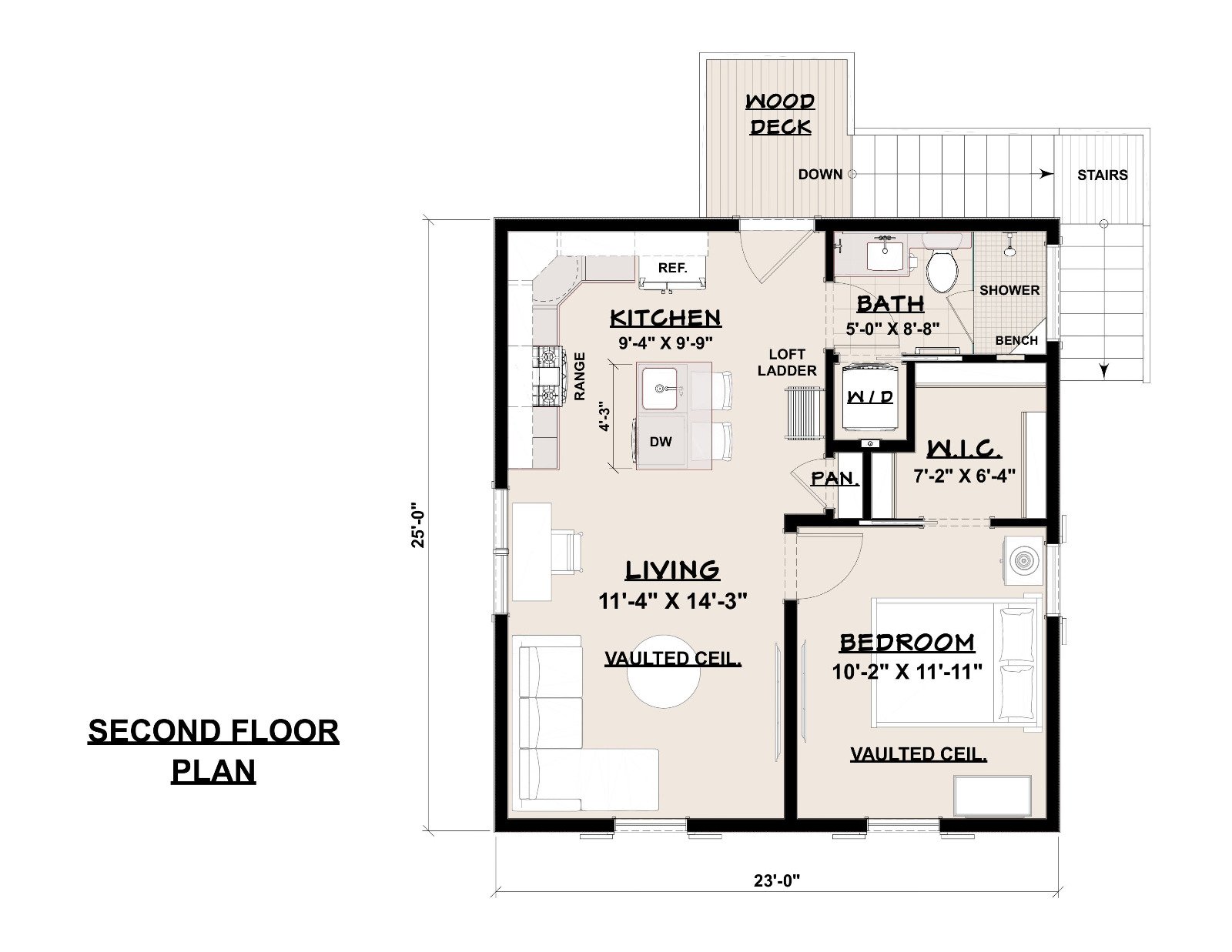

When you enter the upstairs apartment, you will be greeted with high vaulted ceilings and an open living area / kitchen. The full size kitchen has generous counter space, full-size appliances, a pantry, and an island for seating. The living area has plenty of room for a large sectional and office desk...perfect for working and relaxing.
The separate large bedroom has high vaulted ceilings and space for a king-size bed. The bedroom also features a generous walk-in closet. The bathroom includes abundant counter space and a luxurious walk-in tiled shower. The bathroom also includes a stackable full-size washer / dryer behind a separate door.

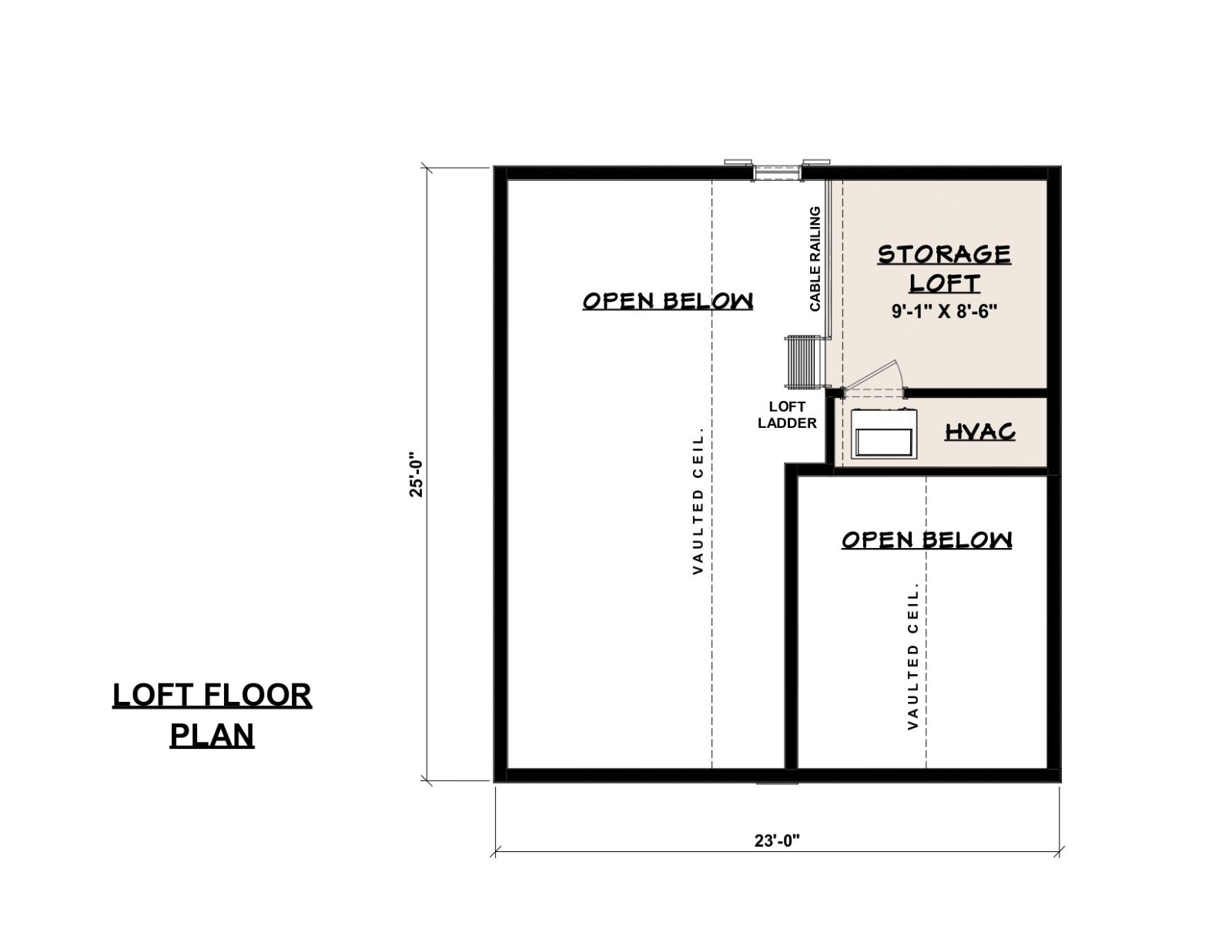

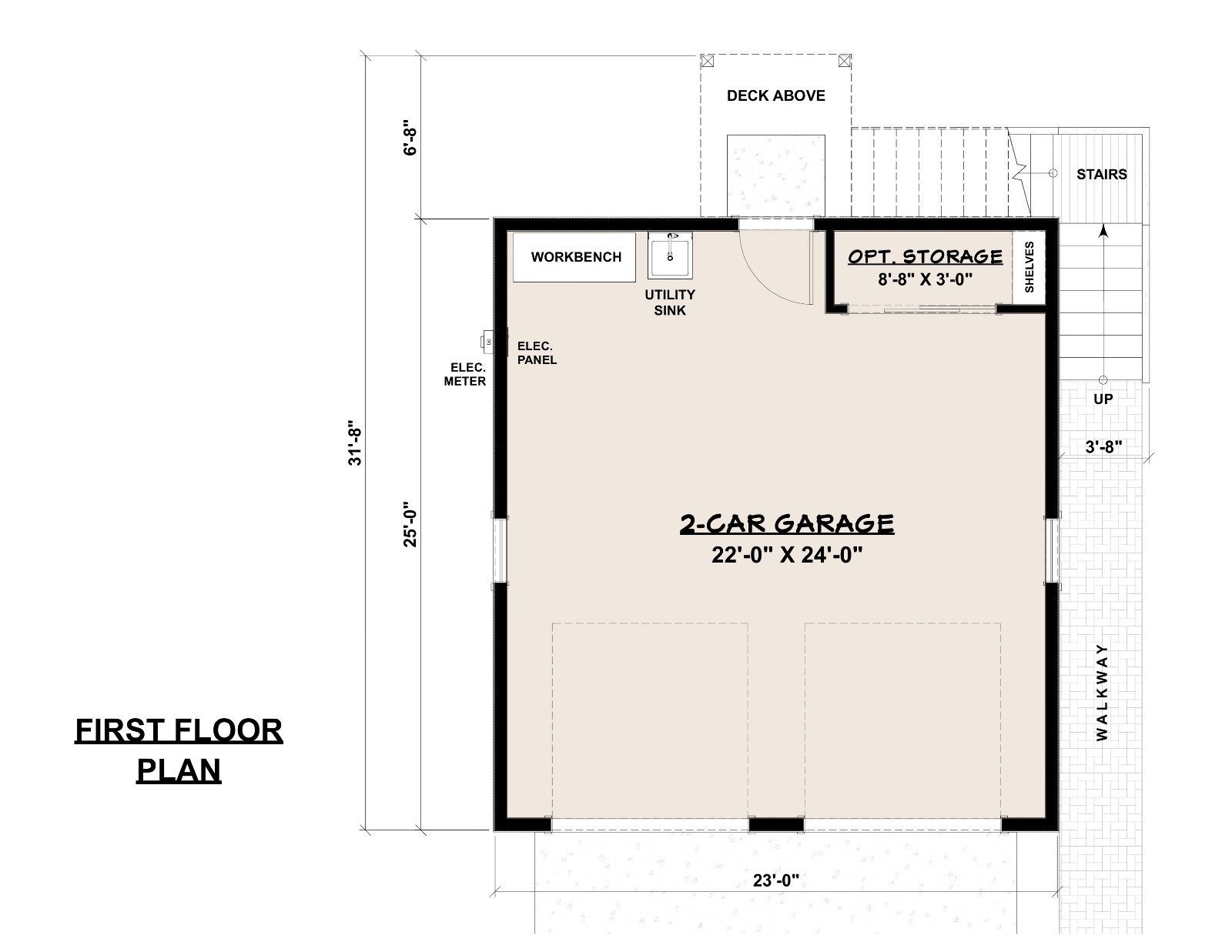

Going up the retractable ladder, the bonus loft can be used for storage, or it can even be used as a hobby space or office as well. The outside deck has room for a full-size grill or just to relax outside. Downstairs, the oversized garage has an optional storage closet and space for a workbench and sink.
| Architectural Styles | Beach, Low country, Contemporary, Cottage, Southern, Traditional, Farmhouse |
| Structure type | Accessory structures, Garage and workshop, Single family home, Garage w/ living space, Tiny house |
| Bedroom Features | Walk in closet |
| Kitchen Features | Kitchen island |
| Additional Room Features | Storage area |
| Garage Features | Garage under, Oversized |
| Outdoor spaces | Grill deck sundeck |
| Lot characteristics | Suited for view lot, Suited for narrow lot |
Title sheet
All of the project information is included, including project data and square footage.
Floor Plan(s)
Set of detailed plans for each floor, showing the room layouts, door and window locations, full dimensions and any pertinent building notes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, etc.
Exterior Elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials, roof slope, and all applicable building notes.
Interior Elevations
When included, these drawings show a suggested layout design of kitchens, cabinets, built-ins and other interior features.
Roof Plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design, including all roof materials.
Foundation Plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-sections / Construction Details
These drawings are vertical cutaways views of your home, detailing important relationships from one floor level to another, including changes in ceiling and roof heights, and also shows builders how to frame the new home.
Electrical & Lighting Plans
These show the suggested locations of all the electrical outlets, wall switches, light fixtures, wall sconces, electrical panel, and anything else related to the electrical and lighting systems.
