| First floor | 144 |
| Second floor | 144 |
| Total heated | 288 |
| Width | 39' 4" |
| Depth | 37' 7" |
| Height | 34' 5" |
| Main roof pitch | 6/12 |
| Main level | 9' 10" |
| 2nd level | 9' 10" |
| Stories | 2 |
| Bedroom | 5+ |
| Bathrooms | 4+ |
| Garage spaces | 0 |
This luxury mansion plan is a contemporary Nigerian residence designed for elegance, comfort, and functionality. The layout features a spacious main lounge, family room, and dining area, complemented by a modern kitchen and kitchenette. The master suite includes a walk-in closet, ensuite bath, and private balcony, while additional bedrooms are thoughtfully arranged across both levels for family and guests.
Architectural highlights include curtain walls, covered porches, and a loft balcony that maximize natural light and views. The design integrates reinforced concrete slab foundation, durable finishes, and detailed schedules for doors, windows, and curtain walls ensuring both structural integrity and aesthetic appeal.
This plan is ideal for corner lots or view lots, offering flexibility with add-ons such as reverse plan, material list, and additional copies. Buyers can choose between PDF sets, CAD files, or printed plan sets, making it suitable for homeowners, contractors, and developers alike.
| Architectural Styles | Mediterranean, Modern, Contemporary, Traditional |
| Structure type | Duplex plans, Single family home |
| Bedroom Features | Upstairs bedrooms, Upstairs master, Walk in closet, Main floor guestroom |
| Kitchen Features | Peninsula eating bar, Kitchenette wet bar |
| Additional Room Features | Storage area, Great/Living room, Upstairs laundry, Main floor laundry, Master sitting area |
| Garage Features | Carport |
| Outdoor spaces | Loft balcony, Covered front porch, Covered rear porch |
| Lot characteristics | Suited for corner lot, Suited for view lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

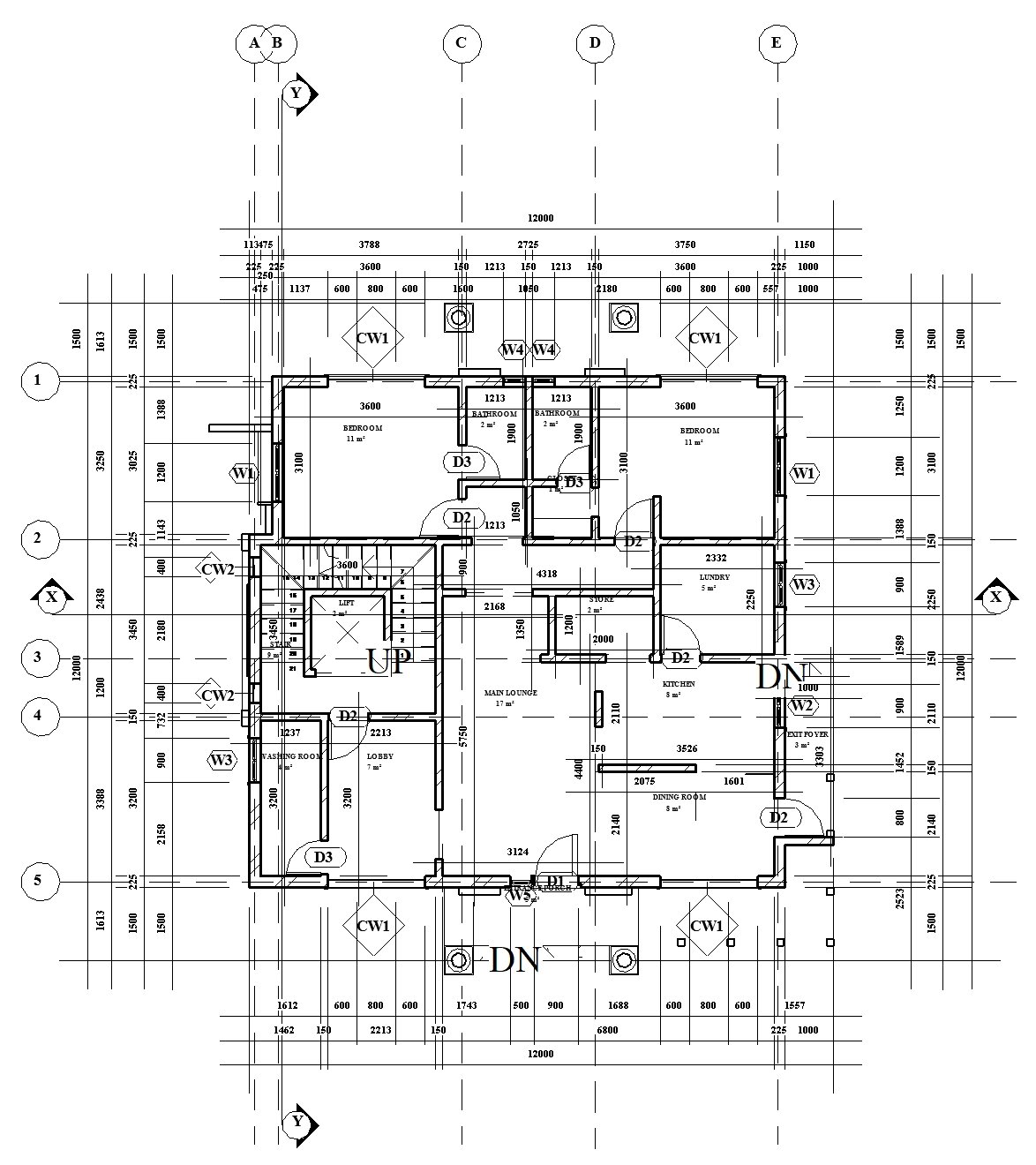

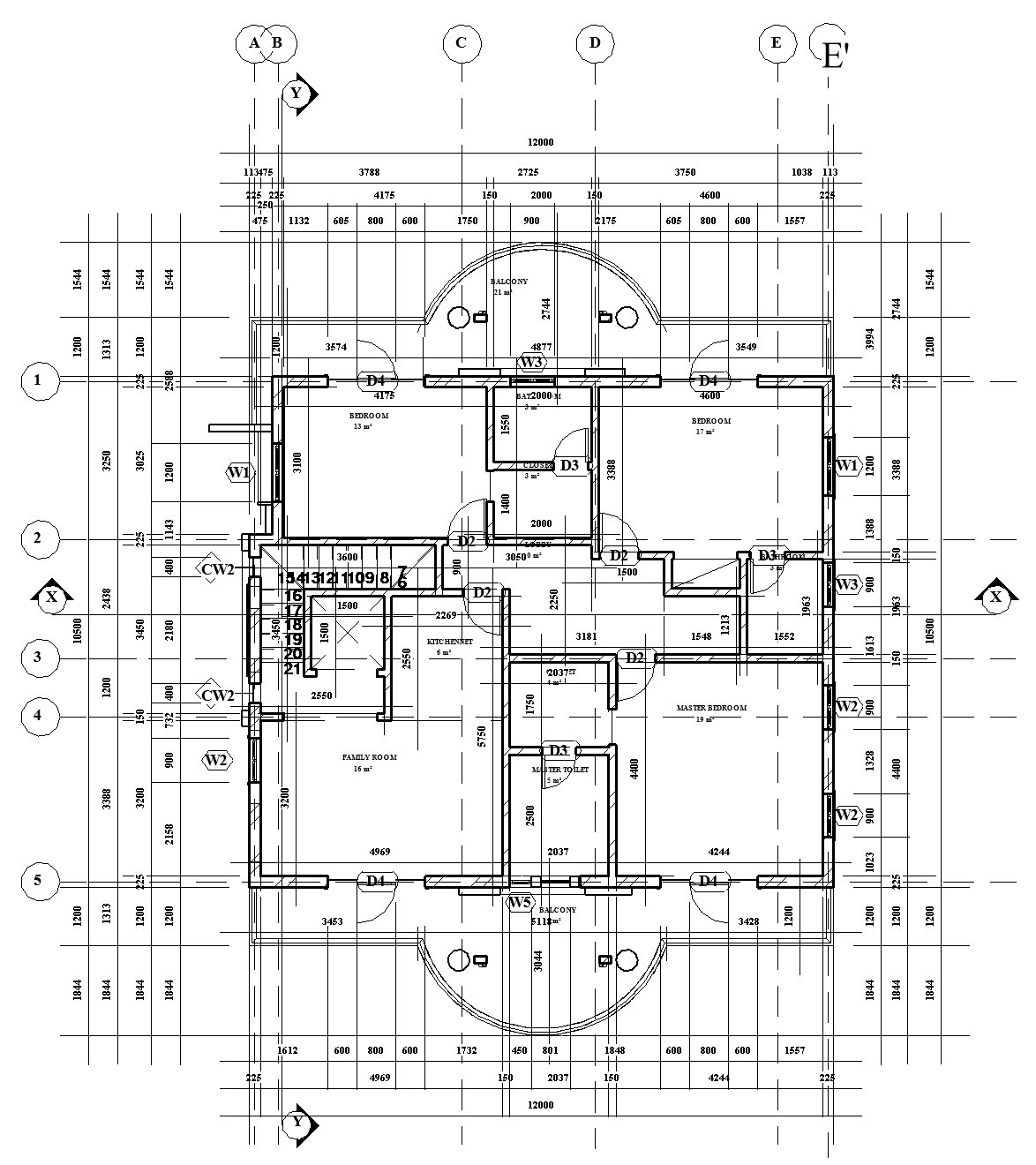

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.

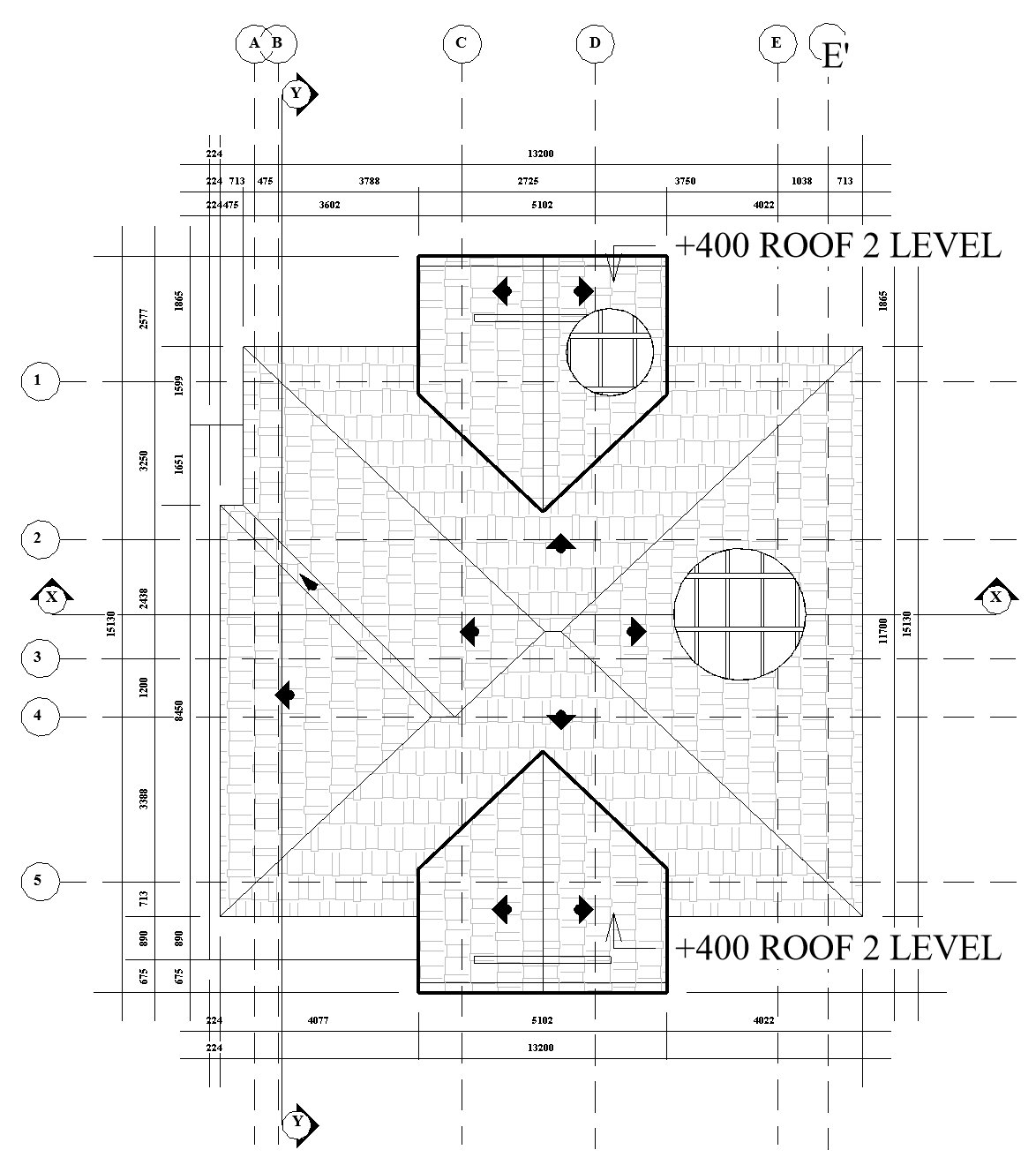

Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
