| First floor | 2840 |
| Second floor | 1900 |
| Total heated | 4740 |
| Width | 50' 0" |
| Depth | 90' 0" |
| Main roof pitch | 11/0 |
| Main level | 11' 0" |
| 2nd level | 10' 0" |
| Stories | 1 |
| Bedroom | 5+ |
| Bathrooms | 4+ |
| Garage spaces | 1 |

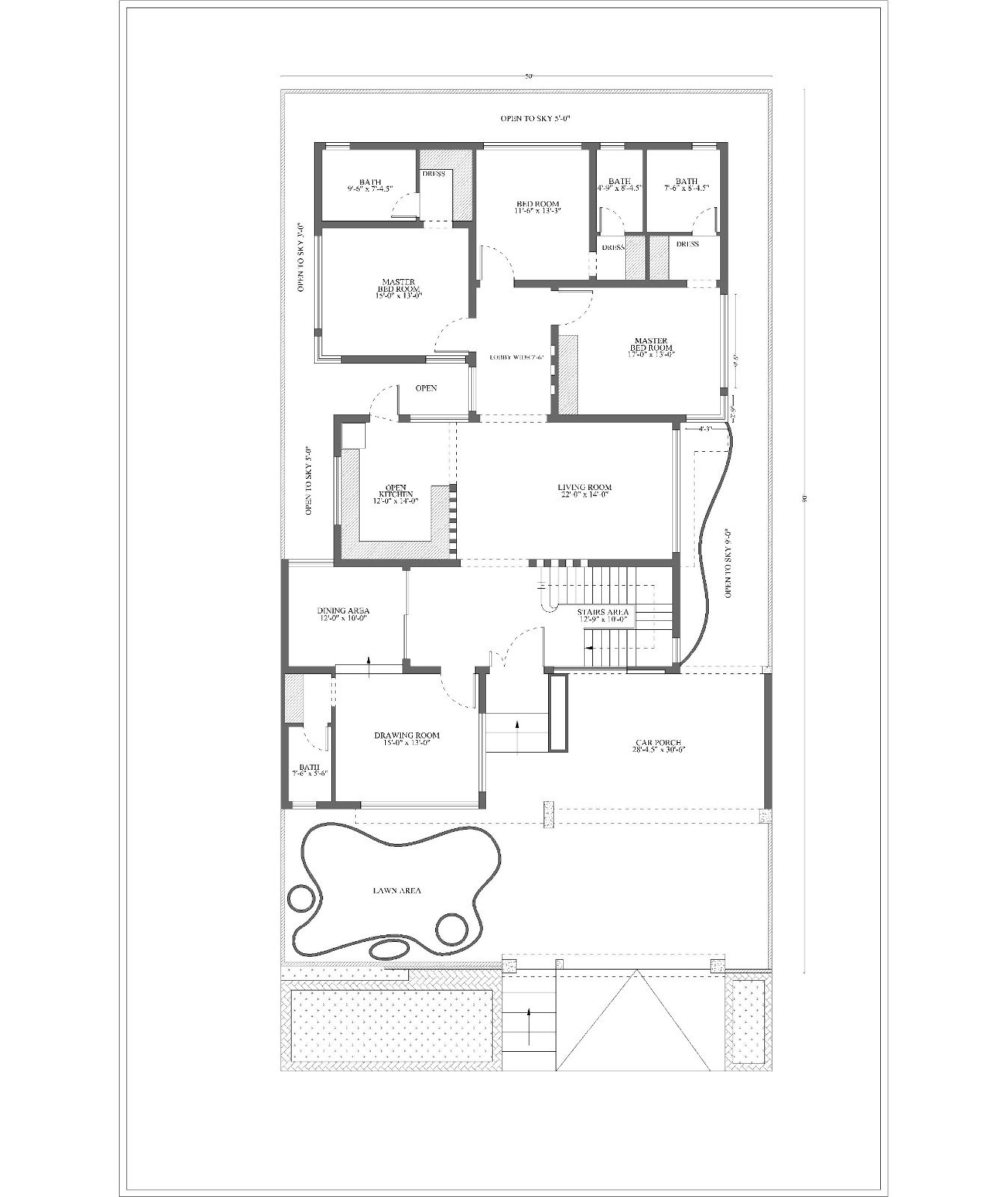

This is a 1 kanal double story house plan , 50x90. there are three bedoroms on ground floor with attach baths. there is a kitchen, living area, drawing room and a dining area also on ground floor.
two bedrooms with attach baths on 1st floor.
plan can be revised as per client's requirements.
| Architectural Styles | Modern, Traditional |
| Structure type | Duplex plans |
| Bedroom Features | Main floor master |
| Kitchen Features | Country kitchen |
| Additional Room Features | Storage area |
| Garage Features | Oversized |
| Outdoor spaces | Loft balcony, Courtyard |
| Lot characteristics | Suited for corner lot, Suited for narrow lot, Zero lot lines, Suited for sloping lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
