| First floor | 906 |
| Second floor | 1809 |
| Third floor | 742 |
| Total heated | 3457 |
| Garage | 575 |
| Width | 35' 0" |
| Depth | 63' 8" |
| Height | 34' 3" |
| Main roof pitch | 34/3 |
| Main level | 9' 1" |
| 2nd level | 8' 1" |
| ground floor | 8' 0" |
| Stories | 3+ |
| Bedroom | 5+ |
| Bathrooms | 4+ |
| Garage spaces | 2 |
It was designed with function in mind. The extra bedroom on the main living level is a big plus. The two story foyer, although dramatic, can easily be floored in to create a small home office, or exercise area. The ground floor provides many options for its use. An additional inlaw suit with bedroom and full bath behind the 2 car garage. Beauiful house, very spacious with plenty of room and storage
| Architectural Styles | Beach, Modern, Craftsman |
| Structure type | Garage w/ living space |
| Bedroom Features | Guest suite, In law suite, Walk in closet |
| Kitchen Features | Walk in pantry |
| Additional Room Features | Mud room, Great/Living room, Main floor laundry |
| Garage Features | |
| Outdoor spaces | |
| Lot characteristics |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

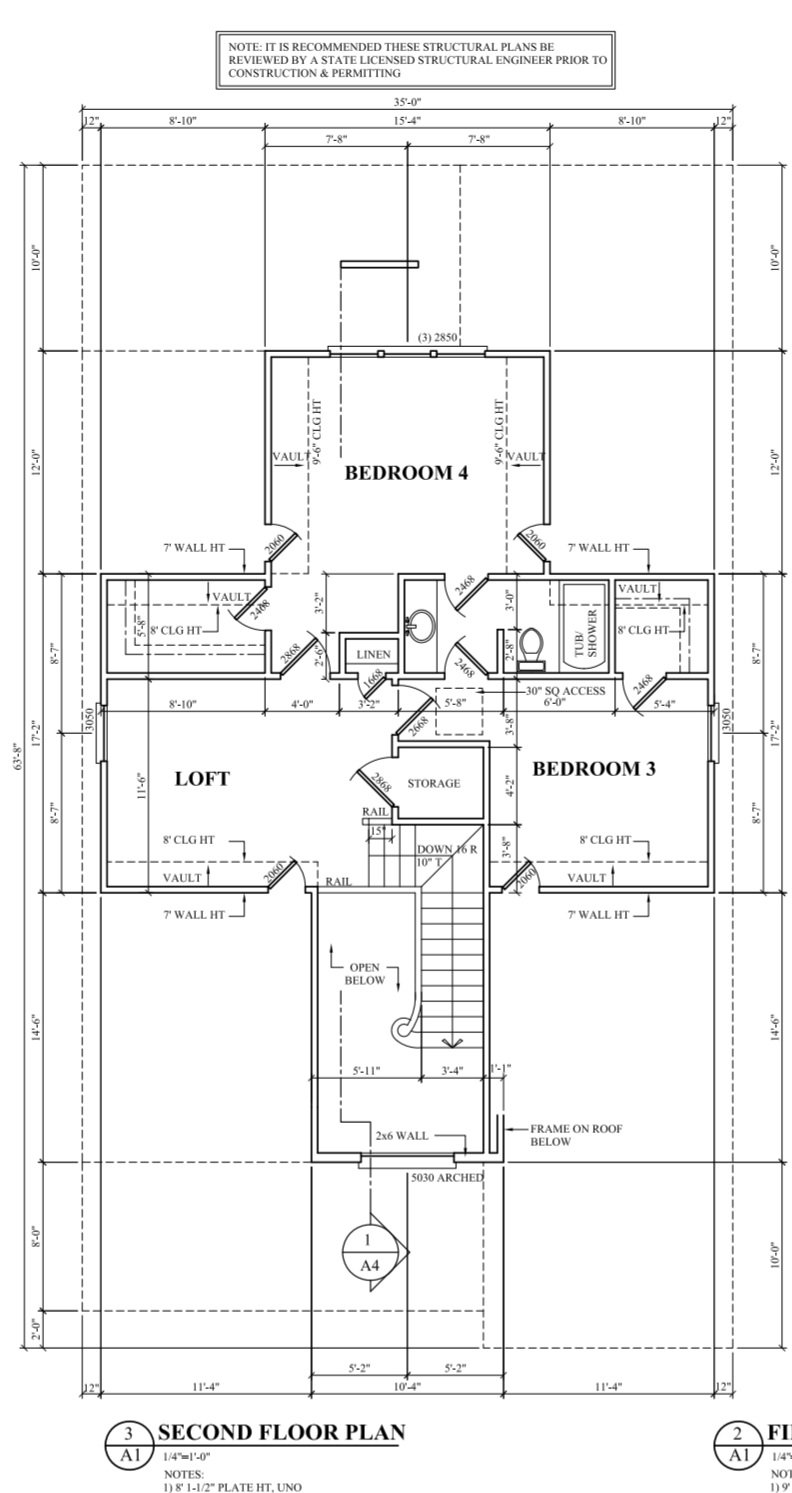

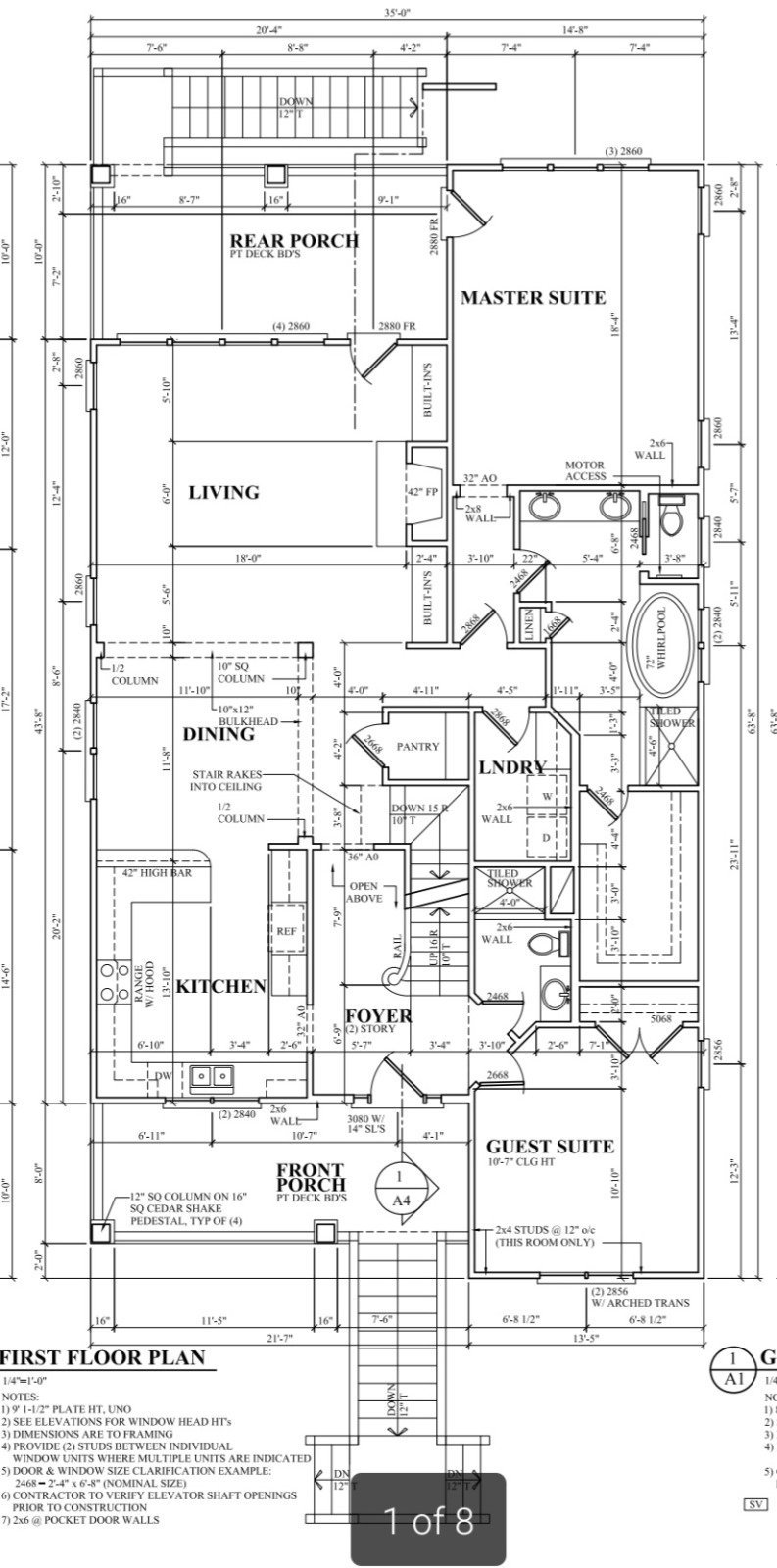

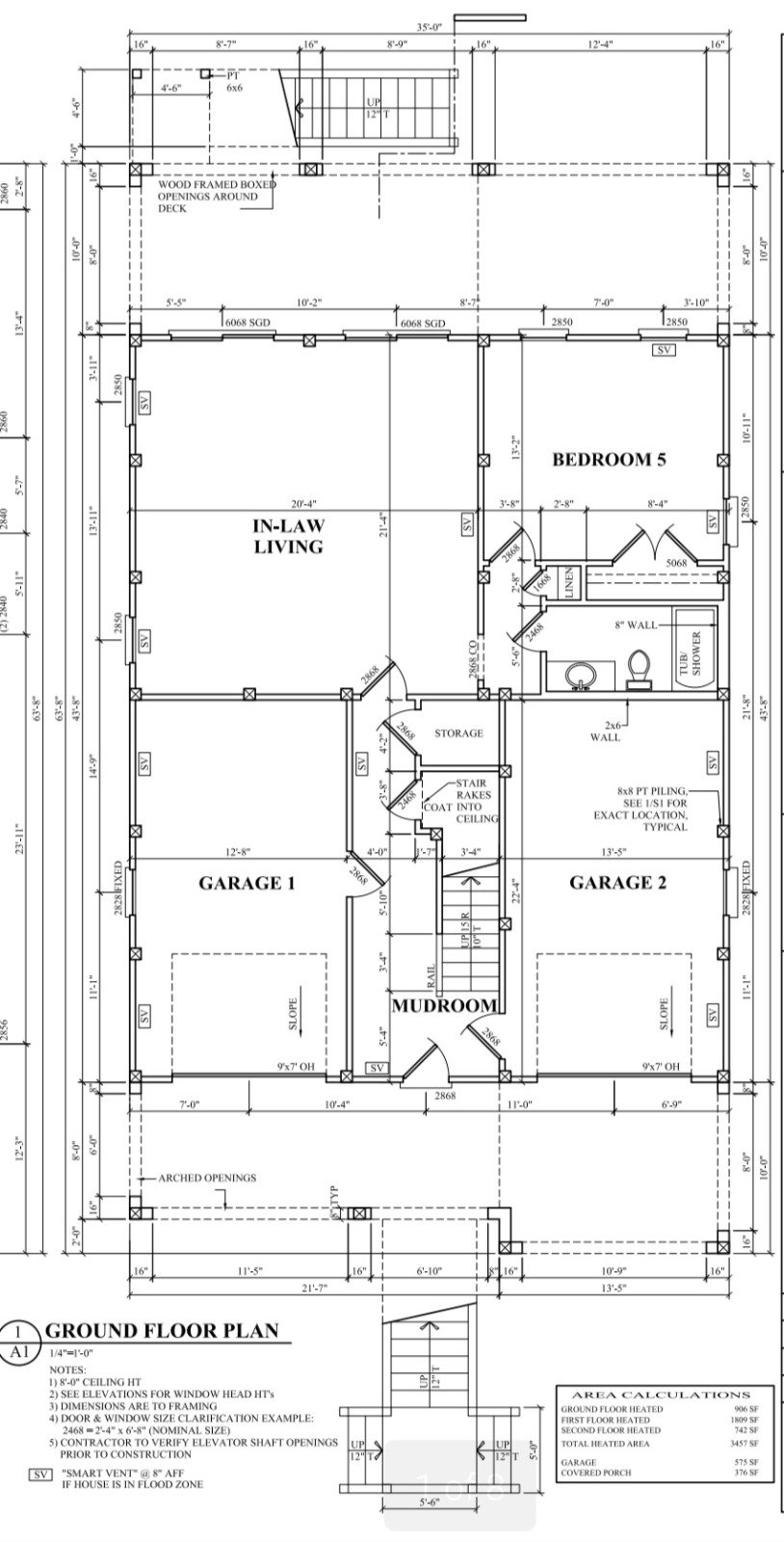

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
