The Cheshire
The Cheshire
| Retro+Fit Design LLC.
Retro+Fit Design LLC.
2664 Sq Ft | 3 Bed | 2.5 Bath | 2 Story | 2 Garage | dim
Width 50 | Depth 50
$ 2800

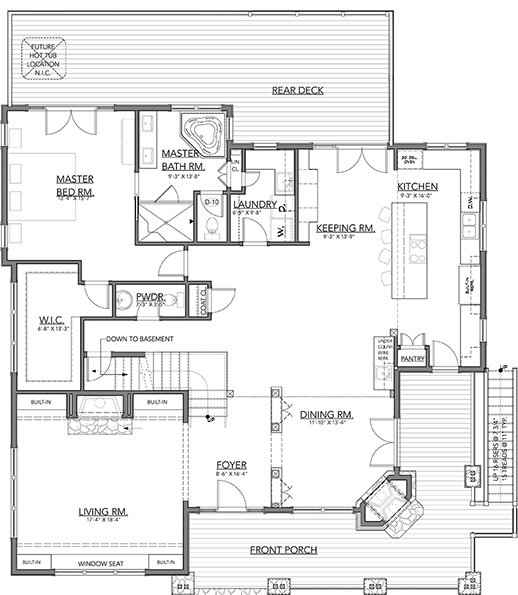

First floor plan
Rfd the cheshire first floor plan c

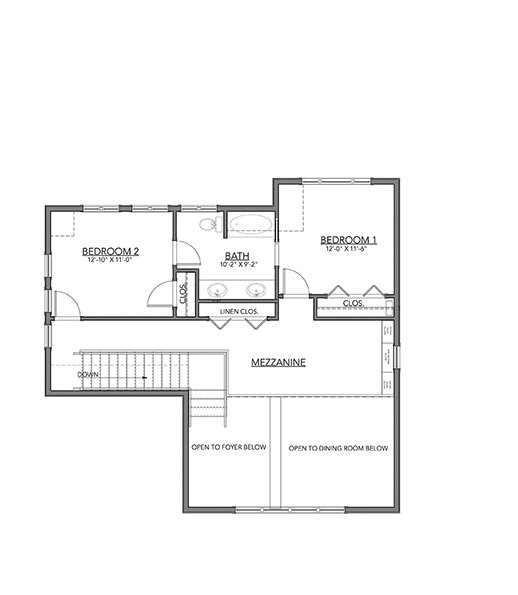

Second floor plan
Rfd the cheshire second floor plan c
Rfd the cheshire basement plan c
The Cheshire
Click to open in new tab
| SPTFWUEN | Retro+Fit Design LLC.
Square footage
First floor 1995
Second floor 669
Total heated 2664
Unfinished space 1914
Width 50' 4"
Depth 50' 10"
Ceiling heights
Main features
Stories 2
Bedroom 3
Bathrooms 2.5
Garage spaces 2

The Cheshire is sold in “As Is” condition and in PDF format only.

If you purchase this plan, and you wish to have any plan modifications completed, you would be responsible for modifying this plan with the assistance of your local designer / architect.

The house depth is 51’-10", not including the decks.

This plan has 1914 Sqft unfinished space in basement.

Full specifications and features
Architectural Styles Craftsman
Structure type Single family home
Bedroom Features Buddy bath, Upstairs bedrooms, Main floor master, Walk in closet
Kitchen Features Kitchen island, Walk in pantry
Additional Room Features Storage area, Great/Living room, Unfinished space, Wet bar, Main floor laundry
Garage Features Side entry, Garage under
Outdoor spaces Covered front porch, Covered rear porch, Grill deck sundeck
Lot characteristics Suited for corner lot, Suited for view lot, Suited for sloping lot
What's included?

Cover sheet

An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

Floor plan(s)

Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.

Exterior elevations

Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.

Interior elevations

These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.

Roof plan

Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.

Foundation plan

This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.

Cross-section details

These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
