2331 Sq Ft | 3 Bed | 2 Bath | 2 Story | 2 Garage | dim
Width 42 | Depth 0
|
$ 1000

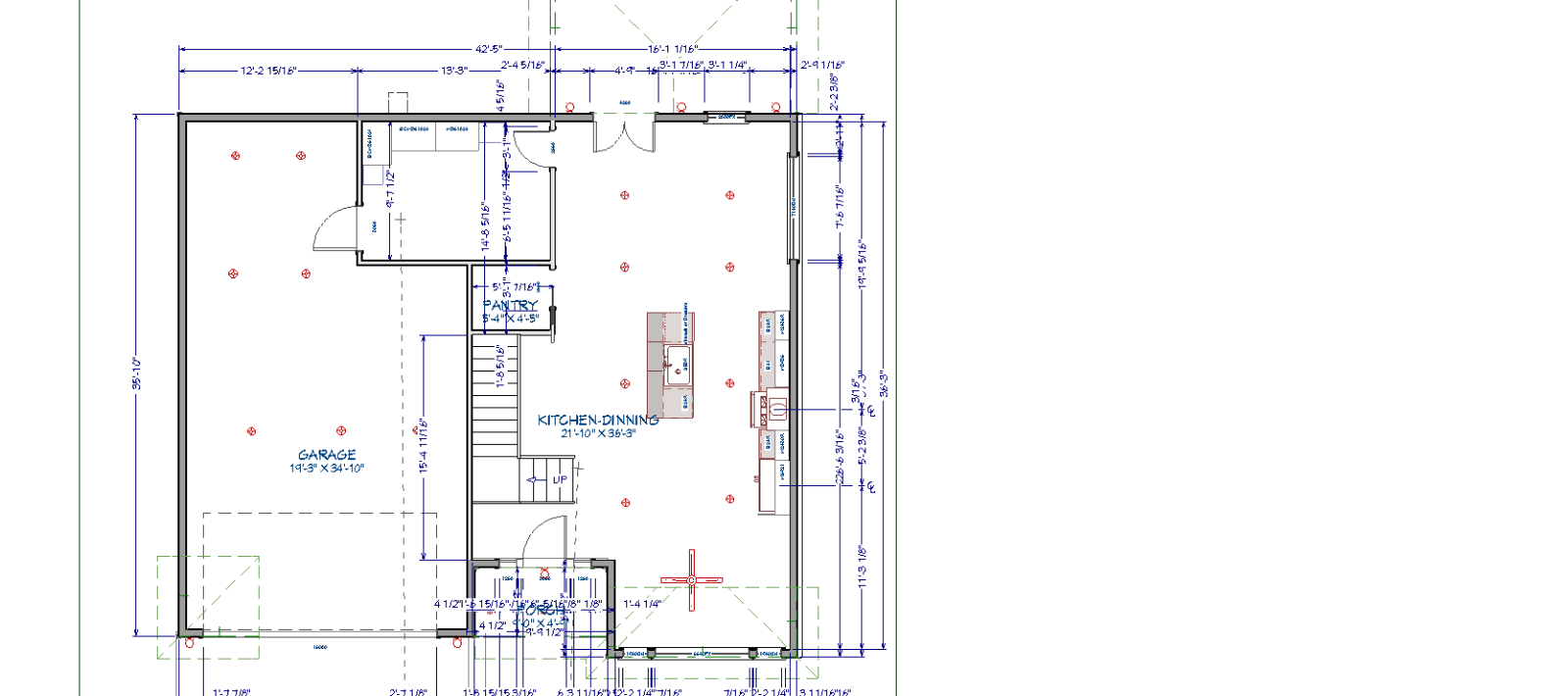

First floor plan
Untitled 1
Second floor plan
Floor 2
Bradshaw
Click to open in new tab
| FMYEDQPJ | ARKATE Architecture and Design
Square footage
First floor 1064
Second floor 1267
Total heated 2331
Garage 658
Dimensions
Width 42' 5"
Depth 0' 4"
Height 18' 0"
Main roof pitch 8/0
Ceiling heights
Main level 10' 0"
2nd level 8' 0"
Main features
Stories 2
Bedroom 3
Bathrooms 2
Garage spaces 2

Full specifications and features
Architectural Styles Beach, Low country, Modern, Classical, Craftsman, Shingle
Structure type Single family home, Multi family
Bedroom Features Buddy bath, Split bedrooms, Upstairs bedrooms, Upstairs master, Walk in closet, Main floor guestroom
Kitchen Features Kitchen island, Butlers pantry
Additional Room Features Finished basement, Great/Living room, Upstairs laundry
Garage Features Front entry, Garage under
Outdoor spaces Covered rear porch
Lot characteristics
What's included?

Cover sheet

An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.


Floor plan(s)

Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.


Exterior elevations

Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.


Interior elevations

These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.


Roof plan

Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.


Foundation plan

This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.


Cross-section details

These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
