Swallowtail Architecture
2258 Sq Ft | 3 Bed | 4+ Bath | 1 Story | 2 Garage | dim
Width 40 | Depth 68
$ 1800

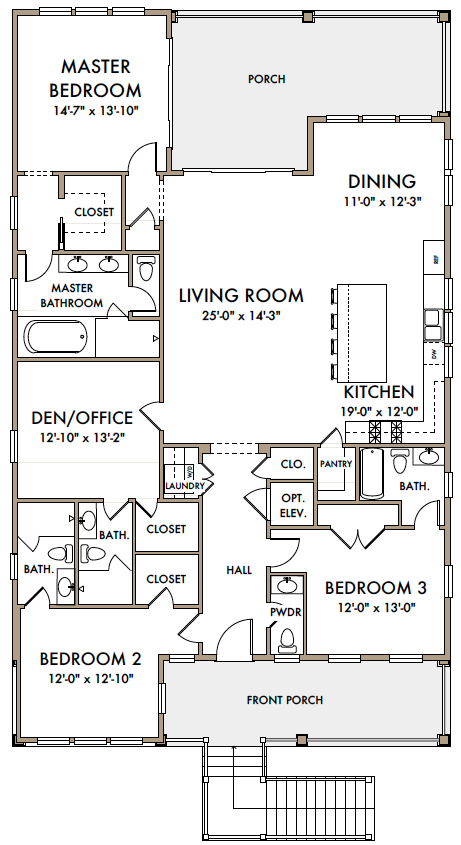

First floor plan
Screen shot 2017 07 08 at 18 39 55
Click to open in new tab
| CGRZYEJA | Swallowtail Architecture
Square footage
First floor 2258
Total heated 2258
Garage 2258
Width 40' 1"
Depth 68' 3"
Ceiling heights
Main level 10' 0"
Basement level 8' 0"
Main features
Stories 1
Bedroom 3
Bathrooms 4+
Garage spaces 2

Full specifications and features
Architectural Styles Beach, Southern
Structure type Single family home
Bedroom Features Main floor master, Walk in closet
Kitchen Features Kitchen island, Walk in pantry
Additional Room Features Den/Office/Study, Main floor laundry
Garage Features Front entry, Garage under
Outdoor spaces Covered front porch, Covered rear porch
Lot characteristics Suited for view lot
What's included?

Cover sheet

An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

Floor plan(s)

Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.

Exterior elevations

Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.

Interior elevations

These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.

Roof plan

Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.

Foundation plan

This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.

Cross-section details

These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.

Screen shot 2017 06 29 at 2.28.00 pm

Swallowtail Architecture

For architect Rachel Burton, each home is a beautiful gem. Each needs the perfect setting and fit, both for the owners and for the landscape on which the home sits. Rachel named her practice Swallowtail Architecture after the classic swallowtail joint, a precise and beautiful coming together of two pieces of wood, another kind of perfect fit. She has more than 30 years of experience on an array of projects. Rachel specializes in residential architecture on Sullivan’s Island, Kiawah Island, Summerville and in the Lowcountry around Charleston, South Carolina.

Learn more and connect with the designer at Swallowtail Architecture Storefront
