| First floor | 2908 |
| Total heated | 2908 |
| Width | 91' 1" |
| Depth | 118' 3" |
| Height | 24' 7" |
| Main roof pitch | 7/12 |
| Main level | 9' 0" |
| Stories | 1 |
| Bedroom | 4 |
| Bathrooms | 3 |
| Garage spaces | 4 |
This house plan is a spin off from BRN 08 re-designed with a 4th bedroom, larger kitchen and family room etc.
This ranch style house has a large wrap around front porch giving you 180 degree view, breezeway between house, two covered carports in front of both garage entries, rear port for vehicles, trailers etc. kitchen, family room has a wide open feel with open vaulted ceiling and exposed wood beams, large stone raised fireplace, skylights and large upper windows that tower over the family room, allowing more natural lighting, large master bedroom, master shower, his & her closets with an additional storage or common closet, nice size utility/mud room and a large large garage/shop in rear.
Please see BRN 08 for the 3 bedroom version.
| Architectural Styles | Ranch, Country, Farmhouse |
| Structure type | |
| Bedroom Features | Main floor master, Walk in closet |
| Kitchen Features | Breakfast nook, Kitchen island, Peninsula eating bar, Walk in pantry, Country kitchen |
| Additional Room Features | Mud room, Main floor laundry |
| Garage Features | Carport, Garage under |
| Outdoor spaces | Breezeway, Wrap around porch |
| Lot characteristics |
Set of renderings
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Cover Page
Showing index & 3d drawings of house

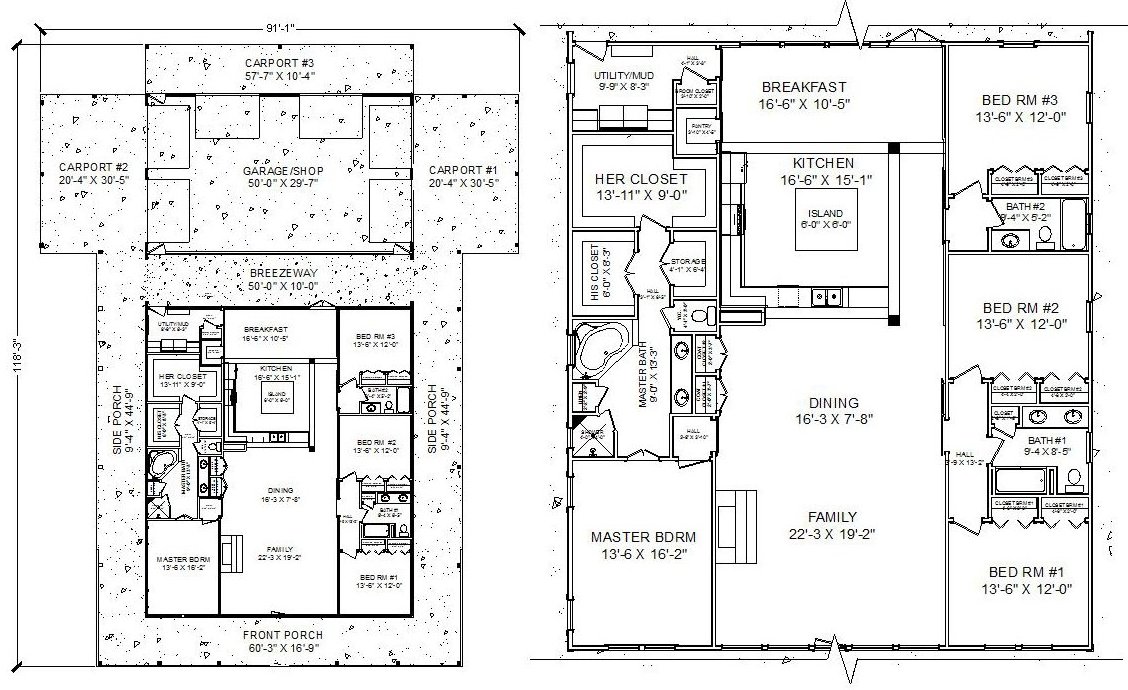

Floor plan(s) (construction)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations (construction)
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations (construction)
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan (construction)
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Cross-section details (construction if required in the plan)
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
Lighting & electrical Plan
Showing lighting & electrical placement.
