| First floor | 2288 |
| Total heated | 2288 |
| Garage | 640 |
| Width | 56' 0" |
| Depth | 72' 0" |
| Main roof pitch | 12/12 |
| Main level | 10' 0" |
| Tray | 10' 8" |
| Stories | 1 |
| Bedroom | 3 |
| Bathrooms | 2 |
| Garage spaces | 2 |
This House Plan features exterior concrete block 8''x16'' or 2''x8'' frame (can be modified), interior walls 2''x4'' frame, 8' high doors, standard sized cabinets. All standard sized windows and doors are placed in order to eliminate cuts in concrete block.
This floor plan can be modified to fit your needs. Choice of vaulted or tray ceilings and choice of roof pitch. This plan style exterior can be also modified to a modern with flat roof or to any house photo you provide with desired style you wish to achieve! Price for modification ranges from 20$ to 200$ depending on the complexity of the required change. Please contact if you have any questions!
Please note: the plan set is for bidding only.
| Architectural Styles | Contemporary, Cottage, Craftsman, Traditional, Farmhouse, Shingle |
| Structure type | Single family home |
| Bedroom Features | Buddy bath, Split bedrooms, Main floor master, Walk in closet, Main floor guestroom |
| Kitchen Features | Kitchen island, Peninsula eating bar, Walk in pantry |
| Additional Room Features | Den/Office/Study, Great/Living room, Main floor laundry |
| Garage Features | Side entry, Oversized |
| Outdoor spaces | Outdoor kitchen, Covered front porch, Covered rear porch |
| Lot characteristics | Suited for corner lot, Suited for view lot |
Renderings
An artist's rendering of the exterior of the house and perspective view shows you approximately how the house will look when it’s constructed and landscaped.

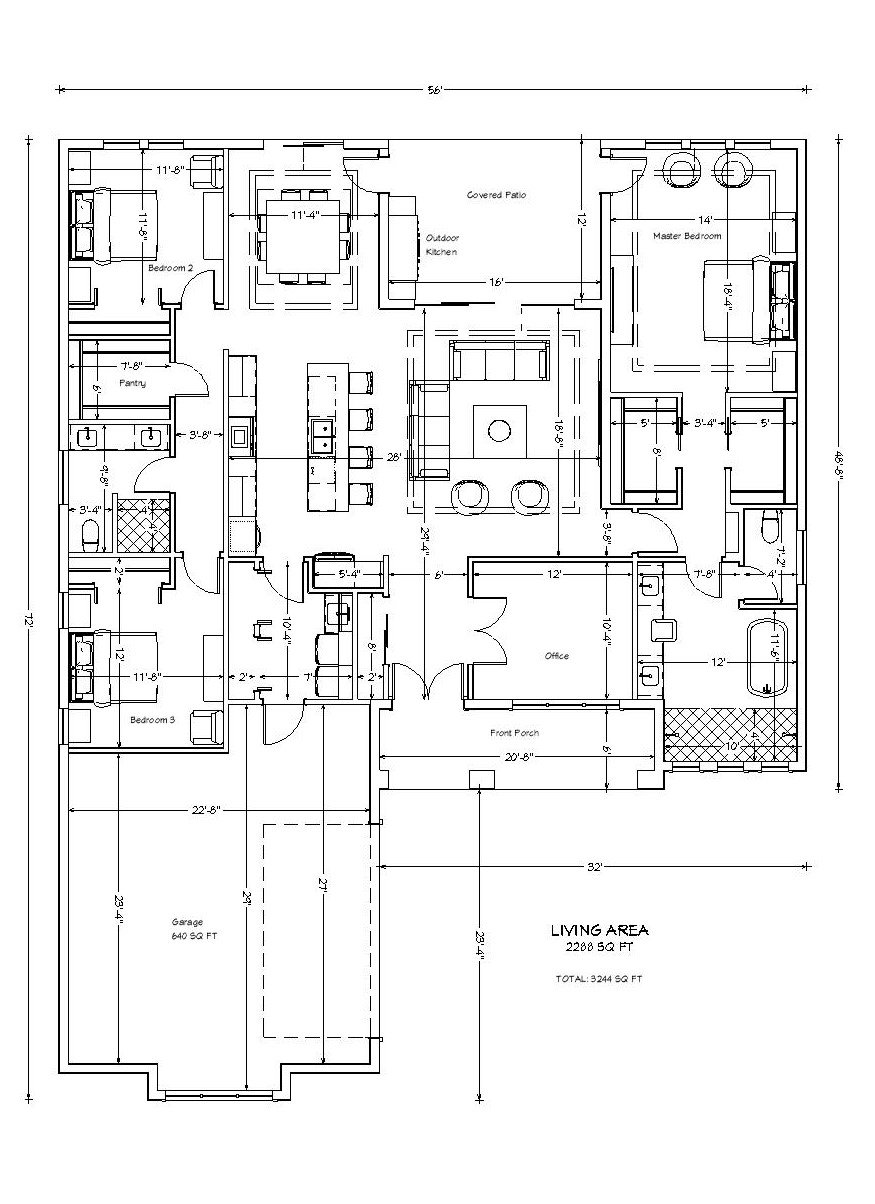

Floor plan(s)
Set of detailed plans with interior and exterior dimensions for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included cabinets in kitchen, bathrooms and laundry rooms and suggested locations for your kitchen appliances and plumbing fixtures.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including suggested exterior materials and measurements of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Electrical Plan
Shows suggested location of electrical fixtures for your home.
Sections
Wall sections that shows details where needed can be provided at your request only.
Please note: The plan set is for bidding purposes only. Not a legal building set for construction. It will require your local architect/builder adjustments according to your local building codes and making blueprints for permit.
