Ocean View
Ocean View
| Custom Homes Design
Custom Homes Design
8062 Sq Ft | 5+ Bed | 4+ Bath | 3+ Story | 2 Garage | dim
Width 104 | Depth 62
|
$ 795
First floor plan
8062 1st floor plan
Second floor plan
8062 2nd floor plan

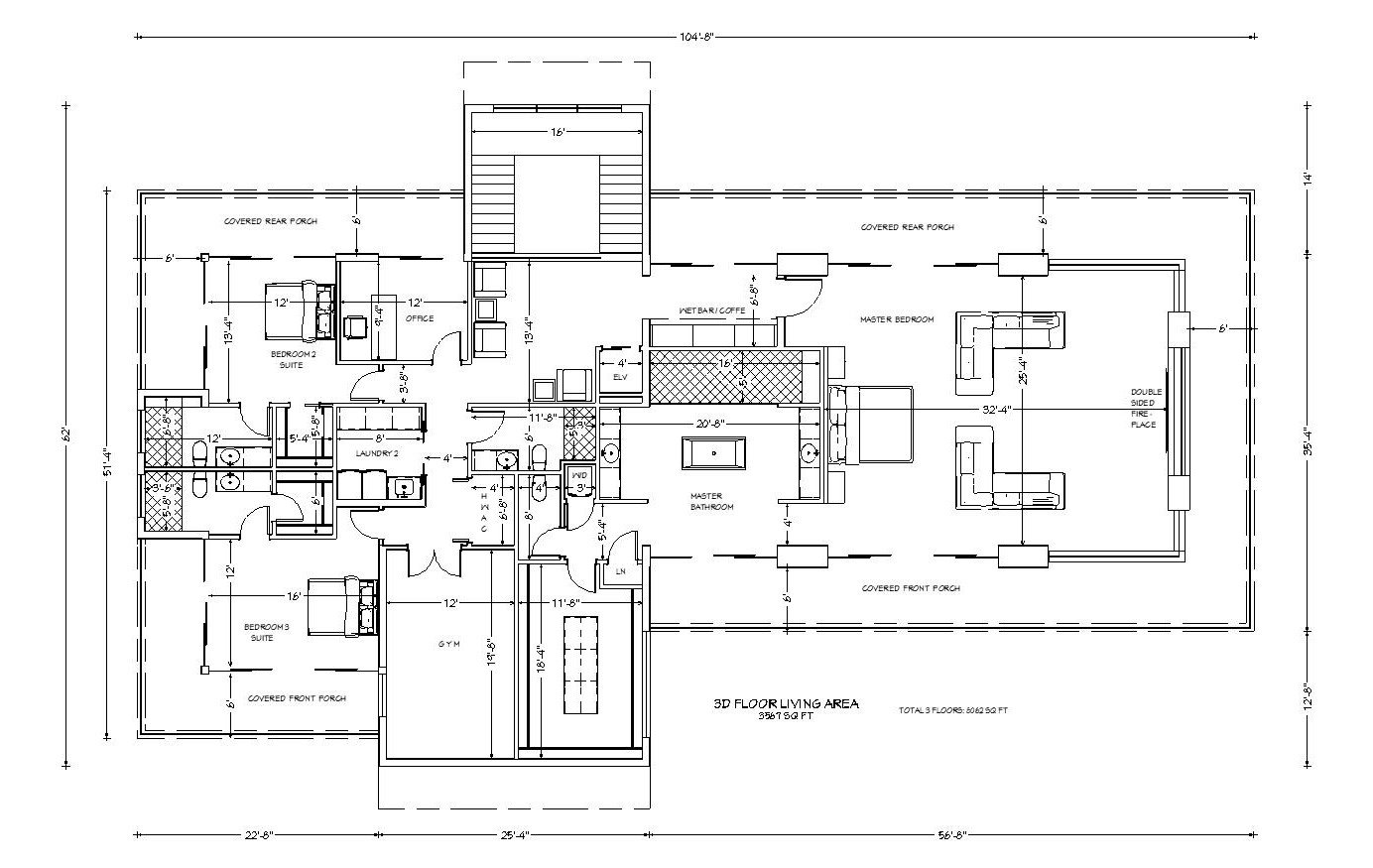

3d floor plan
8062 3d floor plan
Ocean View
Click to open in new tab
| CHFGUQNV | Custom Homes Design
Square footage
First floor 1036
Second floor 3459
Third floor 3567
Total heated 8062
Garage 673
Dimensions
Width 104' 8"
Depth 62' 0"
Height 38' 0"
Ceiling heights
Main level 10' 0"
2nd level 10' 0"
3d level 10' 0"
Main features
Stories 3+
Bedroom 5+
Bathrooms 4+
Garage spaces 2

This magnificent House Plan offers 5 Bedrooms Suites including amazing Large Master Bedroom with opening on 3 sides to take full advantage of the views!

Each of 4 bedrooms Suites opens to 2 sides. 10' Sliding doors create expensive indoor/outdoor living experience! Convenient laundry rooms on 2nd and 3d floors where all bedrooms are. 7,5 bathrooms. Main level includes 2 car garage and carport, covered pool that overspills into the main pool, covered living and dining area 2 outdoor covered kitchens and bar. Each level has oversized indoor-outdoor double-sided fireplaces and wrapped around covered porches. The main kitchen includes 2 large islands for cooking and eating, butler's kitchen/pantry. Additional rooms/ ares: Wine Cellar, Office, Media/Theater room with wet bar, home GYM, sitting area with wet bar and Game area.

Exterior concrete block 8''x16'' or 2''x8'' frame (can be modified), interior walls 2''x4'' frame, standard sized windows and doors, standard sized cabinets. 10' high sliding doors and front doors, 8' high interior doors. All windows and doors are placed in order to eliminate cuts in concrete block.

This floor plan can be modified to fit your needs. Please contact if you have any questions!

Please note: the plan set is for bidding only.


Full specifications and features
Architectural Styles Modern, Contemporary, Southern
Structure type Single family home
Bedroom Features Buddy bath, Split bedrooms, Guest suite, Upstairs bedrooms, In law suite, Upstairs master, Walk in closet
Kitchen Features Kitchen island, Butlers pantry, Peninsula eating bar, Kitchenette wet bar, Walk in pantry
Additional Room Features Den/Office/Study, Media room, Exercise room, Finished third floor, Great/Living room, Hobby/Rec room, Upstairs laundry, Wet bar, Main floor laundry, Wine cellar, Master sitting area
Garage Features Side entry, Oversized
Outdoor spaces Breezeway, Loft balcony, Courtyard, Outdoor kitchen, Covered front porch, Covered rear porch, Wrap around porch
Lot characteristics Suited for corner lot, Suited for view lot
What's included?

Renderings

An artist's rendering of the exterior of the house and perspective view shows you approximately how the house will look when it’s constructed and landscaped.


Floor plan(s)

Set of detailed plans with interior and exterior dimensions for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included cabinets in kitchen, bathrooms and laundry rooms and suggested locations for your kitchen appliances and plumbing fixtures.


Exterior elevations

Front, rear, right and left side exterior elevations are shown including suggested exterior materials and measurements of your home.


Roof plan

Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.


Electrical Plan

Shows suggested location of electrical fixtures for your home.


Sections

Wall sections that shows details where needed can be provided at your request only.



Please note: The plan set is for bidding purposes only.  Not a legal building set for construction. It will require your local architect/builder adjustments according to your local building codes and making blueprints for permit.
