| First floor | 2408 |
| Second floor | 1628 |
| Total heated | 4036 |
| Width | 60' 10" |
| Depth | 59' 8" |
| Height | 31' 8" |
| Main roof pitch | 8/12 |
| Main level | 9' 10" |
| 2nd level | 15' 11" |
| Stories | 2 |
| Bedroom | 4 |
| Bathrooms | 4+ |
| Garage spaces | 0 |
KAN VELA - Luxury Pool Villa
Where Life Pauses, and the Soul Renews.
KAN VELA Luxury Pool Villa is a sanctuary thoughtfully designed for those seeking more than a home—a place where time slows, nature embraces, and life finds its balance once again.
Surrounded by tropical beauty and crafted in harmony with its environment, every space invites you to reconnect with what truly matters: peace, presence, and meaningful moments.
More than a luxury retreat, KAN VELA is a place to rediscover the art of living well.
A new beginning, where every day feels like a return to yourself.
The project comes with a complete set of architectural drawings, ready for construction.
❣️Ideal For
• Large-Scale Permanent Living Environments
• Vacation homes or weekend retreats
• Resort or rental investment (Airbnb-ready concept)
• Nature-inspired living
• Diverse Residential Experiences Across Coastal, Hillside, and Forest Settings
Design Highlights
• Inspired by nature’s forms and materials, designed to restore balance, tranquillity, and well-being.
• A distinctive curved roof inspired by nature, creating warmth, comfort, and a unique architectural identity.
• A harmonious blend of architecture, beauty, comfort, and character.
• A romantic Bali-inspired Luxury Pool Villa, where simplicity meets refined luxury.
• Expansive terraces seamlessly connect the villa, pool, forest, and sea.
• Designed to offer a new experience of living—closer to nature, closer to yourself.
• 4 bedrooms, accompanied by a walk-in closet designed for comfort and privacy
• 5 bathrooms
Project Information
• Interior area: 4,036.46 sq.ft. (approx. 375.00 sq.m.)
• Building size: 59.71 ft × 60.85 ft (18.20 m × 18.55 m)
• Outdoor Deck Area: 602.77 sq.ft. (approx. 56.00 sq.m.)
• Swimming pool area: 753.47 sq.ft. (approx. 70.00 sq.m.)
• Sunken area: 177.60 sq.ft. (approx. 16.50 sq.m.)
• Ridge height: 31.66 ft (9.65 m)
What You Will Receive
• PDF File for Construction (Total: 58 sheets)
• CAD File for Construction
• PDF File for Exterior Perspective
• PDF File for Interior Perspective
• Sketch up File for 3D model
(Units used in this file are meters and millimetres.)
A complete professional drawing package including:
Architectural Drawings (Full Construction)
• Detailed Floor Plan
• Roof Plan
• 4 Exterior Elevations
• 2 Building Sections
• Bathroom Details
• Door and Window Details
• Pool Details
MEP Drawings (Conceptual)
• Electrical Layout Plan (schematic)
• Air Conditioning Layout Plan (schematic)
• Plumbing Layout Plan (schematic)
• Technical Specifications
Structural Drawings (Full Construction)
• Foundation Plan
• 1st Floor Framing Plan
• 2nd Floor Framing Plan
• Roof Beam Framing Plan
• Steel Roof Framing Plan
• Section 1,2
• 1st Floor Slab Reinforcement Plan
• Reinforcement Details for Footings, Beams, Columns, and Slabs
• Reinforcement Details for Beam and Stair
• General Details
Construction-Ready Documentation
This drawing package can be used for:
• Construction cost estimation
• Contractor bidding and project planning
• Coordination with local engineers, consultants, and builders
Technical Notes
To comply with local building regulations, certain components must be completed or verified by licensed professionals in your area:
• Structural engineering calculations and certification
• HVAC design and sizing
• Plumbing system calculations and routing
• Site plan based on your property survey
• Energy compliance reports (where required)
These requirements vary depending on location, climate, and local building codes and are standard practice in most jurisdictions worldwide.
Building Code Compliance
All construction must comply with local building regulations and may require review, adaptation, or approval by licensed professionals. Structural calculations, engineering modifications, permit applications, and code compliance remain the responsibility of the buyer and their selected consultants.
Contact
Important Notice
• This is a digital product. No physical items will be shipped.
• The drawings are intended for professional construction use.
• Building permit requirements vary by country, state, and municipality.
⚖️Copyright
This design is copyrighted by Wicch Studio and is licensed for personal use only. Redistribution, resale, reproduction, or commercial reuse of the drawings is strictly prohibited.
Delivery
Instant digital download. Files will be available immediately after payment confirmation.
Refund Policy
Due to the nature of digital products, returns, exchanges, and cancellations are not accepted. Please contact us if you experience any issues with your order.
| Architectural Styles | Beach, Modern, Contemporary |
| Structure type | Single family home |
| Bedroom Features | Split bedrooms, Upstairs bedrooms, In law suite, Upstairs master, Walk in closet, Main floor guestroom, Two master suites |
| Kitchen Features | Kitchen island, Butlers pantry |
| Additional Room Features | Great/Living room, Wet bar, Master sitting area |
| Garage Features | |
| Outdoor spaces | Loft balcony, Covered front porch, Grill deck sundeck |
| Lot characteristics | Suited for corner lot, Suited for view lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)

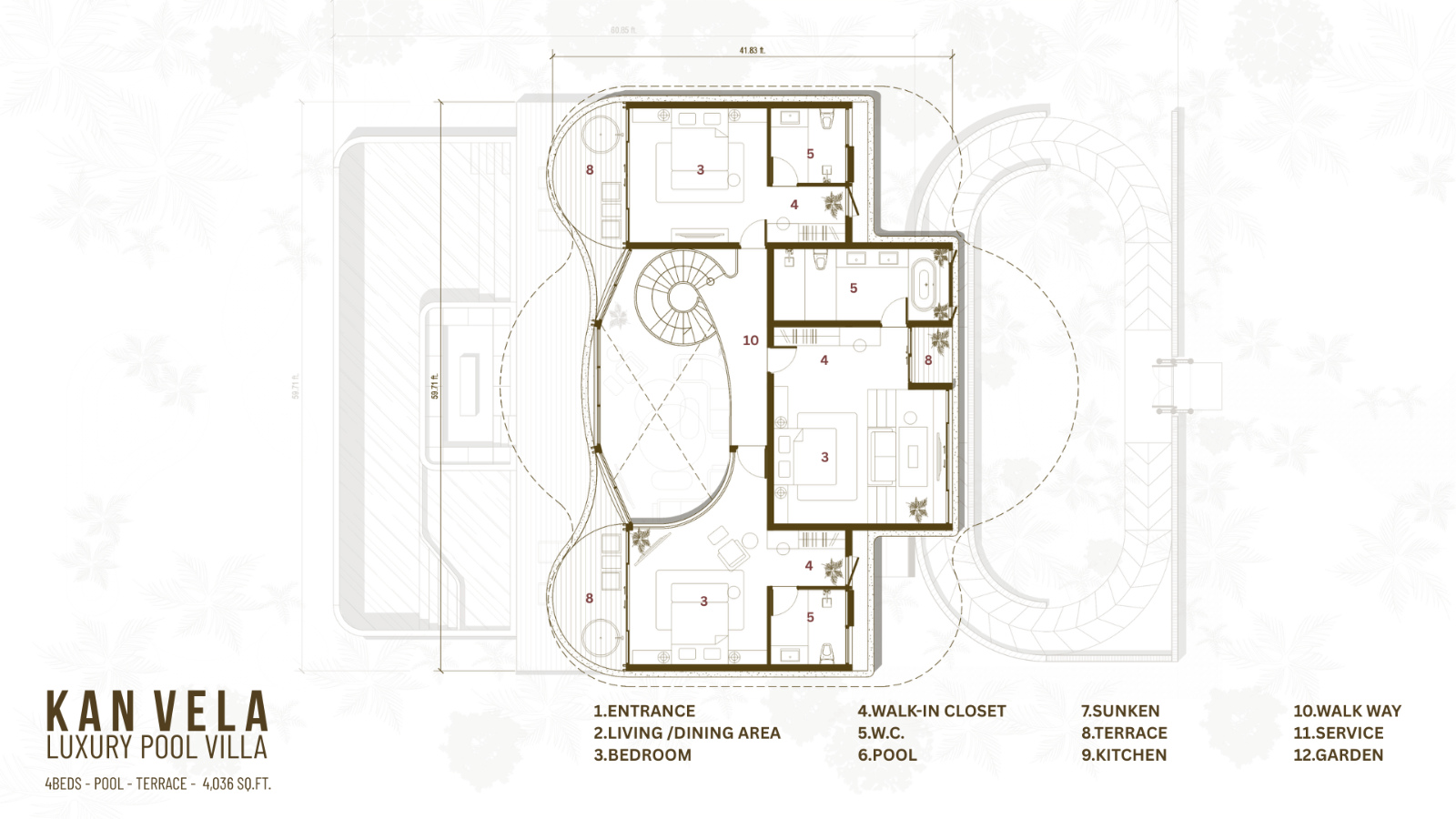

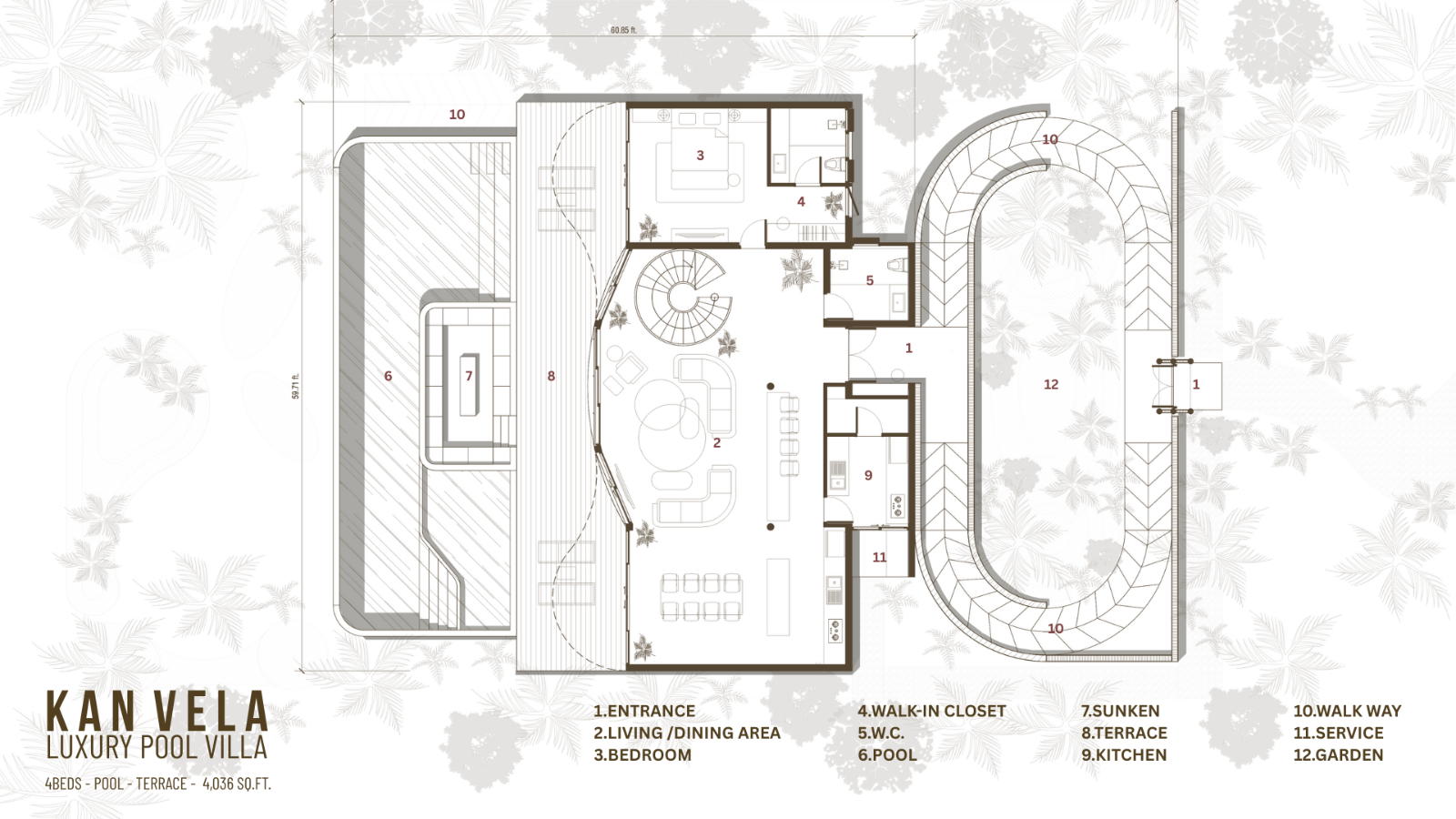

Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
