Catamount Pond
Catamount Pond
| David Neff Architect
David Neff Architect
4966 Sq Ft | 5+ Bed | 4+ Bath | 2 Story | 2 Garage | dim
Width 66 | Depth 90
|
$ 4966
First floor plan
Shingle style floor plan ell1 first
Second floor plan
Catamount second floor
Basement
Ell1 basement

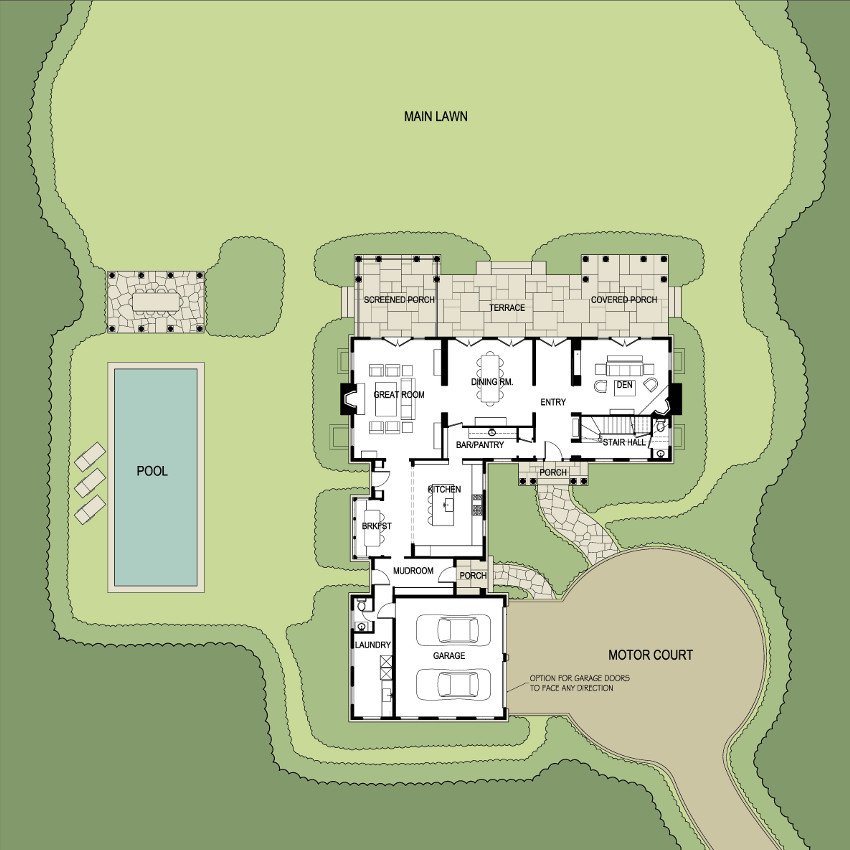

Site Plan
Shingle style home plan ell1 site
Catamount Pond
Click to open in new tab
| FYDQZPUK | David Neff Architect
Square footage
First floor 2271
Second floor 2695
Total heated 4966
Garage 483
Unfinished space 1275
Dimensions
Width 66' 0"
Depth 90' 0"
Height 33' 0"
Ceiling heights
Main level 10' 3"
2nd level 9' 0"
Basement level 9' 0"
Main features
Stories 2
Bedroom 5+
Bathrooms 4+
Garage spaces 2

In classic shingle style fashion, Catamount Pond flows outward into a series of garden rooms creating seamless indoor/outdoor living. Approaching the house, the first outdoor room one encounters is a welcoming courtyard space set in the nook of the L-shaped plan. Upon entering the home, one discovers that the entry hall, great room, dining room, and den all connect directly to a large rear terrace that has a sunny central section flanked by two covered porches. The kitchen and breakfast bay open to a side yard which could feature a small garden or, in wider lots, could be the perfect spot for a swimming pool, play area, or tennis court.

On the opposite side of the house, there’s even an opportunity for an outdoor fireplace terrace that could serve as a private retreat with views to the rear lawn. The garage at Catamount Pond can be adjusted to face in any direction and can be upgraded to three cars.

1st Floor Plan: Like a true shingle style house, Catamount Pond has a layout which is both modern in its open flow and traditional in its strongly defined rooms. The primary rooms have french doors with transoms and huge 7′-6″ tall windows that fill the spaces with natural light and encourage easy flow to outdoor rooms. First floor ceilings are an airy 10′-3″ high which, along with the oversized windows, will give your new home a truly stately feel.

The large great room forms the heart of Catamount Pond and, through wide openings, connects to the kitchen, formal dining room, and a covered terrace. Across the front hall, a cozy den features a fireplace and its own covered terrace. Back towards the street, a spacious mudroom and laundry room ensure a well-functioning household.

One or both of the covered porch can be outfitted with removable glass or screen panels or with motorized screens.

2nd Floor Plan: Catamount Pond has large windows and 9′-0″ ceilings throughout the second floor. As an option, any space can be made taller with a cathedral ceiling. The large master bedroom has a fireplace and walk-out deck. It also features a bathroom with both tub and shower and two large walk-in closets, one of which has a window.

There are four additional bedroom all of which are generously scaled. Two of those bedrooms have en suite baths and one has its own large deck. The remaining two bedrooms have easy access to a shared bath. Either of these bedrooms could be used as a large home office.

Basement Plan: Catamount Pond is shown here with 1275 square feet of finished space including a large playroom, a bar, an exercise room, a bathroom, and an optional fireplace. Full basements on this website are detailed with numerous full height windows, filling the space with natural light and making it feel anything but underground. Catamount Pond is shown with four large basement windows and additional windows are possible if more finished space is desired. A walk-out basement with french doors is also possible for sloping sites.

Full specifications and features
Architectural Styles Beach, Traditional
Structure type Single family home
Bedroom Features Split bedrooms, Upstairs bedrooms, Upstairs master, Walk in closet
Kitchen Features Breakfast nook, Kitchen island, Butlers pantry
Additional Room Features Den/Office/Study, Mud room, Storage area, Great/Living room, Unfinished space, Wet bar, Main floor laundry
Garage Features Side entry
Outdoor spaces Loft balcony, Screened porch, Covered rear porch, Grill deck sundeck
Lot characteristics Suited for view lot
What's included?

A basic plan set includes: Everything necessary for a contractor to build the exterior shell of your home. Unlike many floorplan sites, this includes blow-up details of every exterior condition so nothing is left to the builder’s interpretation.


A basic set includes: foundation plan, first floor plan, second floor plan, roof plan, framing plans, exterior elevations, building sections, and exterior details.


Unlike almost any other floor plan site, interior detail drawings are also available. These are priced on an a la carte basis as shown in the purchase section of each home. Interior offerings include electrical plans, kitchen elevations, and typical interior trim details.


Drawings are laid out on 24×36 pages. Plans and exterior elevations are drawn at 1/4″ scale, sections and interiors are 1/2″ scale, and details range from 1 1/2″ scale up to full scale.


PLAN UPGRADES:

INTERIOR PACKAGE: Interior elevations of all rooms (including kitchen cabinet drawings) at 1/2” scale and suggested interior details, some up to full scale, showing all moldings, fireplaces, stairs, built-ins, and paneling. (PDF and/or CAD as selected in base package.)

ELECTRICAL PLANS: 1/4” scale plans of the first & second floors showing lighting, outlet, and switch locations. (PDF and/or CAD as selected in base package.)

STONE FIRST STORY: Alternate elevations & building sections showing stone first-story exterior cladding. (PDF and/or CAD as selected in base package)

BRICK FIRST STORY: Alternate elevations & building sections showing brick first-story exterior cladding. (PDF and/or CAD as selected in base package)
